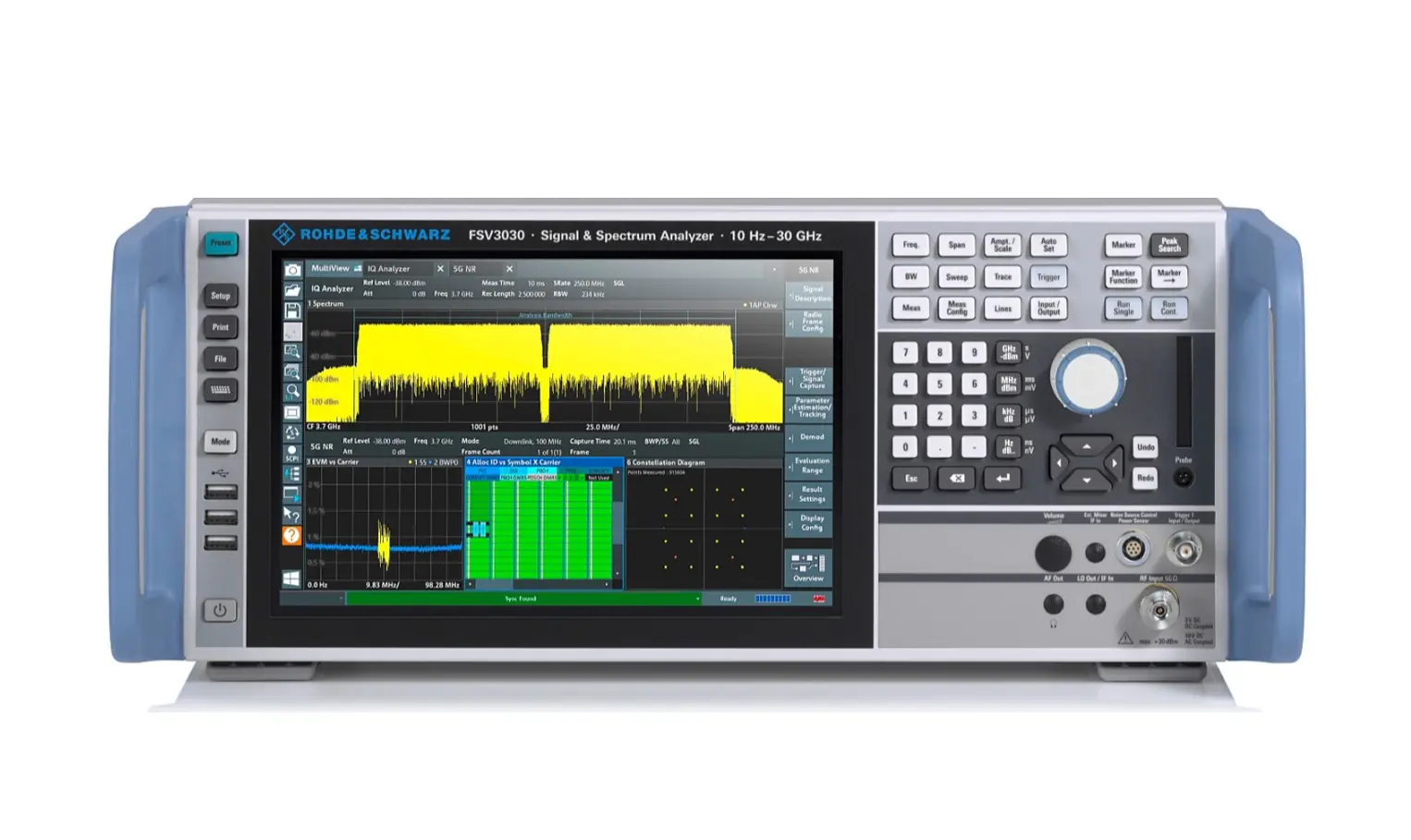

Rohde & Schwarz FSV3000 Signal and Spectrum Analyzer
Request a quote
Rohde & Schwarz FSV3000 signal and spectrum analyzer with 200 MHz analysis bandwidth and native 5G NR support for wireless standards testing.
Product details
| Model | FSV3000 |
| Manufacturer | Rohde & Schwarz |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSV3000 is a signal and spectrum analyzer engineered for high measurement speed and intuitive operation. Its touchscreen interface and automated setup features simplify complex RF measurements in R&D, system testing, verification, and production environments. With up to 200 MHz analysis bandwidth, the FSV3000 handles digital modulation analysis across cellular and wireless standards, including 5G NR.
Key Features
- Frequency range options from 10 Hz to 4 GHz, 7.5 GHz, 13.6 GHz, 30 GHz, or 44 GHz
- Up to 200 MHz analysis bandwidth
- SSB phase noise better than –114 dBc/Hz at 10 kHz offset (1 GHz)
- Multi-touch display with SCPI recorder for test script automation
- Event-based actions for capturing and documenting rare DUT events
- Dedicated 5G NR analysis options with EVM better than 1% for 100 MHz wide carriers at 28 GHz
- Optional 10 Gigabit/s LAN interface for fast I/Q data transfer
- Enhanced computer power option with quad-core CPU for accelerated signal demodulation
Applications
- 5G NR and wireless standard signal analysis in R&D and verification
- Production testing of RF components, modules, and devices
- High-speed spectral measurements and signal demodulation
- Digital modulation analysis for cellular communications
- DUT debugging with rare event capture and documentation
Specifications
| Ready for 5G and other Wireless Standards | The FSV3000 signal and spectrum analyzer is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. With 200 MHz of analysis bandwidth, it can be used to capture two neighboring 5G NR carriers at once. With dedicated options for 5G NR signal analysis, EVM vales better than 1% can be achieved for a 100 MHz wide carrier at 28 GHz. |
| Advanced User Interface | Th FSV3000 excels with fast access to measurement results thanks to its simple and fast setup. The FSV3000 Features: Multi Touch Display SCPI recorder for easy test program development Event based actions for debugging rare DUT events Smart signal generator control through direct access to the signal generator setup |
| High Speed Analysis | Automated production of components, modules and devices requires spectral measurements as well as signal demodulation. The FSV3000 signal and spectrum analyzer performs even complex measurement scenarios in a minimum amount of time. The enhanced computer power option provides a quad core CPU to accelerate digital signal demodulation. It also adds an internal PCle 3.0 bus system for fastest transfer of measurement data. In cloud based test systems the optional 10Gbit/s LAN interface enables fast I/Q data transfer towards the network side. |
