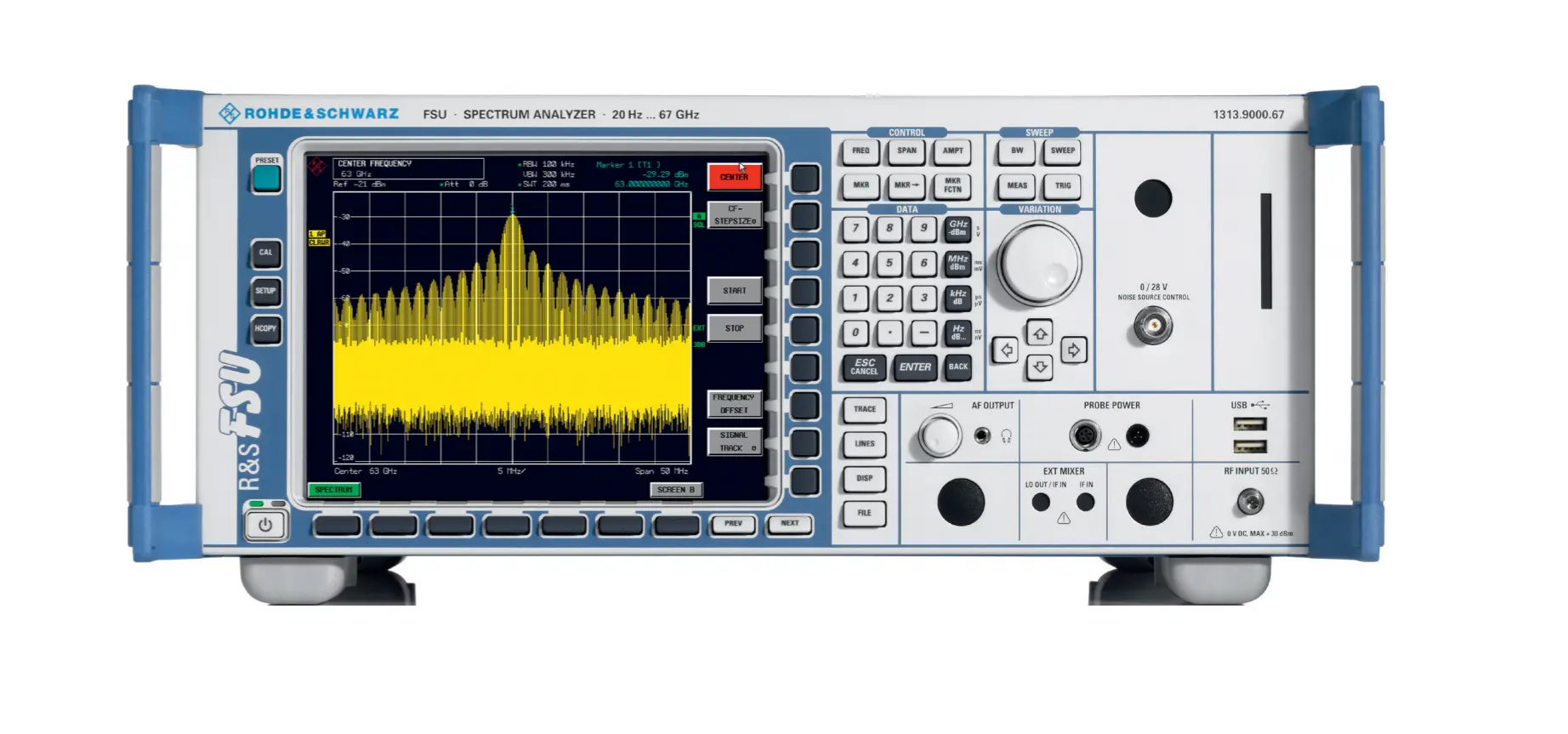

Rohde & Schwarz FSU67 Spectrum Analyzer

Overview

The Rohde & Schwarz FSU67 is a high-performance spectrum analyzer for RF and microwave analysis in aerospace, defense, and general applications up to 67 GHz. With outstanding phase noise performance, exceptional dynamic range, and high measurement accuracy, it is ideal for demanding signal analysis, RADAR development, and production testing.

Key Features

• Direct frequency range up to 67 GHz; expandable to 110 GHz with external mixers
• Third-order intercept (TOI) > 20 dBm, typical +25 dBm
• 1 dB compression point: +13 dBm at 0 dB RF attenuation
• Displayed average noise level: -152 dBm at 1 GHz, -142 dBm at 40 GHz (1 Hz BW)
• Phase noise: typical -133 dBc (1 Hz) at 640 MHz in 10 kHz from carrier
• Full choice of trace detectors: Max Peak, Min Peak, Auto Peak, Sample, RMS, Average, Quasi Peak, CISPR-AV, CISPR-RMS
• Versatile resolution filters with FFT capability (1 Hz to 30 kHz)
• Noise correction functionality
• High measurement speed: up to 70 measurements/s in zero span via IEC/IEEE bus

Applications

• RF and microwave signal analysis for aerospace and defense testing
• Base station development with wide dynamic range
• RADAR development and spurious emission detection
• Phase noise characterization in sensitive applications
• Production testing with high throughput

Included Accessories

• Power cable
• Printed quick start guide
• CD-ROM with operating manual and service manual
