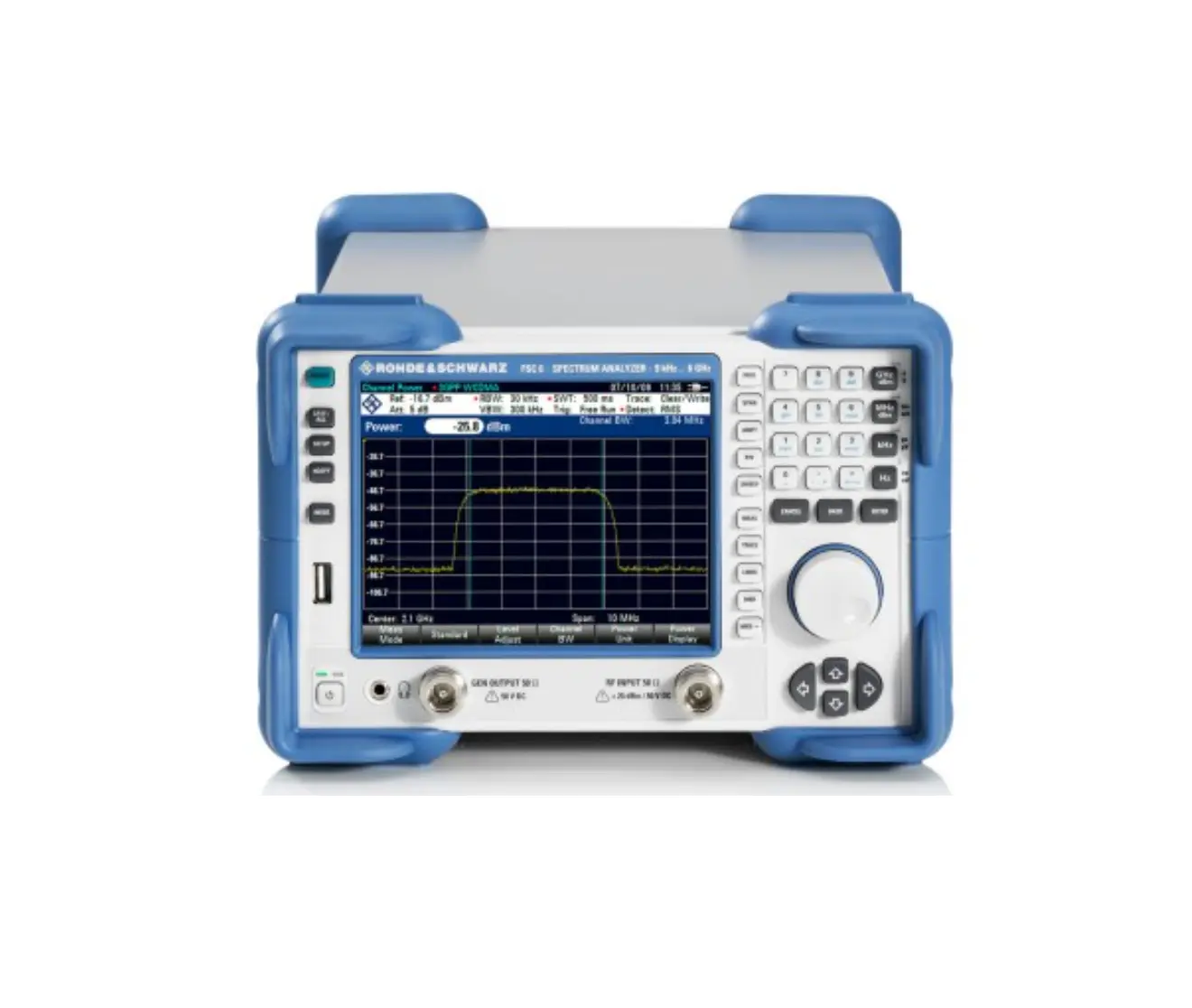

Rohde & Schwarz FSC6 Spectrum Analyzer with Tracking Generator

Overview

The Rohde & Schwarz FSC with integrated tracking generator is a compact, cost-efficient spectrum analyzer combining measurement and stimulus capabilities for comprehensive RF testing. Designed for development, production testing, maintenance, and training, it delivers excellent RF characteristics with high measurement accuracy and versatile signal generation.

Key Features

• Frequency range 9 kHz to 6 GHz
• Resolution bandwidths 10 Hz to 3 MHz
• High sensitivity: less than –141 dBm (1 Hz), or less than –161 dBm with optional preamplifier
• High third-order intercept: greater than 10 dBm, typically 15 dBm
• Low measurement uncertainty: less than 1 dB
• Internal tracking generator for scalar transmission measurements
• Frequency counter with 0.1 Hz resolution
• Compact design fits in minimal bench space
• Low power consumption: 12 W

Measurement Functions

• Scalar transmission measurement for cables, filters, and amplifiers
• Noise marker for 1 Hz referenced noise power determination
• Limit line monitoring (pass/fail function) for compliance verification
• AM modulation depth measurement
• Harmonics and total harmonic distortion measurement
• AM/FM audio demodulator with built-in speaker and headphone output
• Field-strength measurements with antenna factor compensation
• Power measurement on pulsed signals with GSM and EDGE presets
• Adjacent channel power ratio (ACLR) measurement

Applications

• RF product development and component testing
• Scalar measurements of transmission characteristics
• Filter and amplifier characterization
• Production quality control and verification
• Service and maintenance applications
• RF professional training

Included Accessories

• Power cable
• USB cable for PC connection
• Quick start guide
• CD-ROM with operating and service manuals
