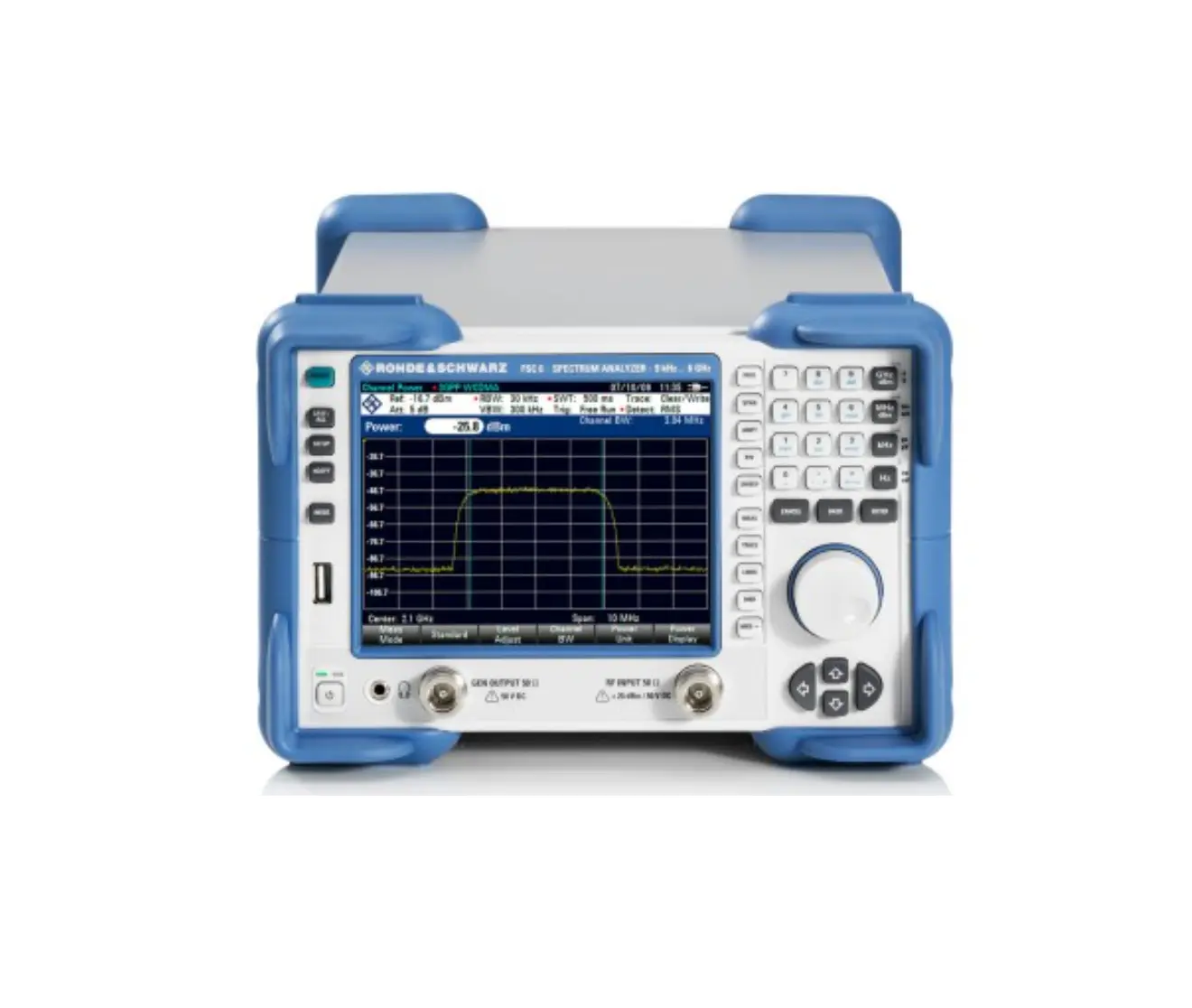

Rohde & Schwarz FSC6 Spectrum Analyzer

Overview

The Rohde & Schwarz FSC is a compact, cost-efficient spectrum analyzer delivering essential features for RF development, production testing, maintenance, and professional training. With excellent RF characteristics and high measurement accuracy, the FSC provides reliable and reproducible results across diverse test scenarios.

Key Features

• Frequency range 9 kHz to 6 GHz
• Resolution bandwidths 10 Hz to 3 MHz
• High sensitivity: less than –141 dBm (1 Hz), or less than –161 dBm with optional preamplifier
• High third-order intercept: greater than 10 dBm, typically 15 dBm
• Low measurement uncertainty: less than 1 dB
• Frequency counter with 0.1 Hz resolution
• Compact design fits in minimal bench space
• Low power consumption: 12 W

Measurement Functions

• Noise marker for 1 Hz referenced noise power determination
• Limit line monitoring (pass/fail function) for compliance verification
• AM modulation depth measurement
• Harmonics and total harmonic distortion measurement
• AM/FM audio demodulator with built-in speaker and headphone output
• Field-strength measurements with antenna factor compensation
• Power measurement on pulsed signals with GSM and EDGE presets
• Adjacent channel power ratio (ACLR) measurement

Applications

• RF product development and testing
• Production quality control and verification
• Service and maintenance applications
• RF professional training
• EMC emissions testing with optional near-field probe set

Included Accessories

• Power cable
• USB cable for PC connection
• Quick start guide
• CD-ROM with operating and service manuals
