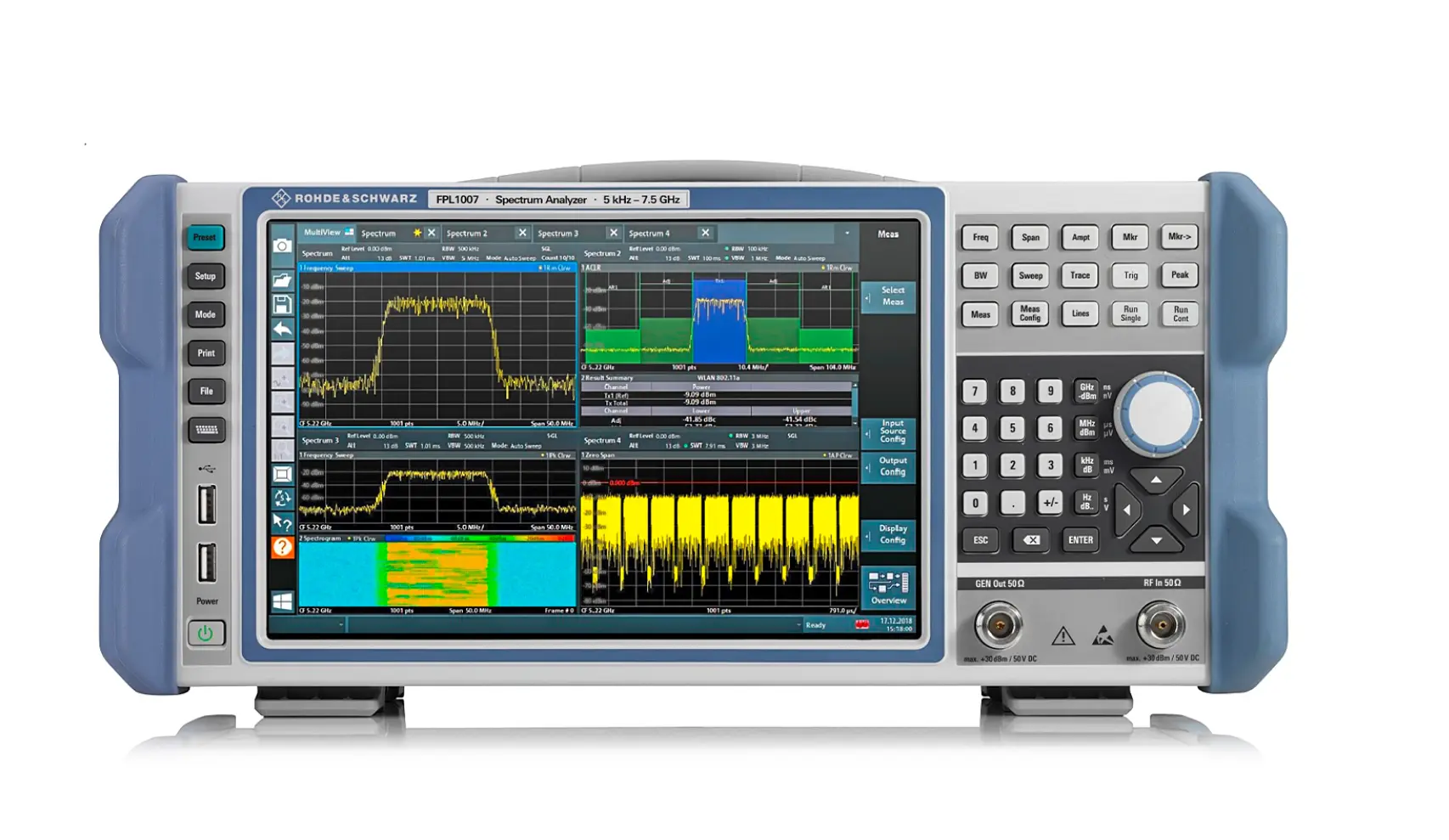

Rohde & Schwarz FPL1026 Spectrum Analyzer
Request a quote
Rohde & Schwarz FPL1026 is a portable spectrum analyzer with 5 kHz to 26.5 GHz frequency range, –163 dBm DANL with preamplifier, and up to 40 MHz analysis bandwidth.
Product details
| Model | FPL1026 (1304.0004.26) |
| Manufacturer | Rohde & Schwarz |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FPL1026 is an essential instrument for RF laboratories, serving as a comprehensive solution for spectrum analysis, power measurement, and signal analysis. This portable spectrum analyzer covers frequencies from 5 kHz to 26.5 GHz with exceptional phase noise performance and sensitivity, making it suitable for research, education, maintenance, and production testing.
Key Features
- Frequency range 5 kHz to 26.5 GHz
- SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
- DANL with preamplifier: typ. –163 dBm/Hz from 10 MHz to 2 GHz
- 40 MHz analysis bandwidth (optional)
- 10.1 inch touchscreen with 1280 x 800 pixel resolution
- Portable design: 6 kg weight with carrying handle
- Optional internal lithium-ion battery for 3+ hours operation
- Multiple measurement capabilities: spectrum analysis, power meter, modulation analysis
Applications
- RF laboratory measurements and signal analysis
- Research and education
- Service and maintenance
- EMI debugging and compliance testing
- IoT and wireless device R&D
- Production testing and verification
Included Accessories
- Power cable
- Quick start guide
Specifications
| FPL1026 | 1304.0004.265 kHz - 26.5 GHz< –105 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) < –163 dBm/Hz40 MHz (FPL1-B40) YIG Bypass (FPL1-B41) Signal and Spectrum Analyzer |
| FPL1026 | 1304.0004.26Signal and Spectrum Analyzer Included Accessories: Power Cable Quick Start Guide |
