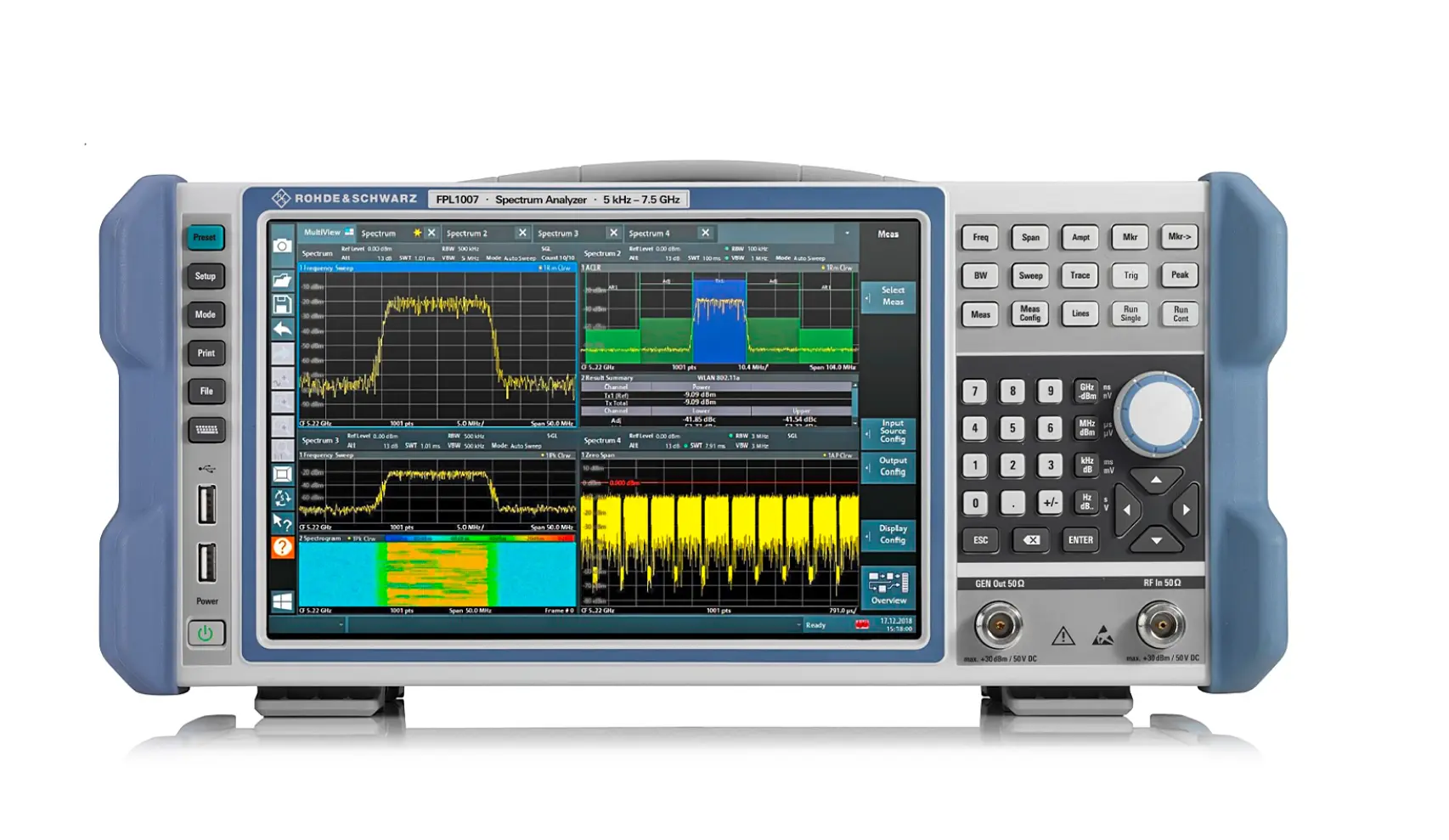

Rohde & Schwarz FPL1007-P6 Spectrum Analyzer Bundle

Overview

Rohde & Schwarz FPL1007-P6 is a comprehensive bundle combining the FPL1007 spectrum analyzer with a premium set of options for advanced RF measurement applications. This bundle includes an internal signal generator for stimulus-response testing, GPIB interface for automated test systems, EMI measurement capabilities, and analog modulation analysis. It is configured for advanced users requiring self-contained measurement solutions in research, production verification, compliance testing, and automated measurement systems.

Key Features

• Base FPL1007 spectrum analyzer: 5 kHz to 7.5 GHz
• SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz offset
• DANL with preamplifier: typ. –166 dBm from 10 MHz to 2 GHz
• Internal signal generator for stimulus-response measurements
• OCXO reference frequency for precise synchronization
• Additional interfaces for external device connectivity
• GPIB interface for automated test system integration
• RF preamplifier with 20 dB gain for maximum sensitivity
• 1 dB electronic attenuator steps for dynamic range optimization
• EMI measurement application for compliance testing
• Analog modulation analysis (AM/FM/PM)
• 10.1" touchscreen with 1280 x 800 pixel resolution
• Lightweight portable design at 6 kg

Applications

• Advanced RF research and component characterization
• EMI/RFI compliance testing and diagnostics
• Automated measurement and test systems
• Analog and digital signal analysis
• Power and modulation measurement with sensors
• Production verification and quality assurance
• Telecommunications and wireless device testing
• Interference hunting and interference source identification

Included Accessories

• FPL1007 spectrum analyzer base unit
• FPL1-B4 OCXO frequency reference option
• FPL1-B5 additional interfaces option
• FPL1-B9 internal generator option
• FPL1-B10 GPIB interface option
• FPL1-B22 RF preamplifier option
• FPL1-B25 1 dB attenuator option
• FPL1-K7 analog modulation analysis option
• FPL1-K54 EMI measurement application option
• Power cable
• Quick start guide
