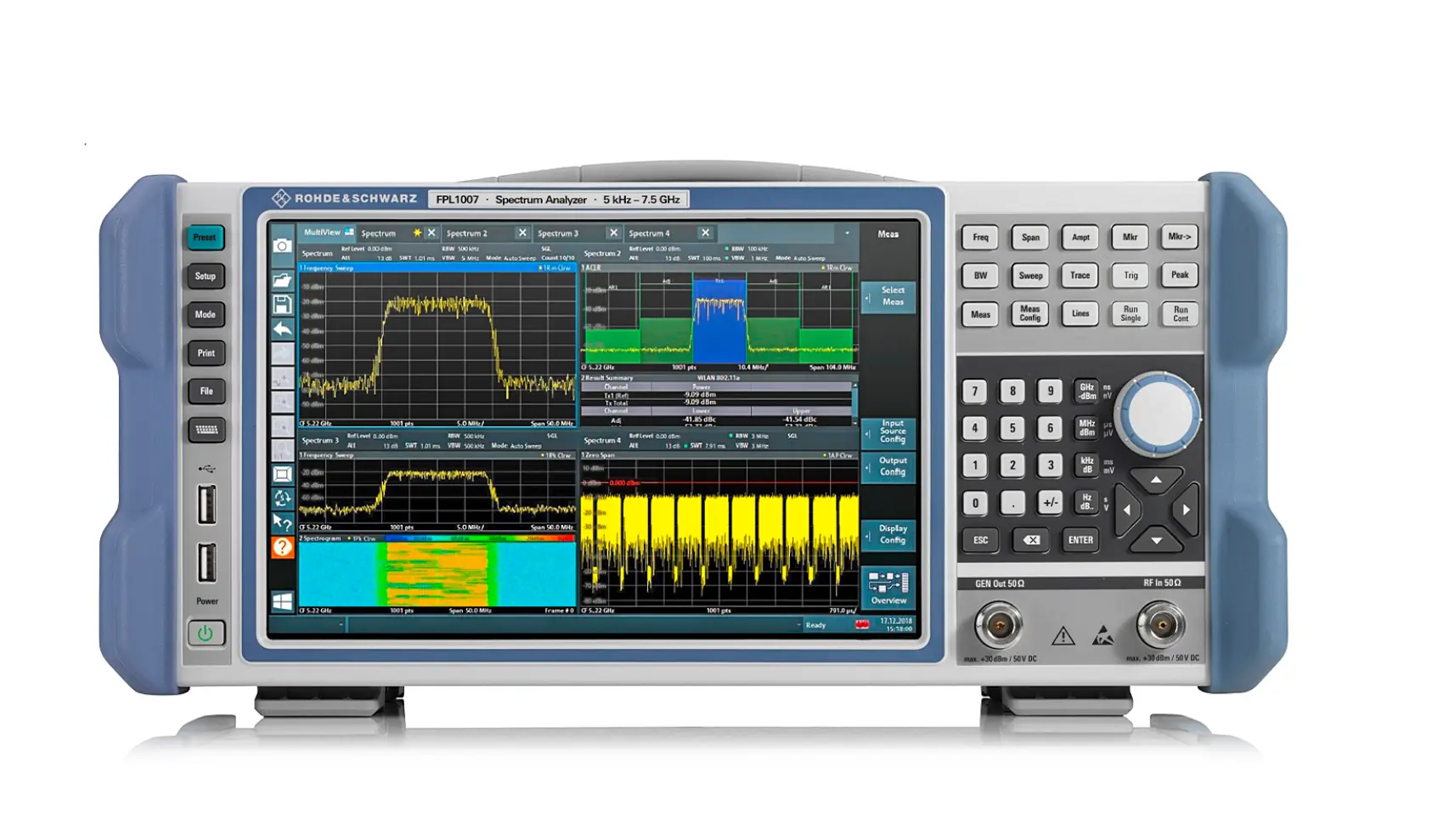

Rohde & Schwarz FPL-EMI7 Spectrum Analyzer

Overview

The Rohde & Schwarz FPL-EMI7 is a portable spectrum analyzer designed for RF laboratory, production, and service applications. With coverage from 5 kHz to 7.5 GHz, exceptional low phase noise, and high sensitivity even without additional amplification, it is an indispensable tool for signal analysis and EMI measurements. The FPL-EMI7 supports spectrum analysis, power measurement with sensors, and analysis of both analog and digitally modulated signals.

Key Features

• Frequency range: 5 kHz to 7.5 GHz
• Phase noise: typ. –108 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
• DANL sensitivity: typ. –166 dBm with preamplifier from 10 MHz to 2 GHz
• Analysis bandwidth up to 40 MHz (FPL1-B40 option)
• Internal signal generator included
• RF preamplifier option for extended sensitivity
• EMI measurement application included
• Additional interfaces for external connections
• Lightweight and compact design for portable use
• OCXO reference frequency option for enhanced stability

Applications

• Spectrum analysis and RF characterization in the laboratory
• Electromagnetic interference (EMI) testing and troubleshooting
• Power measurement with R&S NRP power sensors
• Analysis of analog and digitally modulated signals
• Production testing and field service measurements
• Phase noise and jitter measurements

Included Accessories

• Power cable
• Quick start guide
