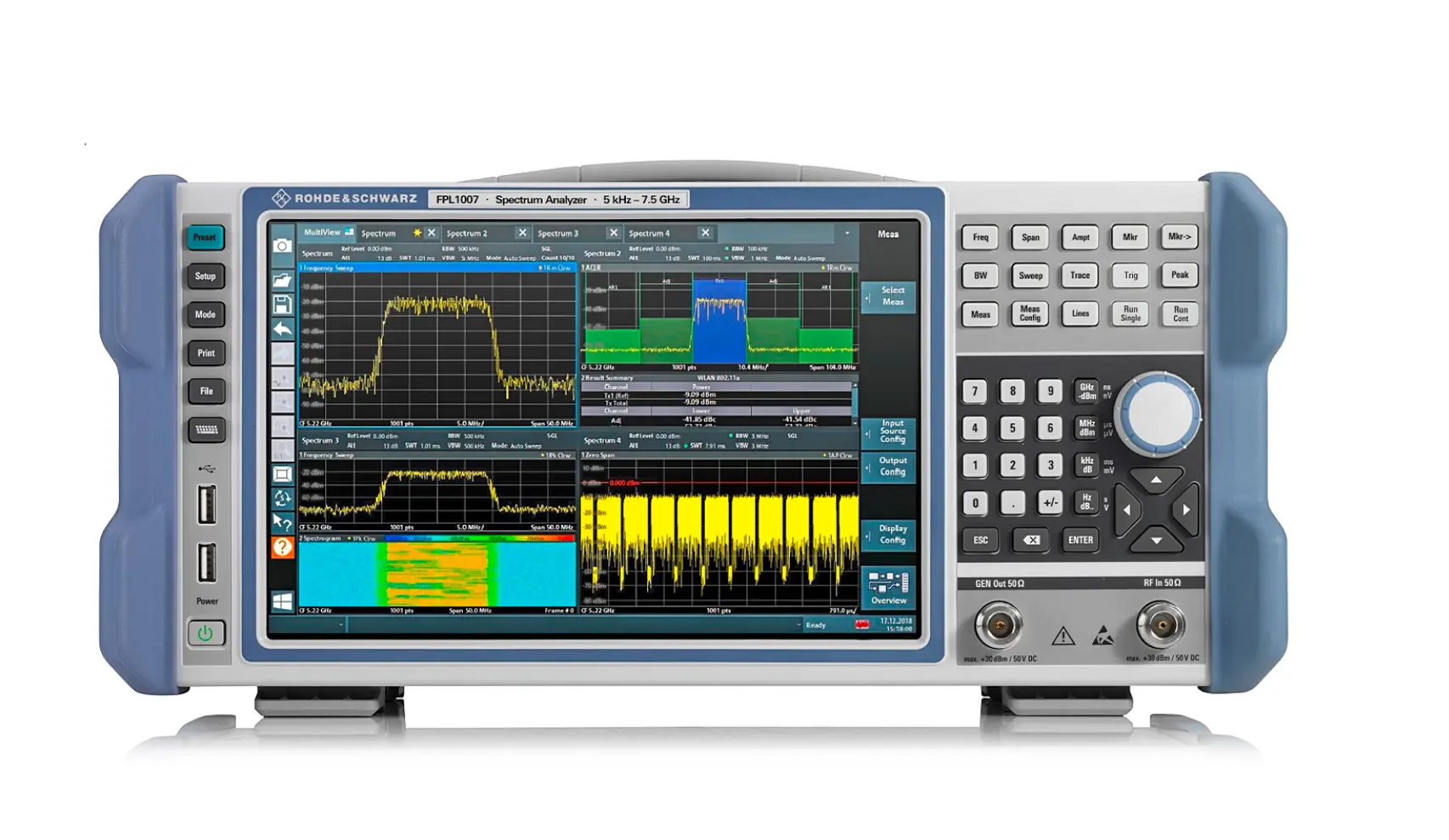

Rohde & Schwarz FPL-EMI3 Spectrum Analyzer
Request a quote
FPL-EMI3 spectrum analyzer with 5 kHz to 3 GHz coverage, integrated generator, RF preamplifier, and EMI measurement application for laboratory and field use.
Product details
| Model | FPL-EMI3 (1304.0004P61) |
| Manufacturer | Rohde & Schwarz |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FPL-EMI3 is a comprehensive benchtop spectrum analyzer package designed for EMI debugging and RF measurements. Based on the FPL1003 platform with 5 kHz to 3 GHz frequency coverage, this configuration includes the most essential options for EMI and RF troubleshooting: additional interfaces, integrated generator, RF preamplifier, and dedicated EMI measurement application software.
Key Features
- Frequency range: 5 kHz to 3 GHz
- SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz offset
- DANL with preamplifier: typ. –166 dBm from 10 MHz to 2 GHz
- 40 MHz analysis bandwidth (optional upgrade available)
- Internal CW source and tracking generator for network analysis
- RF preamplifier with 20 dB gain
- Multiple interfaces: video out, IF out, noise source control, power sensor connector
- EMI measurement application for diagnostic testing
- 10.1" touchscreen with intuitive multi-view interface
- Portable design with carrying handle (6 kg)
Applications
- EMI/RFI troubleshooting and diagnostics
- Compliance measurements and verification
- Spectrum analysis and signal characterization
- Network and component testing
- RF system installation and maintenance
- Laboratory and field measurements
Included Components
- FPL1003 Spectrum Analyzer base unit
- FPL1-B5 Additional Interfaces option
- FPL1-B9 Internal Generator option
- FPL1-B22 RF Preamplifier option
- FPL1-K54 EMI Measurement Application
- Power cable and documentation
Specifications
| FPL-EMI3 | 5 kHz to 3 GHzFPL1003: additional interfaces, internal generator, RF preamplifier, EMI measurement application |
| FPL-EMI3 | 1304.0004P61Spectrum Analyzer5 kHz to 3 GHzR&S®1003: Additional interfaces, Internal generator, RF preamplifier, EMI measurement application |
