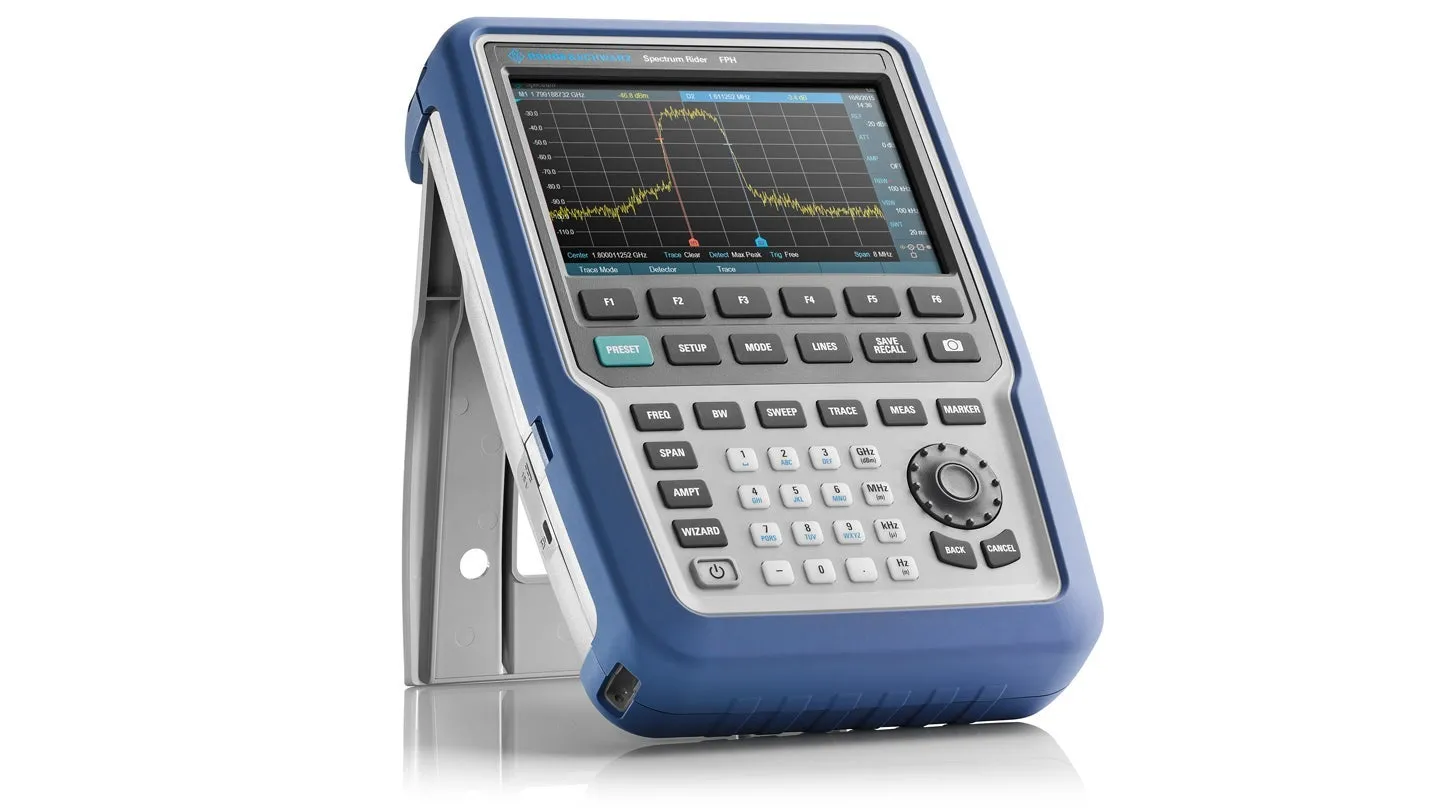

Rohde & Schwarz FPH-COM1 Spectrum Analyzer

Overview

The Rohde & Schwarz Spectrum Rider FPH is a portable spectrum analyzer designed for field work and on-site measurements. It offers excellent RF performance with a displayed average noise level (DANL) as low as –163 dBm and covers frequencies from 5 kHz to 31 GHz depending on options. With a weight of just 2.5 kg (5.5 lbs) and battery life exceeding 6 hours, the FPH is ideal for engineers, technicians, and RF specialists working in the field, including remote and difficult-to-reach locations.

Key Features

• DANL: –163 dBm typical (10 MHz to 3 GHz with preamplifier on)
• Frequency range: 5 kHz to 31 GHz (extendable with frequency upgrade options)
• Third Order Intercept (TOI): +10 dBm at 2.4 GHz
• Lightweight and portable: 2.5 kg (5.5 lbs)
• Extended battery life: Over 6 hours per charge (up to 9 hours)
• 7-inch (18 cm) large color touchscreen with nonreflective surface for outdoor use
• Backlit keypad for convenient operation in low-light environments
• Gesture control interface for intuitive operation
• Ruggedized housing meets MIL-PRF-28800F Class 2 without vents or fans
• Fast boot time and easy-to-use measurement wizard
• Software upgrades via keycodes—no hardware replacement needed

Applications

• Aerospace and defense industry testing and compliance
• Wireless communications and cellular network verification
• Broadcasting and television spectrum monitoring
• Spectrum regulation and interference analysis
• Field engineering and system troubleshooting
• RF education and laboratory training
