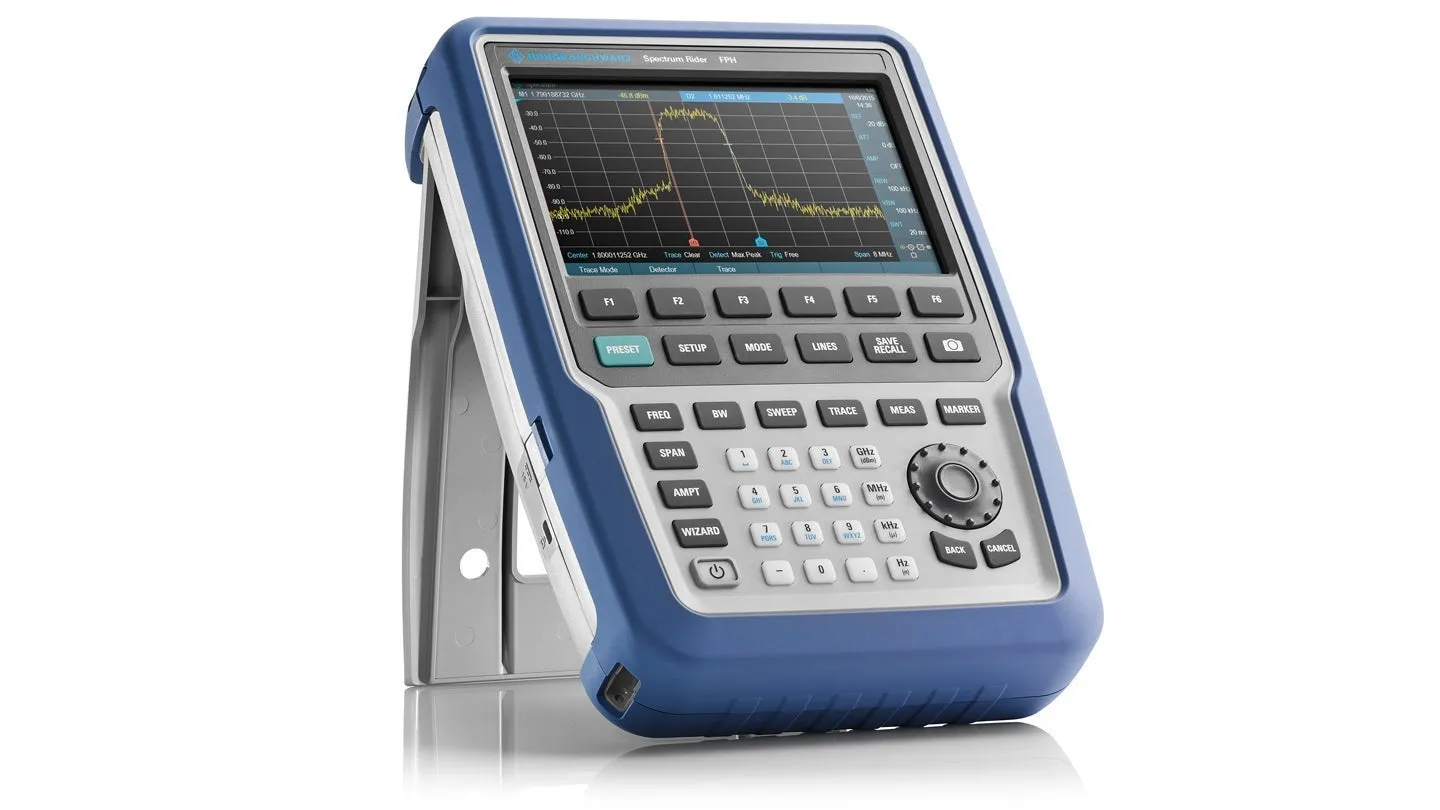

Rohde & Schwarz FPH Handheld Spectrum Analyzer

Overview

The Rohde & Schwarz Spectrum Rider FPH is a versatile, portable handheld spectrum analyzer designed for field measurements and laboratory use. With German-engineered performance and an ergonomic design, it provides excellent RF measurement capabilities in a lightweight package weighing only 2.5 kg. The FPH supports frequencies from 5 kHz up to 26.5 GHz (expandable to 31 GHz), making it suitable for mobile communications, radar, satellite communications, and broadcasting applications.

Key Features

• Frequency range: 5 kHz to 26.5 GHz (31 GHz optional upgrade)
• Excellent DANL (Displayed Average Noise Level): –162 dBm
• Phase noise: –125 dBc/Hz (1 Hz offset at 500 MHz)
• Multitouch interface with intuitive gesture controls
• Portable design: lightweight 2.5 kg with 4.5+ hour battery life
• Scalar frequency response and harmonic distortion measurements
• Optional preamplifier for enhanced sensitivity (FPH-B25)
• Optional tracking generator for network analysis

Applications

• Mobile communications signal analysis and spectrum monitoring
• Radar and satellite communications testing
• Broadcasting and EMI/RFI debugging
• Field measurements and portable laboratory testing
• Spectrum regulation and compliance testing

Included Accessories

• Lithium-ion battery pack
• AC power supply with country-specific adapters (EU, GB, US, AUS, CH)
• USB cable
• Side strap for ergonomic handheld operation
• Quick start guide and documentation
