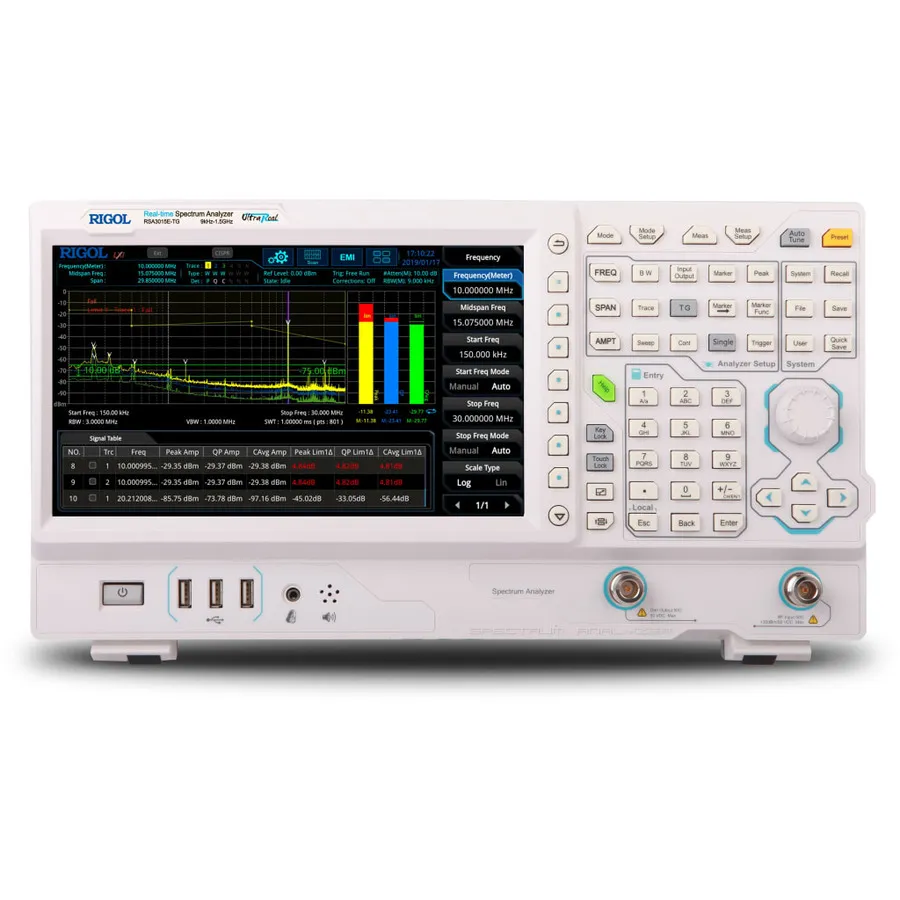

RIGOL RSA3015E-TG Real-Time Spectrum Analyzer with Tracking Generator
RIGOL RSA3015E-TG is a 1.5 GHz real-time spectrum analyzer with integrated tracking generator and Ultra-Real technology for advanced signal analysis.
Product details
| Model | RSA3015E-TG |
| Manufacturer | RIGOL |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The RIGOL RSA3015E-TG is a real-time spectrum analyzer with integrated tracking generator, combining high-performance swept analysis with seamless real-time measurement capabilities. Part of the RSA3000E series, it delivers advanced signal analysis at an exceptional value.
Based on Rigol's Ultra Real technology, the RSA3015E-TG enables seamless I/Q data acquisition and analysis within its full 1.5 GHz measurement bandwidth. The instrument features a 10.1-inch capacitive touchscreen with advanced triggering modes including frequency mask trigger (FMT) for capturing sporadic and transient events.
Key Features
- Real-time spectrum analyzer with 1.5 GHz bandwidth
- Integrated tracking generator
- Ultra-Real technology with 10 MHz real-time analysis bandwidth
- 9.3 µs capture time with 100% POI (Probability of Intercept)
- Minimum RBW of 1 Hz with 1 ms best sweep speed
- Multiple display modes: Spectrogram, Density, PVT, and combinations
- Frequency Mask Trigger (FMT) for transient signal detection
- 10.1-inch capacitive multi-touch display with gesture support
- Embedded EMI measurement software (optional)
- ASF/FSK demodulation capability
Applications
- RF signal analysis and spectrum monitoring
- Component and subsystem testing
- EMI/RFI troubleshooting and compliance testing
- Signal integrity analysis
- Network and communications testing
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 1.5 GHz |
| Tracking Generator | Yes |
| Noise Floor | -161 dB |
| Product Type | Benchtop |
| Series | RSA3000 Series |
| Display Type | 10.1" LCD |
| Input Connector | SMB male, BNC female, N-type female, HDMI 1.4b, 100/1000Base, RJ-45, USB A/B Ver 2.0 |
| Interface | USB Host (4 ports), USB Device, LAN, HDMI |
| Memory | 512 MB |
| Minimum Frequency | 10 MHz |
| Resolution | 1 Hz to 3 MHz |
| Warranty | 3 Years |
