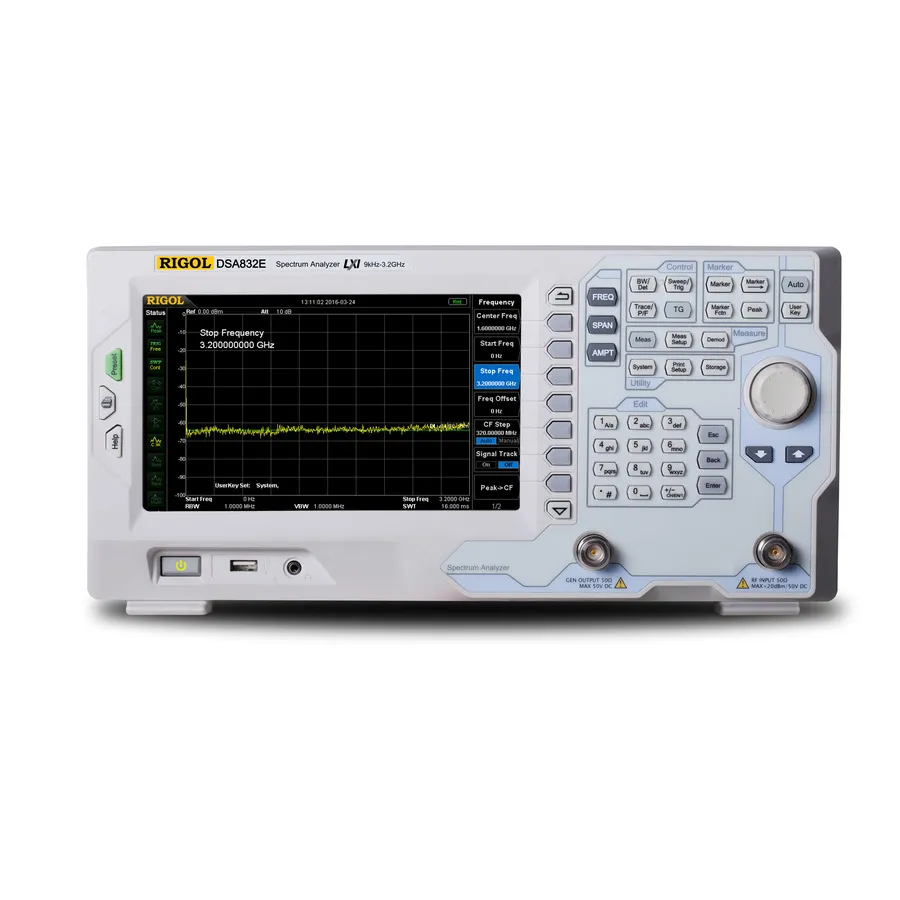

RIGOL DSA832E RF Spectrum Analyzer
Request a quote
RIGOL DSA832E RF Spectrum Analyzer covers 9 kHz to 3.2 GHz with superior -148 dBm noise level, integrated preamplifier, and optional tracking generator.
Product details
| Model | DSA832E |
| Manufacturer | RIGOL |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The RIGOL DSA832E is a mid-range spectrum analyzer designed for comprehensive RF and microwave measurements. It covers 9 kHz to 3.2 GHz with improved noise performance of -148 dBm typical displayed average noise level. The DSA832E features all-digital IF technology and comes standard with an integrated preamplifier, providing excellent sensitivity for demanding applications.
Key Features
- Frequency range: 9 kHz to 3.2 GHz
- Displayed Average Noise Level (DANL): -148 dBm typical
- Phase noise: < -90 dBc/Hz @ 10 kHz offset
- Level measurement uncertainty: < 1.0 dB
- All-digital IF technology
- Minimum resolution bandwidth: 10 Hz
- Integrated preamplifier (standard)
- Optional tracking generator (DSA832E-TG model)
- 8-inch WVGA display (800 × 480)
- Connectivity: LAN (LXI), USB Host & Device, optional GPIB
Applications
- RF signal measurement and analysis
- Frequency response and filter characterization
- EMC/EMI testing and compliance
- Component and transceiver testing
Included Accessories
- Quick start guide (hard copy)
- Power cable
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3.2 GHz |
| Noise Floor | -161 dB |
| Product Type | Benchtop |
| Series | DSA800 Series |
| Display Type | 8" LCD |
| Input Connector | N female, BNC female, USB A plug ver 2.0, USB B plug ver 2.0, 10/100Base, RJ-45, IEEE488.2 |
| Interface | LAN / Ethernet, Other, USB Host, USB |
| Minimum Frequency | 9 kHz |
| Resolution | 10 Hz to 1 MHz |
| Warranty | 3 Years |
