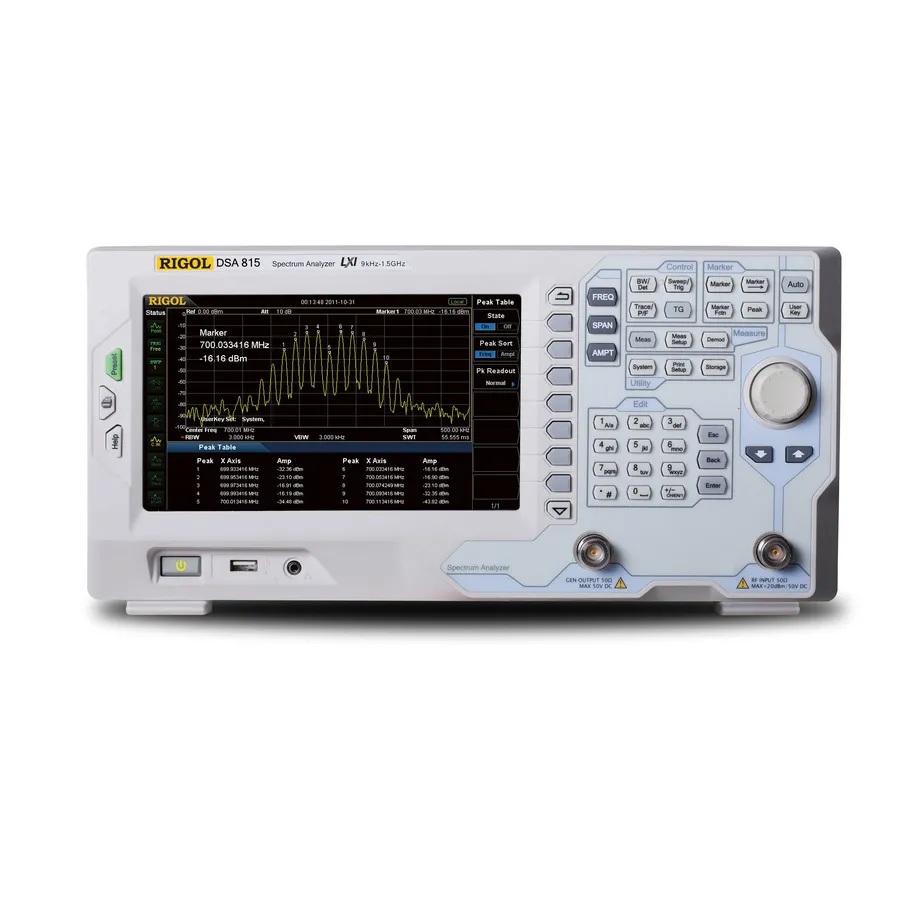

RIGOL DSA815-TG RF Spectrum Analyzer
Request a quote
RIGOL DSA815-TG is a compact all-digital RF spectrum analyzer with 1.5 GHz frequency range, integrated tracking generator, and exceptional sensitivity of -161 dBm typical DANL.
Product details
| Model | DSA815-TG |
| Manufacturer | RIGOL |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The RIGOL DSA815-TG is a compact RF spectrum analyzer part of the DSA800 Series, offering exceptional performance at an affordable price. It provides comprehensive frequency analysis from 9 kHz to 1.5 GHz with advanced measurement capabilities and integrated tracking generator for antenna and filter measurements.
Key Features
- All-digital IF technology for superior signal fidelity
- Frequency range: 9 kHz to 1.5 GHz
- Minimum -161 dBm Displayed Average Noise Level (DANL)
- Phase noise: less than -98 dBc/Hz at 10 kHz offset
- Level measurement uncertainty: less than 0.8 dB
- 10 Hz minimum resolution bandwidth
- Integrated tracking generator (1.5 GHz)
- 8-inch WVGA (800x480) display
- Complete connectivity: LAN (LXI), USB, optional GPIB
- Optional advanced measurement functions and EMI/VSWR kits
Applications
- RF component and antenna characterization
- Signal path analysis for wireless communications
- EMI/RFI measurements and troubleshooting
- Filter and cable testing
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 1.5 GHz |
| Tracking Generator | Yes |
| Noise Floor | -161 dB |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | DSA800 Series |
| Display Type | 8" LCD |
| Includes | Power Cord, Quick Guide, NIST calibration certificate for the DSA815 |
| Input Connector | N female, BNC female, USB A plug ver 2.0, USB B plug ver 2.0, 10/100Base, RJ-45, IEEE488.2 |
| Interface | LAN (LXI), USB Host & Device, GPIB |
| Minimum Frequency | 9 kHz |
| Resolution | 10 Hz to 1 MHz |
| Warranty | 3 Years |
