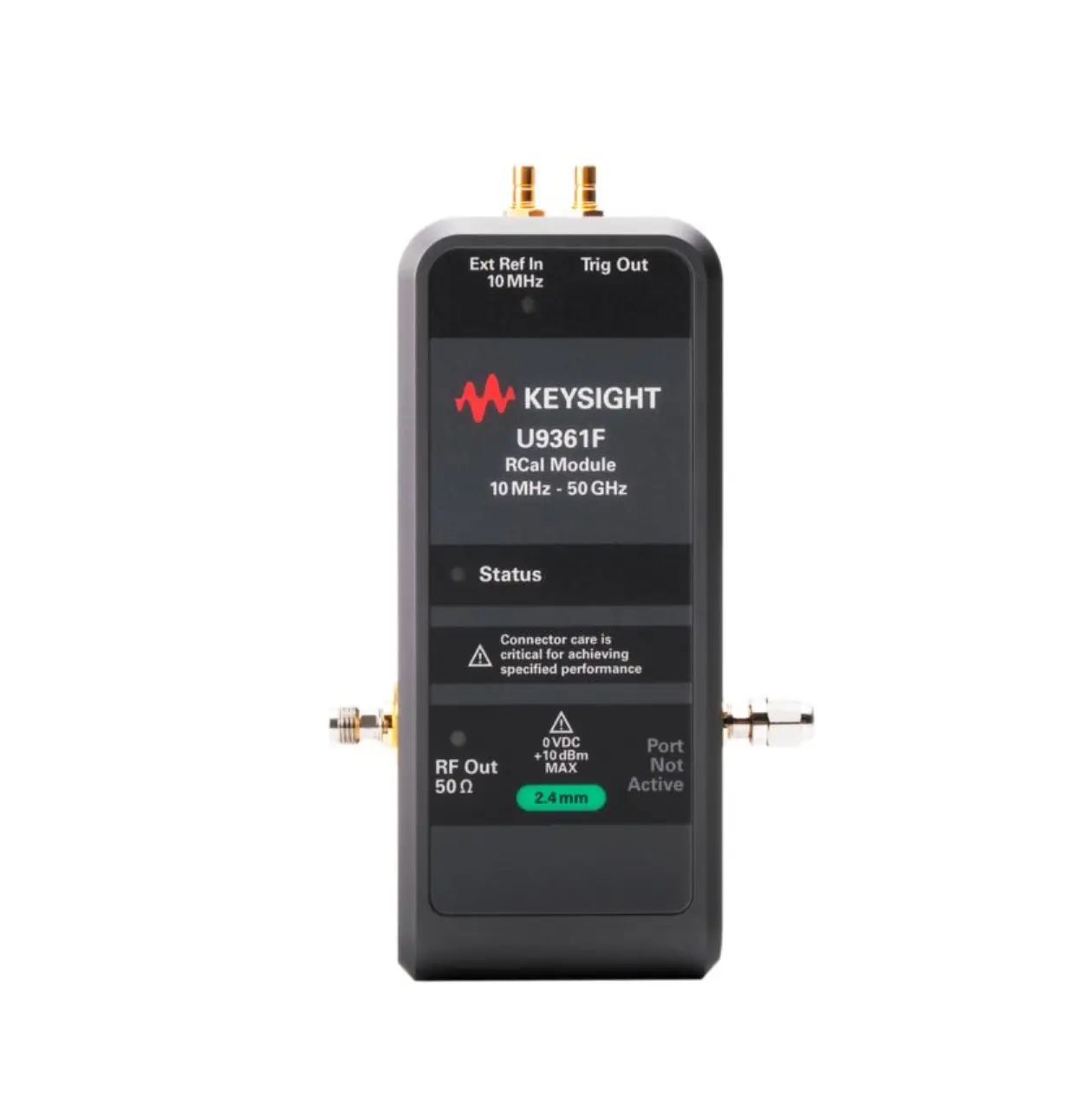

Keysight U9361F RCal Receiver Calibrator

Overview

The Keysight U9361F is an RCal receiver calibrator module that provides connector-specific calibration standards to detect and correct systematic errors in RF and microwave test systems. By moving the reference plane to the device under test, the U9361F transfers absolute power accuracy and enables IF flatness corrections with complex magnitude and phase correction up to 5 GHz IF bandwidths across frequencies up to 50 GHz.

Key Features

• 2.4mm Female Connector for compatibility with standard RF test equipment
• Frequency range of 10 MHz to 50 GHz for broad RF and microwave applications
• Compact, palm-size, USB-powered design for easy portability and setup
• Both magnitude and phase corrections with BPSK comb modulation
• Ultra-stable and repeatable with precision factory calibration data
• Improves receiver system accuracy by an order of magnitude

Applications

• Signal analyzer and receiver characterization
• Transmitter output measurement at device under test
• System path loss and frequency response correction
• Laboratory calibration and verification
