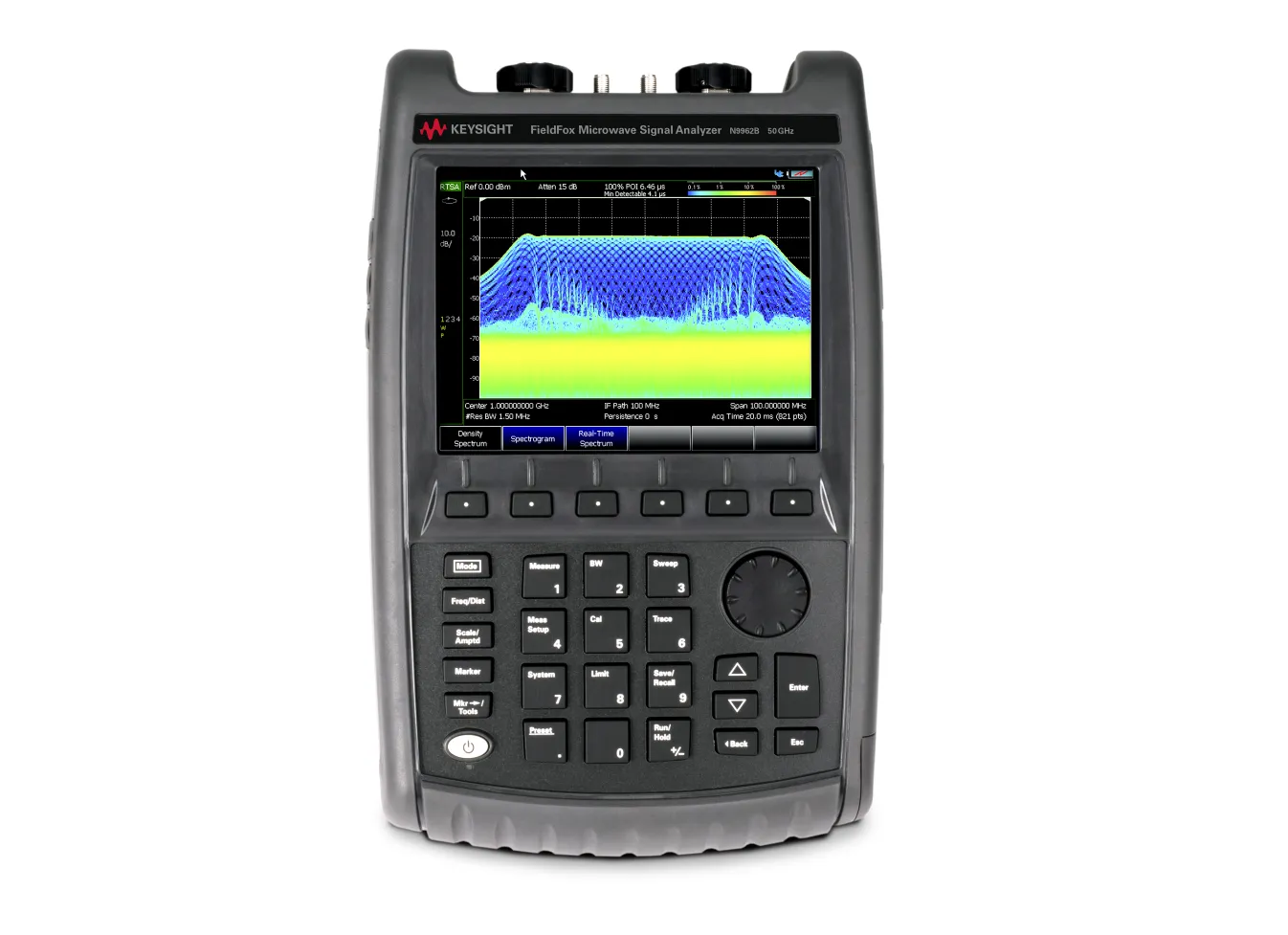

Keysight N9962B FieldFox Microwave Analyzer
Request a quote
Keysight N9962B is a handheld microwave analyzer with 50 GHz frequency coverage, 120 MHz real-time bandwidth, and integrated spectrum analyzer and signal source functions.
Product details
| Model | N9962B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9962B FieldFox is a handheld microwave analyzer designed for field testing and troubleshooting in RF and microwave applications. It offers 120 MHz of real-time bandwidth with frequency coverage up to 50 GHz (extendable to 110 GHz with an optional downconverter). The device integrates over 20 RF and microwave instrument functions, including spectrum analyzer, 2-port vector network analyzer, signal source, power meter, and more, making it a comprehensive all-in-one solution for engineers and technicians.
Key Features
- Real-time spectrum analyzer with 120 MHz gap-free bandwidth
- Accurate spectrum measurements (±0.3 dB) without warmup time
- Frequency range 5 kHz to 50 GHz (expandable to 110 GHz)
- 2-port vector network analyzer capabilities
- Over-the-air measurements for 5G NR and LTE
- I/Q data capture for RF signal monitoring
- Integrated GPS/GNSS for geolocation and timestamping
- Built-in power meter and CW signal source
- Lightweight portable design at 3.4 kg
Applications
- 5G network deployment and field troubleshooting
- Satellite communications testing
- Automotive radar characterization
- Cable and antenna analysis
- Signal quality verification and interference troubleshooting
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Frequency Range | > 30.0 GHz |
| Maximum Frequency | 50 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -163 dBm |
| Series | N996xB Series |
| Battery Life | 4 hrs. |
| Connector Type | 2.4 (mm) |
| Display | 6.5" LCD Color |
| Includes | Base model includes the cable and antenna analyzer |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Number of Ports | 2 |
| Type | Handheld |
| Warranty | 3 Years |
