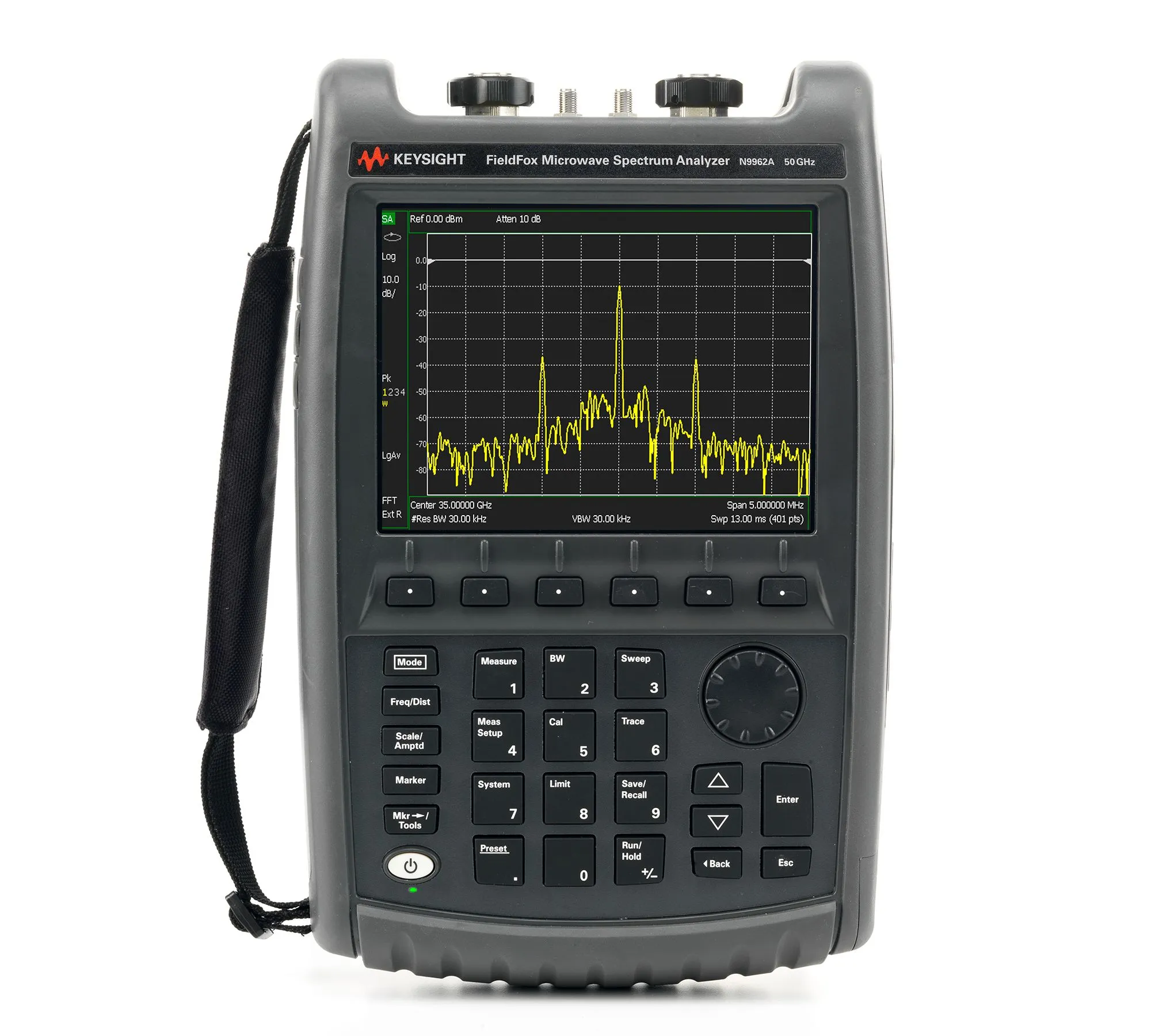

Keysight N9962A Microwave Spectrum Analyzer
Request a quote
Keysight N9962A is a 50 GHz handheld spectrum analyzer weighing only 7.1 lb, featuring ±0.5 dB measurement accuracy and configurable options including tracking generator, power meter, and interfere...
Product details
| Model | N9962A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9962A FieldFox is a handheld spectrum analyzer offering lab-grade measurements up to 50 GHz. Weighing only 7.1 lbs (3.2 kg), it combines portability with precision, delivering Keysight-quality measurements wherever field testing or maintenance is needed. The instrument features a 5 kHz start frequency and operates as a spectrum analyzer with optional enhancements for power measurement, signal generation, and interference analysis.
Key Features
- Frequency range: 5 kHz to 50 GHz
- Measurement accuracy: ±0.5 dB without warm-up
- Maximum analysis bandwidth: 10 MHz standard with real-time options
- DANL at 1 GHz: -159 dBm
- Two built-in ports for measurements
- Phase noise at 1 GHz: -113 dBc/Hz (1 MHz offset)
- Third-order intercept (TOI) at 1 GHz: +13 dBm
- Lightweight and portable design at 7.1 lb (3.2 kg)
- Built-in and optional power measurement capabilities
- Spectrogram display and recording functionality
Applications
- Routine field maintenance and troubleshooting
- Spectrum analysis and interference detection
- Power measurements with USB sensors (CW, swept-frequency, and pulse)
- Cellular and 5G field testing with optional OTA measurements
- Extended range transmission analysis (ERTA) for waveguide and cable systems
- Noise figure and analog demodulation measurements
- Phased array antenna control and EMF measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Frequency Range | > 30.0 GHz |
| Maximum Frequency | 50 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -159 dBm |
| Series | N996xA Series |
| Battery Life | 3.5 hrs. |
| Connector Type | NMD 2.4 mm (m) |
| Display | 6.5" LCD |
| Includes | Base model includes the cable and antenna analyzer |
| Interface | USB, LAN, SD Card |
| Minimum Frequency | 5 kHz |
| Number of Ports | 2 |
| Type | Handheld |
| Warranty | 3 Years |
