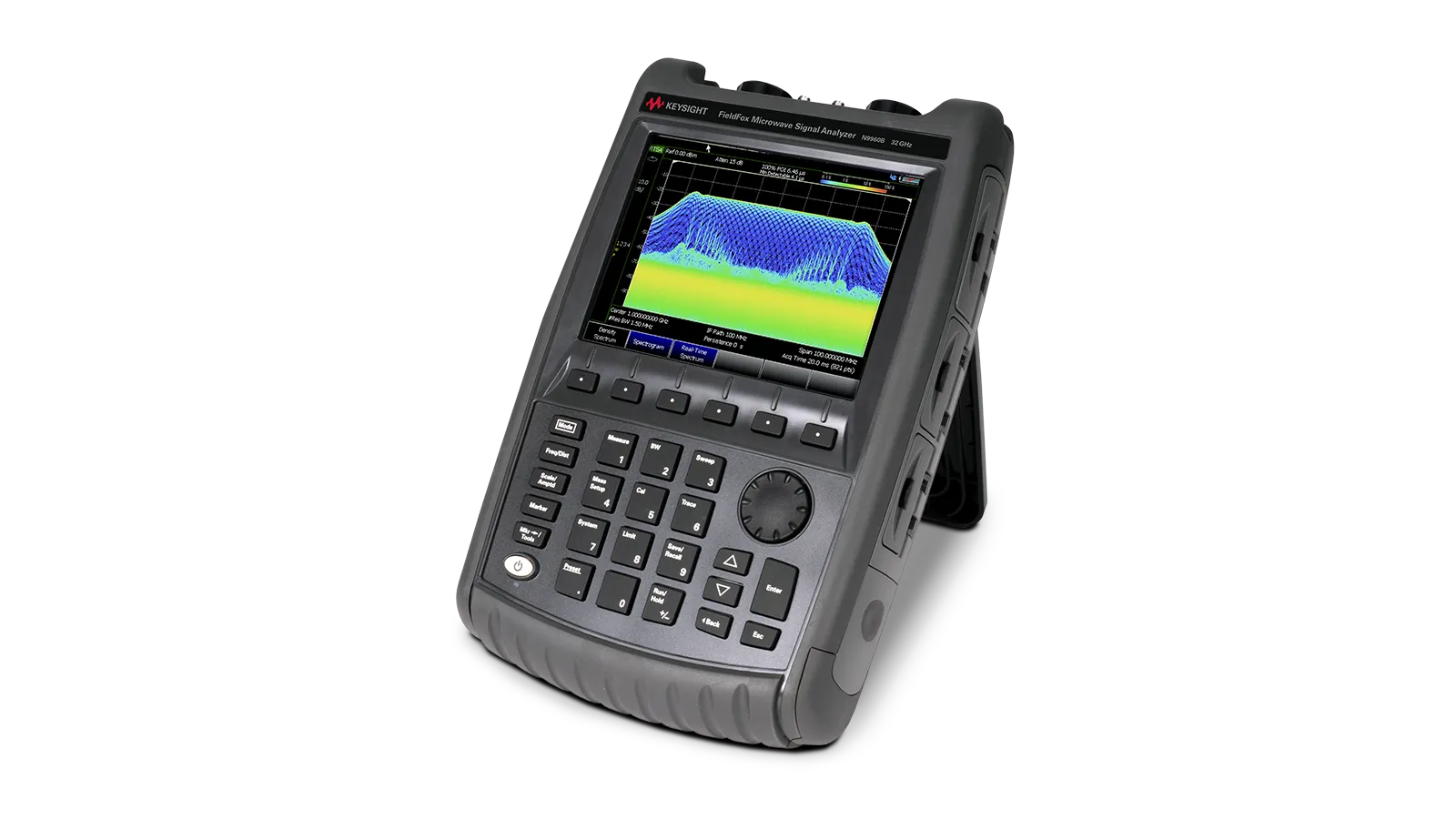

Keysight N9960B FieldFox Handheld Microwave Analyzer
Request a quote
Keysight N9960B is a handheld microwave signal analyzer with 9 kHz to 32 GHz frequency coverage, 120 MHz real-time bandwidth, and integrated 2-port vector network analyzer for 5G and RF field testing.
Product details
| Model | N9960B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9960B FieldFox is a handheld microwave signal analyzer designed for RF and microwave testing in field environments. It offers frequency coverage from 9 kHz to 32 GHz with 120 MHz real-time bandwidth, making it ideal for 5G deployment, satellite communications, and automotive radar applications. The analyzer combines multiple instrument functions in a single portable unit weighing 3.4 kg.
Key Features
- Frequency range: 9 kHz to 32 GHz with optional extension to 110 GHz
- 120 MHz gap-free real-time spectrum analyzer bandwidth
- ±0.3 dB spectrum analyzer measurement accuracy
- Built-in 2-port vector network analyzer
- Built-in power meter supporting CW and swept-frequency measurements
- Real-time spectrum analysis with 25 updates per second at 100 MHz span
- GPS/GNSS receiver for geolocation and timestamping
- Over-the-air measurement capabilities for 5G NR and LTE
- I/Q data capture for RF signal monitoring
- Radar pulse profile characterization
Applications
- 5G network installation and troubleshooting
- RF interference identification and mitigation
- Antenna and cable testing
- Radar signal analysis
- Satellite communication testing
- Automotive radar verification
- Field strength measurements
- AM/FM tuning and monitoring
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Frequency Range | > 30.0 GHz |
| Maximum Frequency | 32 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -163 dBm |
| Series | N996xB Series |
| Battery Life | 4 hrs. |
| Connector Type | 2.4 (mm) |
| Display | 6.5" LCD Color |
| Includes | Base model includes the cable and antenna analyzer |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Number of Ports | 2 |
| Type | Handheld |
| Warranty | 3 Years |
