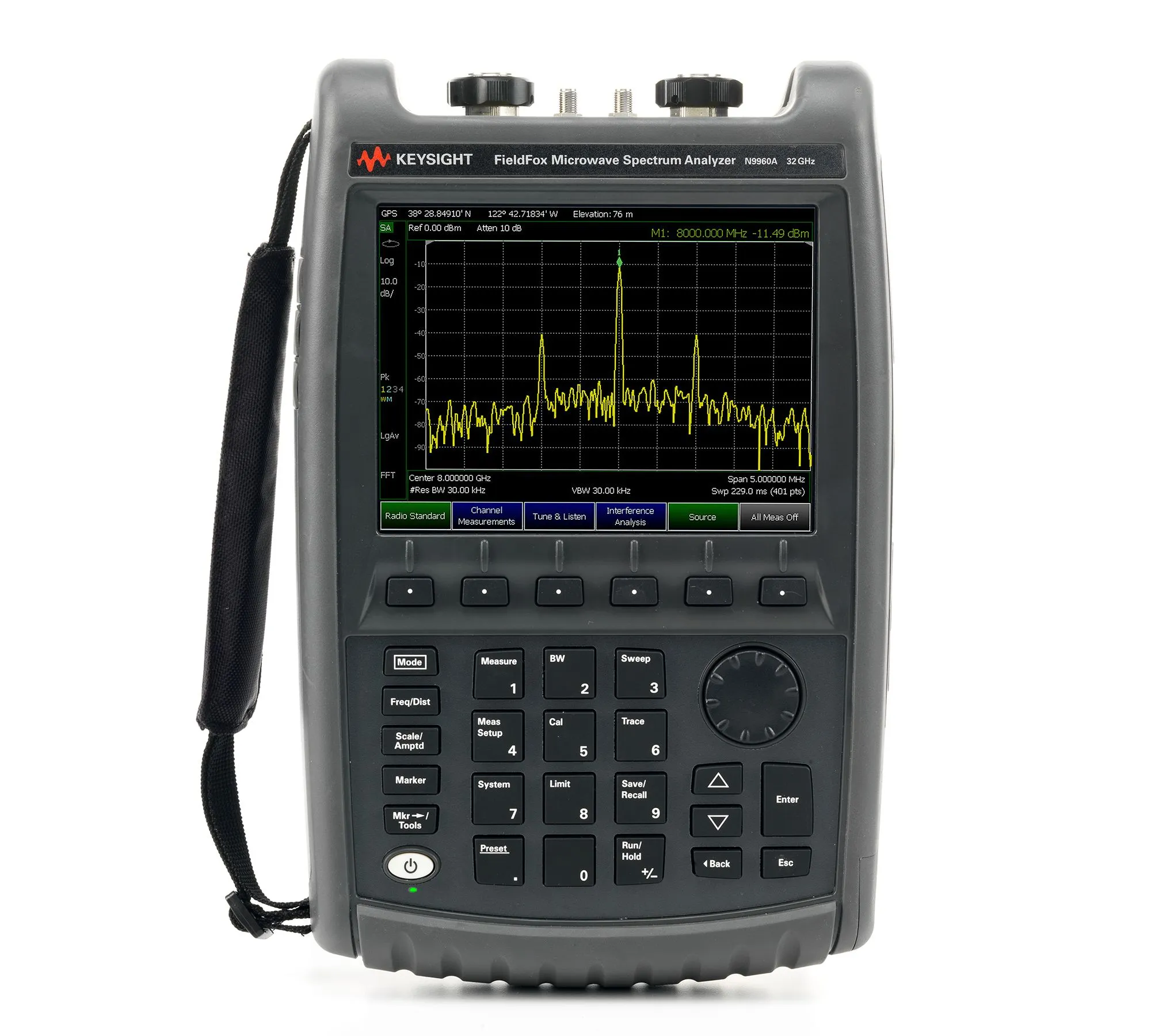

Keysight N9960A 32GHz Spectrum Analyzer
Request a quote
Keysight N9960A 32 GHz handheld spectrum analyzer with real-time bandwidth, interference analysis, and built-in power meter.
Product details
| Model | N9960A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9960A is a handheld microwave spectrum analyzer covering 5 kHz to 32 GHz. Part of the FieldFox family, it provides precision RF and microwave measurements in portable form, ideal for field installation, maintenance, and troubleshooting. The analyzer features lab-grade measurement accuracy without requiring instrument warm-up and weighs only 7.1 lb (3.2 kg).
Key Features
- Frequency range: 5 kHz to 32 GHz
- Real-time spectrum analysis with up to 10 MHz bandwidth
- Accurate spectrum measurements (±0.5 dB) without warm-up
- Built-in power meter for CW and swept-frequency measurements
- Optional full-band tracking generator
- Built-in GPS receiver and variable DC voltage source
- Lightweight and rugged design (7.1 lb / 3.2 kg)
- Interference analyzer with spectrogram and recording
- Remote control capability via iPad/iPhone
- Multiple software options for expanded functionality
Applications
- Field installation and maintenance of RF systems
- Spectrum monitoring and analysis
- Interference detection and location
- 5G and cellular field testing
- Power and modulation measurements
- Portable laboratory measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Frequency Range | > 30.0 GHz |
| Maximum Frequency | 32 GHz |
| Tracking Generator | No |
| Preamplifier | No |
| Noise Floor | -159 dBm |
| Series | N996xA Series |
| Battery Life | 3.5 hrs. |
| Connector Type | 2.4mm (m) |
| Display | 6.5" LCD Color |
| Includes | Base model includes the cable and antenna analyzer |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Number of Ports | 2 |
| Type | Handheld |
| Warranty | 3 Years |
