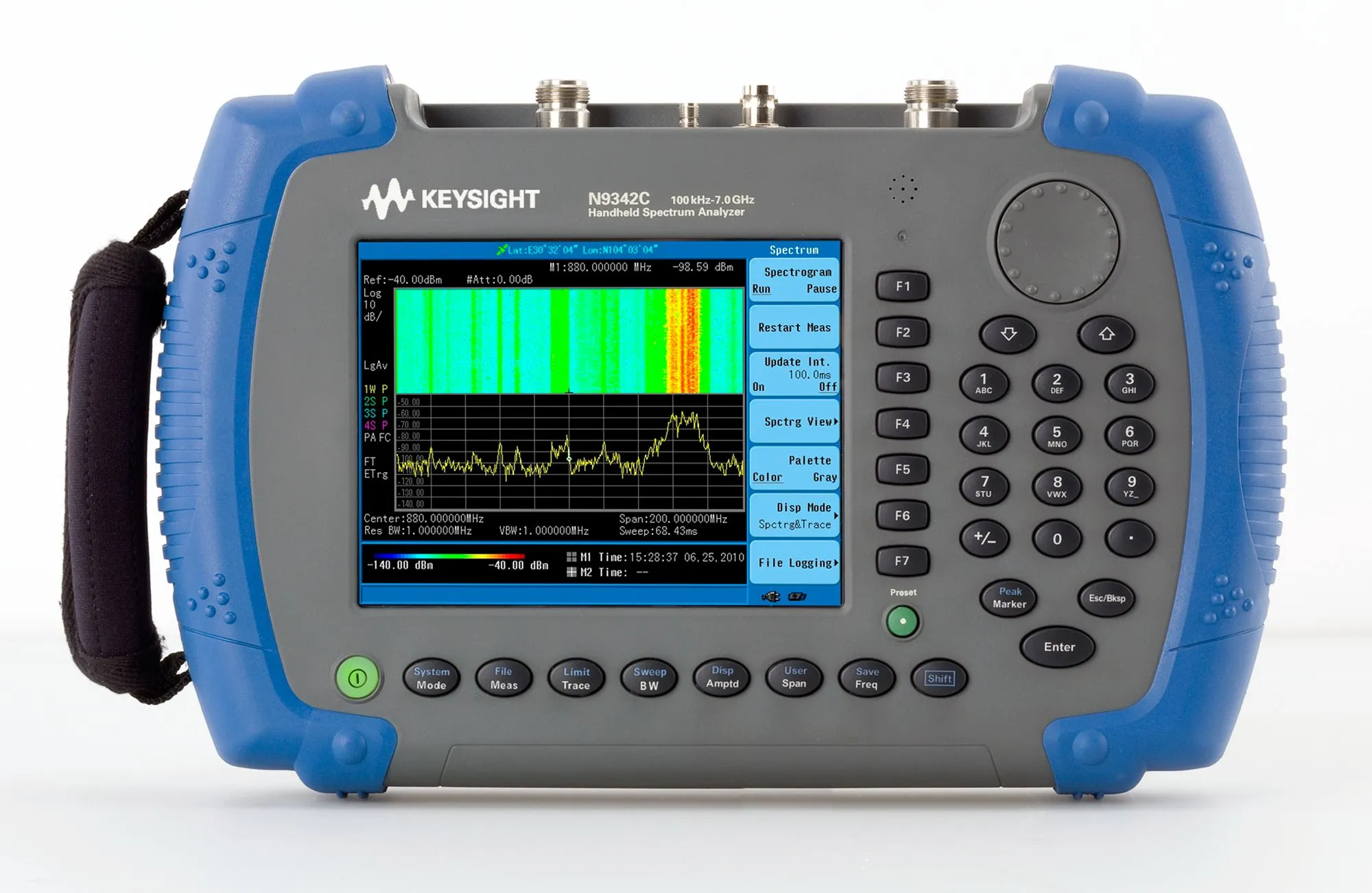

Keysight N9342C Handheld Spectrum Analyzer
Request a quote
Keysight N9342C handheld spectrum analyzer covers 100 kHz to 7 GHz with rugged fanless design, GPS receiver, and tracking generator for field testing.
Product details
| Model | N9342C |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9342C is a handheld spectrum analyzer designed for field measurements in tough environments. MIL PRF 28800 Class 2 compliant, it delivers benchtop-level measurement performance in a portable package with rugged fanless design and excellent readability in all lighting conditions.
Key Features
- Coverage from 100 kHz to 7 GHz (tunable to 9 kHz)
- Built-in GPS receiver and tracking generator
- Internal preamplifier across the full frequency range
- Rapid spectrum analysis with sub-second sweep times
- Automated test routines for consistent measurements
Applications
- Field RF testing and measurements
- Military and harsh environment applications
- Spectrum monitoring and troubleshooting
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
