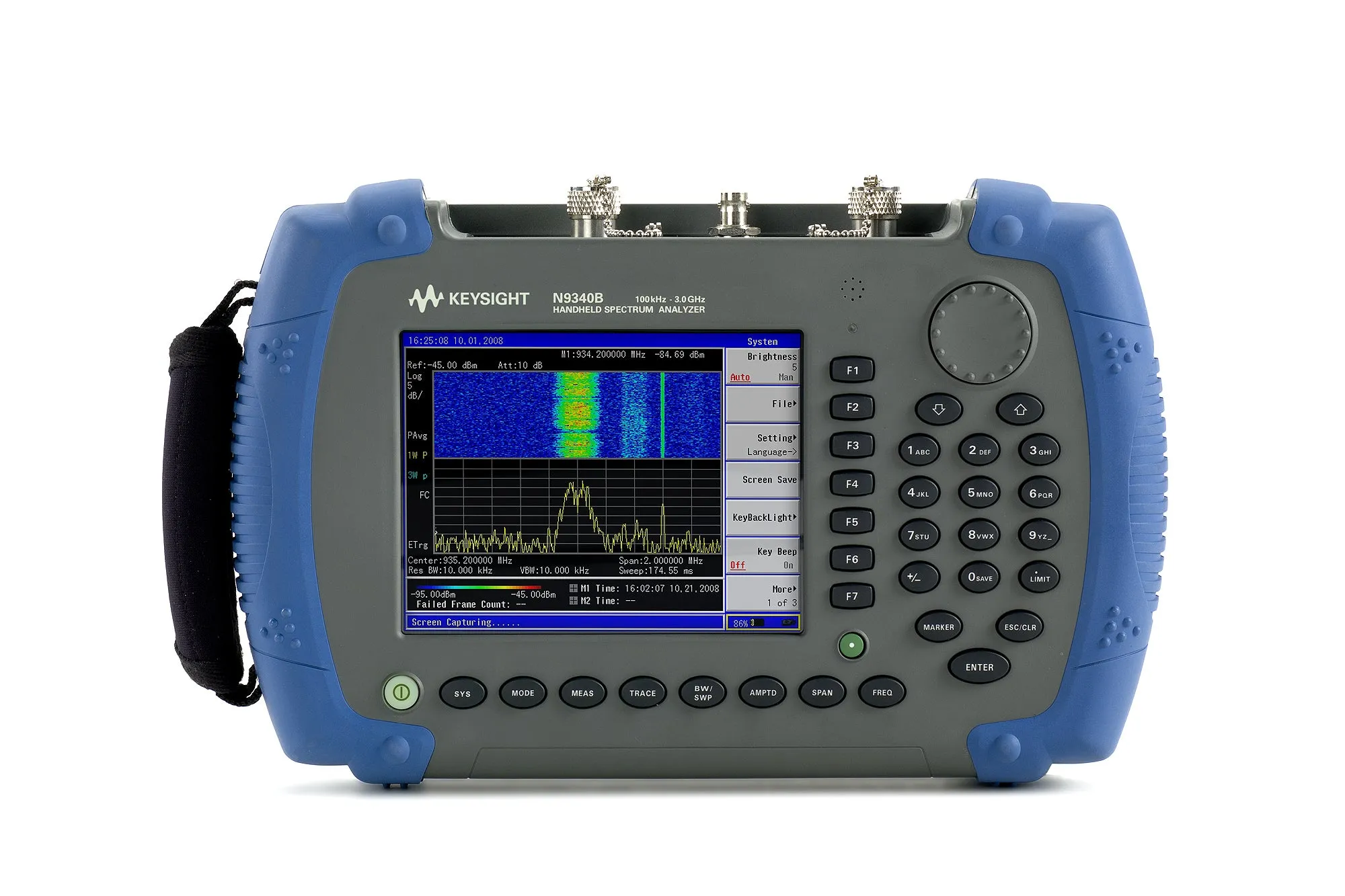

Keysight N9340B Handheld Spectrum Analyzer
Request a quote
Keysight N9340B handheld spectrum analyzer with –144 dBm DANL, ±1.5 dB amplitude accuracy, and < 0.1 s full span sweep for field use.
Product details
| Model | N9340B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9340B handheld spectrum analyzer puts the speed and performance of spectrum analysis in the hands of field engineers. With a portable, rugged, fanless design and up to 4-hour battery life, it delivers benchtop performance in a field-ready package. The N9340B creates reliable, accurate, and detailed pictures of communication systems with superior sensitivity and powerful measurement capabilities.
Key Features
- Superior sensitivity with –144 dBm DANL
- Amplitude accuracy: ±1.5 dB
- Full span sweep time: < 0.1 s
- Portable, rugged, fanless design with clear viewing day and night
- Maximum 4-hour battery life
- Spectrogram measurement capability
- AM/FM/ASK/FSK modulation analysis
- AM/FM IBOC measurement
- xDSL measurement
- Customizable with optional features for application-specific needs
Applications
- Field communication system testing and verification
- Spectrum monitoring and measurement
- Signal integrity and modulation analysis
- Installation and maintenance of wireless systems
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
