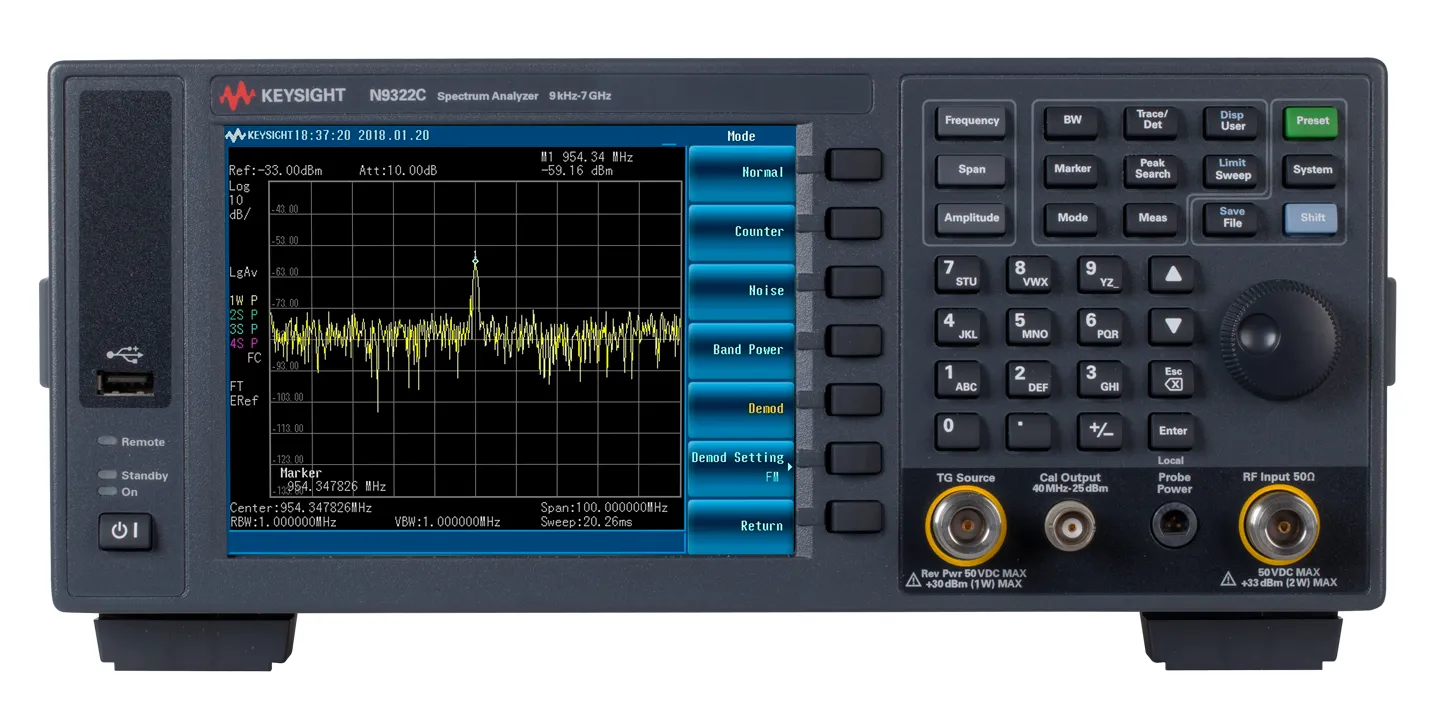

Keysight N9322C Basic Spectrum Analyzer
Request a quote
N9322C basic spectrum analyzer covers 9 kHz to 7 GHz with -152 dBm DANL and ±0.6 dB amplitude accuracy for value-priced, general-purpose RF testing.
Product details
| Model | N9322C |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9322C is a value-priced basic spectrum analyzer designed for general-purpose RF testing and analysis from 9 kHz to 7 GHz. It delivers proven testing efficiency, exceptional usability, and the flexibility to adapt to new measurement requirements while maintaining excellent performance metrics and affordability.
Key Features
- 9 kHz to 7 GHz frequency range with -152 dBm DANL (@1 GHz)
- ±0.6 dB overall amplitude accuracy for reliable measurements
- 10 Hz to 3 MHz resolution bandwidth options
- Marker demodulation and one-button optimization for efficient operation
- User-definable soft keys for customized workflows
- Up to 20 pre-defined automated measurements via optional Task Planner
- Industry standard SCPI language support with USB and LAN connectivity
- Optional tracking generator and power sensor compatibility
Applications
- General-purpose RF and microwave signal analysis
- Cable and antenna measurement and characterization
- Field strength and EMI interference analysis
- AM/FM and ASK/FSK signal demodulation and testing
- Cable fault location and diagnostics
- Spectral emissions mask measurement
Included Accessories
- USB Cable
- N-BNC Adapter
- BNC Cable
- Power Cord
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
| Frequency Range | 4.0 - 8.0 GHz |
| Maximum Frequency | 7 GHz |
| Tracking Generator | No |
| Noise Floor | -152 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | BSA Series |
| Display Type | 6.5" TFT Color |
| Dynamic Range | -60 to -44 dBm |
| Includes | USB Cable, N-BNC Adapter, BNC Cable, Power Cord, Documentation CD-ROM |
| Input Connector | N (f) |
| Interface | LAN TCP/IP, USB |
| Memory | 64 MB |
| Minimum Frequency | 9 kHz |
| Number of Ports | 1 |
| Resolution | 10 Hz to 3 MHz |
| Warranty | 3 Years |
