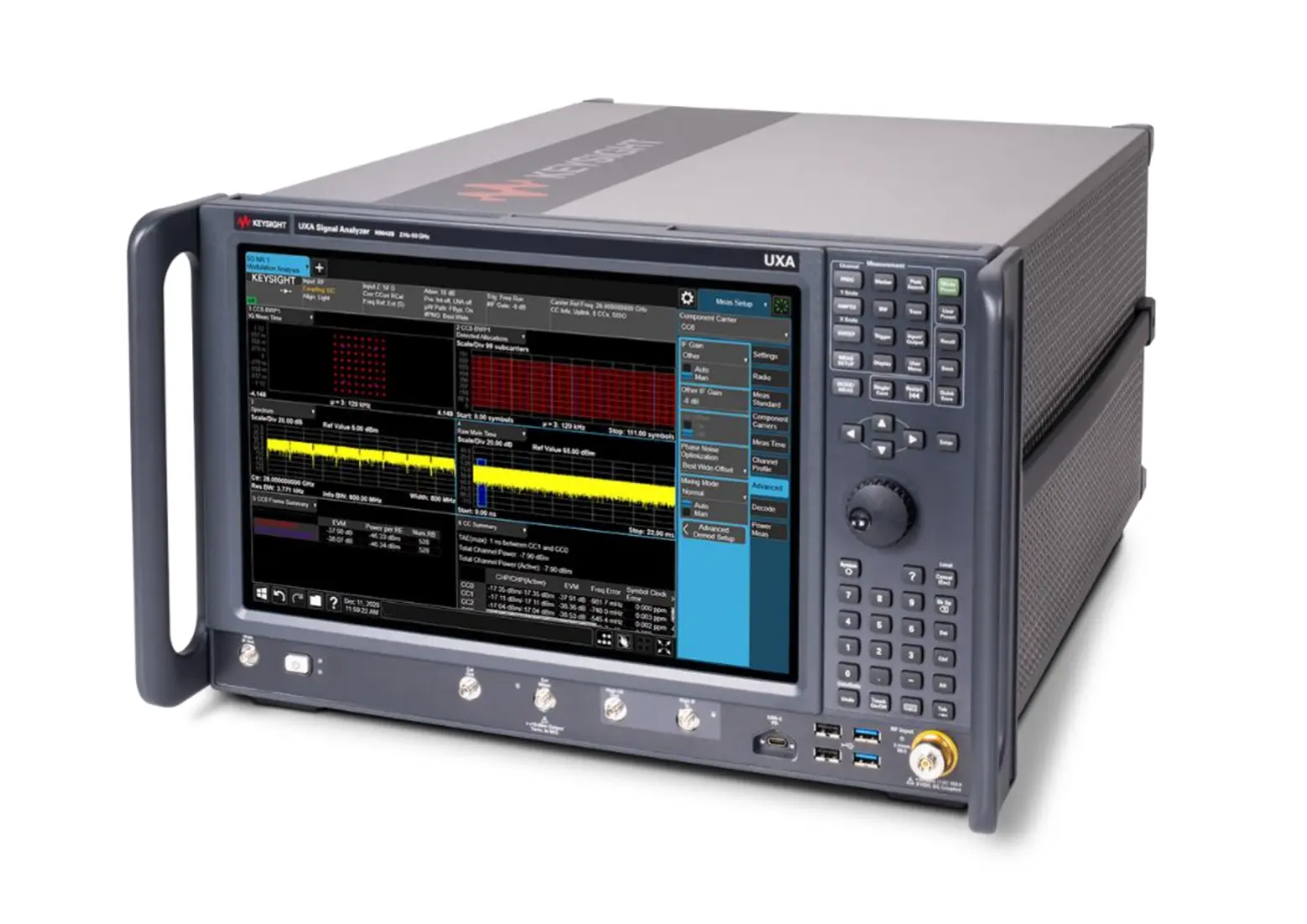

Keysight N9042B Signal Analyzer
Request a quote
Keysight N9042B signal analyzer with frequency to 50 GHz, up to 11 GHz analysis bandwidth, and optimized performance for 5G NR, satellite, and radar measurements with exceptional EVM.
Product details
| Model | N9042B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9042B sets a new performance standard for high-frequency signal analysis, with frequency options to 50 GHz and configurable analysis bandwidth up to 11 GHz using an external digitizer. A redesigned front-end provides exceptional low-noise performance and high dynamic range, making it ideal for both transmitter characterization and elusive signal detection in 5G, satellite, and radar applications.
Key Features
- Frequency range 2 Hz to 50 GHz (with V3050A extender to 110 GHz)
- Analysis bandwidth 1 GHz, 1.5 GHz, 2 GHz, 4 GHz, or 11 GHz (with external digitizer)
- Unpreselected swept coverage 2 Hz to 110 GHz
- Mechanical attenuator: 70 dB (2 dB steps)
- Optional electronic attenuator: 24 dB (1 dB steps)
- Enhanced phase noise performance with DDS-based local oscillator
- Fast sweep capability and fast power measurements
- 14.1-inch capacitive multi-touch display
Applications
- 5G NR transmitter testing with optimized EVM performance
- Satellite communication signal analysis with 4 GHz bandwidth capability
- Radar design and out-of-band emission detection
- Wide-bandwidth signal capture and analysis
- Aerospace and defense measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
| Form Factor | Benchtop |
