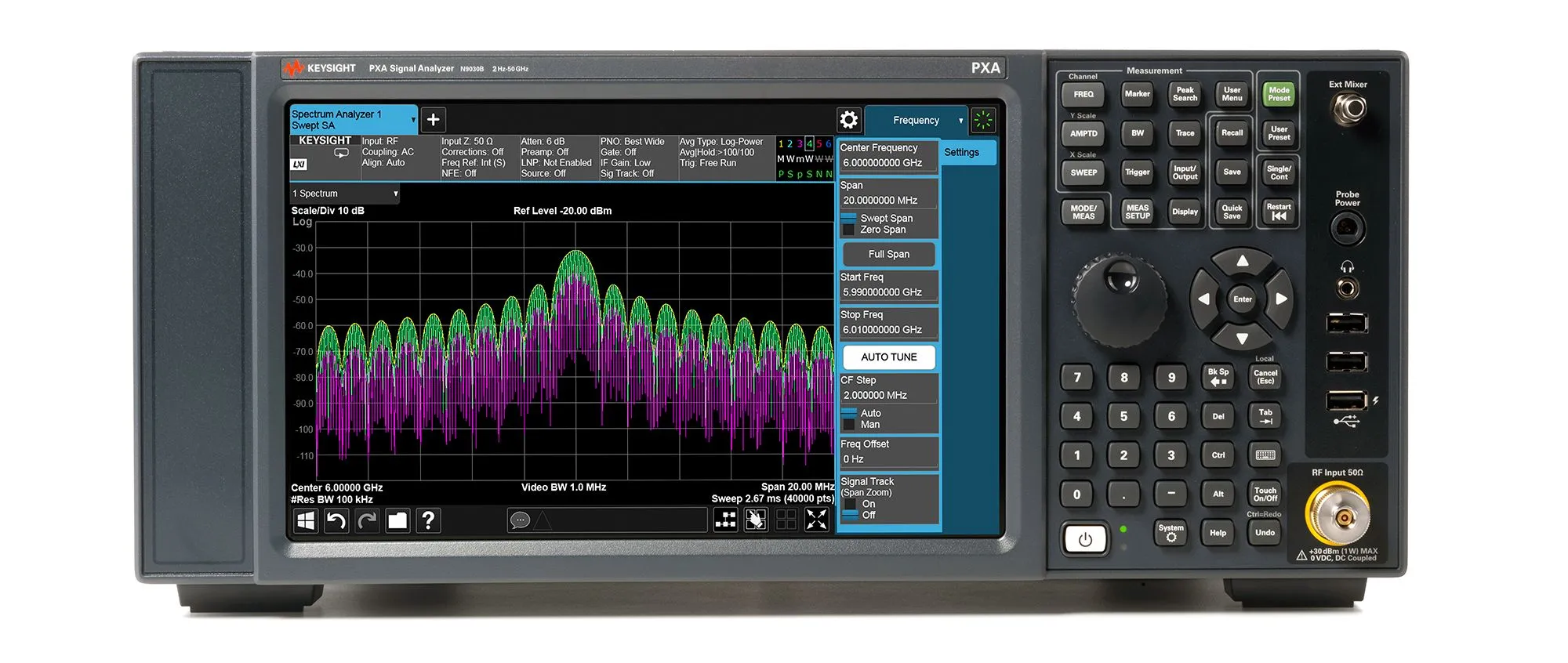

Keysight N9030B PXA X-Series Signal Analyzer
Request a quote
Keysight N9030B provides RF and microwave signal analysis from 2 Hz to 50 GHz with up to 510 MHz bandwidth and industry-leading noise performance.
Product details
| Model | N9030B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9030B is a high-performance PXA X-Series signal analyzer for RF, microwave, and millimeter-wave applications. It provides industry-leading noise performance and wide analysis bandwidth for demanding R&D environments in aerospace, defense, and commercial wireless communications.
Key Features
- Frequency range from 2 Hz to 50 GHz, expandable to 110 GHz with external mixers
- Up to 510 MHz analysis bandwidth for wide signal characterization
- Spurious-free dynamic range (SFDR) exceeding 75 dB
- Phase noise of -136 dBc/Hz at 1 GHz (10 kHz offset)
- Noise Floor Extension (NFE) to reveal hidden signals
- Gap-free streaming up to 255 MHz for real-world signal capture
- Optional real-time spectrum analysis for transient signals
- USB 2.0, GPIB, and LAN connectivity
Applications
- Aerospace and defense signal analysis
- Wireless communications R&D and troubleshooting
- Phase noise and spur searching
- Cellular standards testing (GSM/EDGE, LTE, W-CDMA, NB-IoT)
- Vector modulation analysis with 89600 VSA software
- EMI and electromagnetic compatibility testing
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
| Form Factor | Benchtop |
