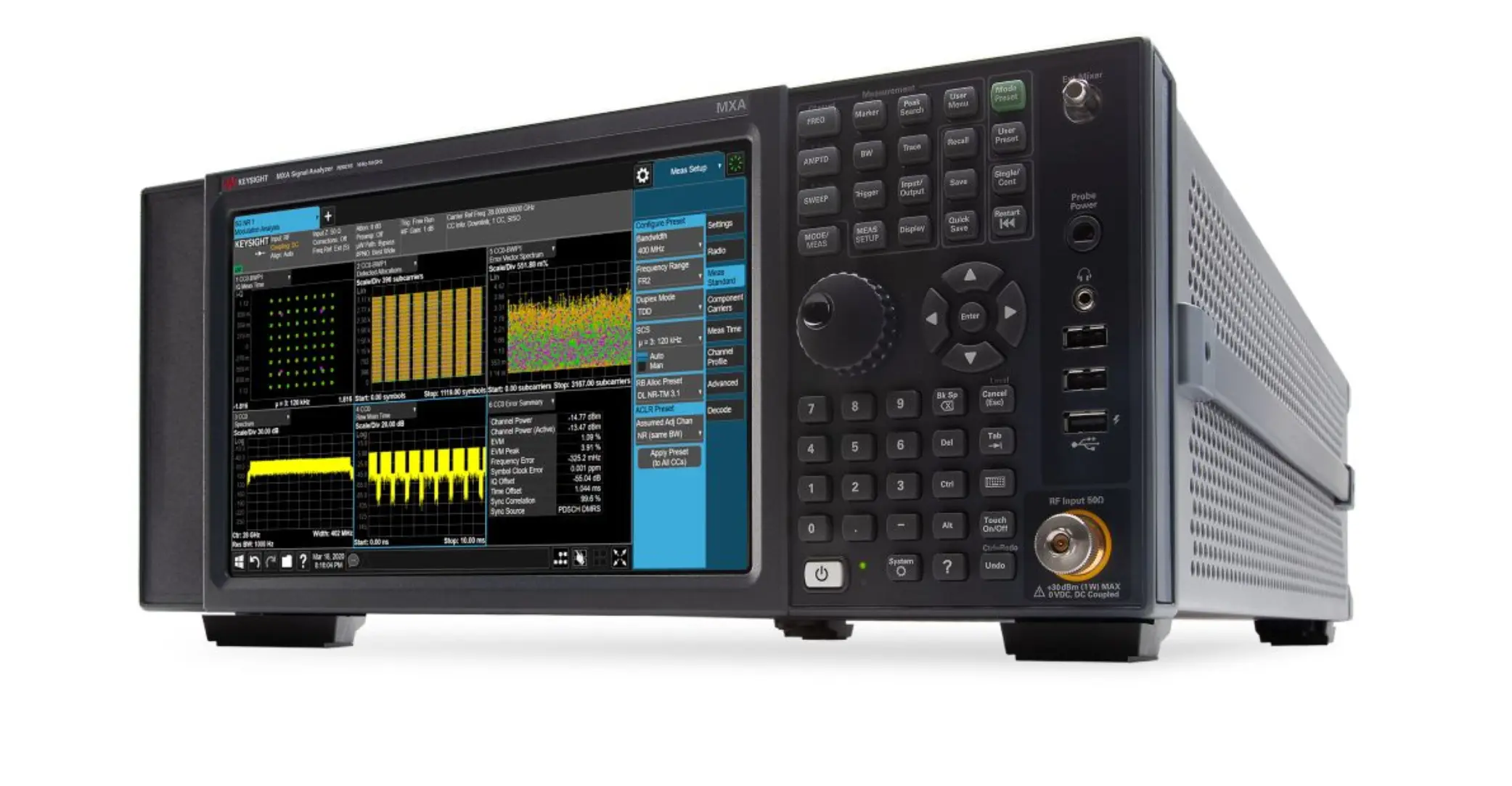

Keysight N9021B MXA Signal Analyzer
Request a quote
Keysight N9021B MXA signal analyzer delivers spectrum analysis with 255 MHz analysis bandwidth, -129 dBc/Hz phase noise, and 5G NR support.
Product details
| Model | N9021B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9021B MXA is a benchtop signal analyzer designed for R&D and manufacturing environments. It combines an intuitive multi-touch interface with advanced signal analysis capabilities to accelerate device characterization and testing. The MXA is particularly suited for wireless device development and verification, offering real-time spectrum analysis and vector modulation capabilities for evaluating new-generation wireless standards.
Key Features
- Real-time analysis bandwidth: 255 MHz or 510 MHz (with option)
- Phase noise: -129 dBc/Hz at 10 kHz offset (1 GHz); -120 dBc/Hz at 10 GHz
- DANL: -172 dBm/Hz at 1 GHz
- Spur-free dynamic range: 72 dBc
- Overall amplitude accuracy: 0.41 dB
- Analyze complex signals such as 5G NR with EVM as low as 1% (–40 dB)
- Test multi-channel base-station power amplifiers
- Minimum POI duration: 3.57 μs
Applications
- 5G NR signal characterization and validation
- GSM/EDGE and LTE/LTE-Advanced testing
- W-CDMA/HSPA/HSPA+ analysis
- Real-time spectrum analysis and EMI emission measurement
- Phase noise and noise figure measurement
- Vector modulation analysis with 89600 VSA software
- Manufacturing and design verification testing
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
