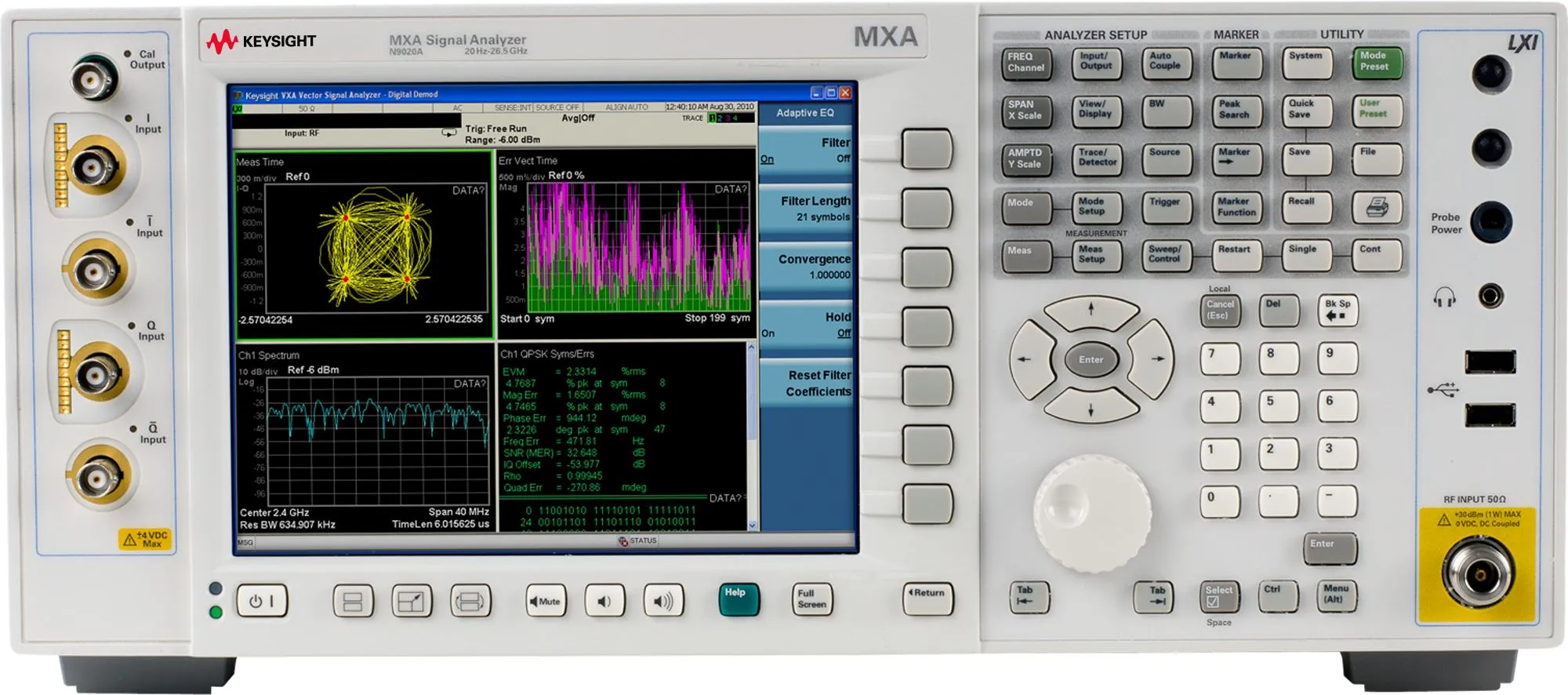

Keysight N9020A MXA Signal Analyzer
Request a quote
Keysight N9020A MXA is a 26.5 GHz spectrum analyzer built for speed with real-time analysis, -166 dBm DANL sensitivity with preamplifier, and advanced cellular and wireless testing.
Product details
| Model | N9020A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9020A MXA Signal Analyzer is designed for wireless device development and manufacturing test, offering rapid local measurements and fast sweep capability to reduce test time. With industry-leading phase noise and real-time spectrum analysis options, it enables thorough signal characterization and troubleshooting for cellular, wireless connectivity, and broadband applications.
Key Features
- Frequency range: 10 Hz to 26.5 GHz with optional mixers to 1.1 THz
- Displayed Average Noise Level (DANL): -166 dBm at 1 GHz with preamplifier
- Third-order intermodulation (TOI) distortion: +20 dBm at 1 GHz
- Phase noise: -114 dBc/Hz at 10 kHz offset (1 GHz carrier)
- Amplitude accuracy: ±0.23 dB (up to 3.6 GHz)
- Analysis bandwidth: 25 MHz standard, up to 160 MHz optional
- Real-time spectrum analysis with up to 160 MHz bandwidth
- Fast sweep for efficient spurious response measurements
- W-CDMA ACLR dynamic range: 78 dBc with noise correction
- 100% probability of intercept with signals as short as 3.57 µs
Applications
- LTE, W-CDMA, and cellular communication standards testing
- WLAN 802.11 and Bluetooth wireless connectivity measurement
- Digital video and broadcasting signal analysis
- Manufacturing test and quality assurance
- Field troubleshooting and signal characterization
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 10GHz <= 20GHz |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
| Form Factor | Benchtop |
