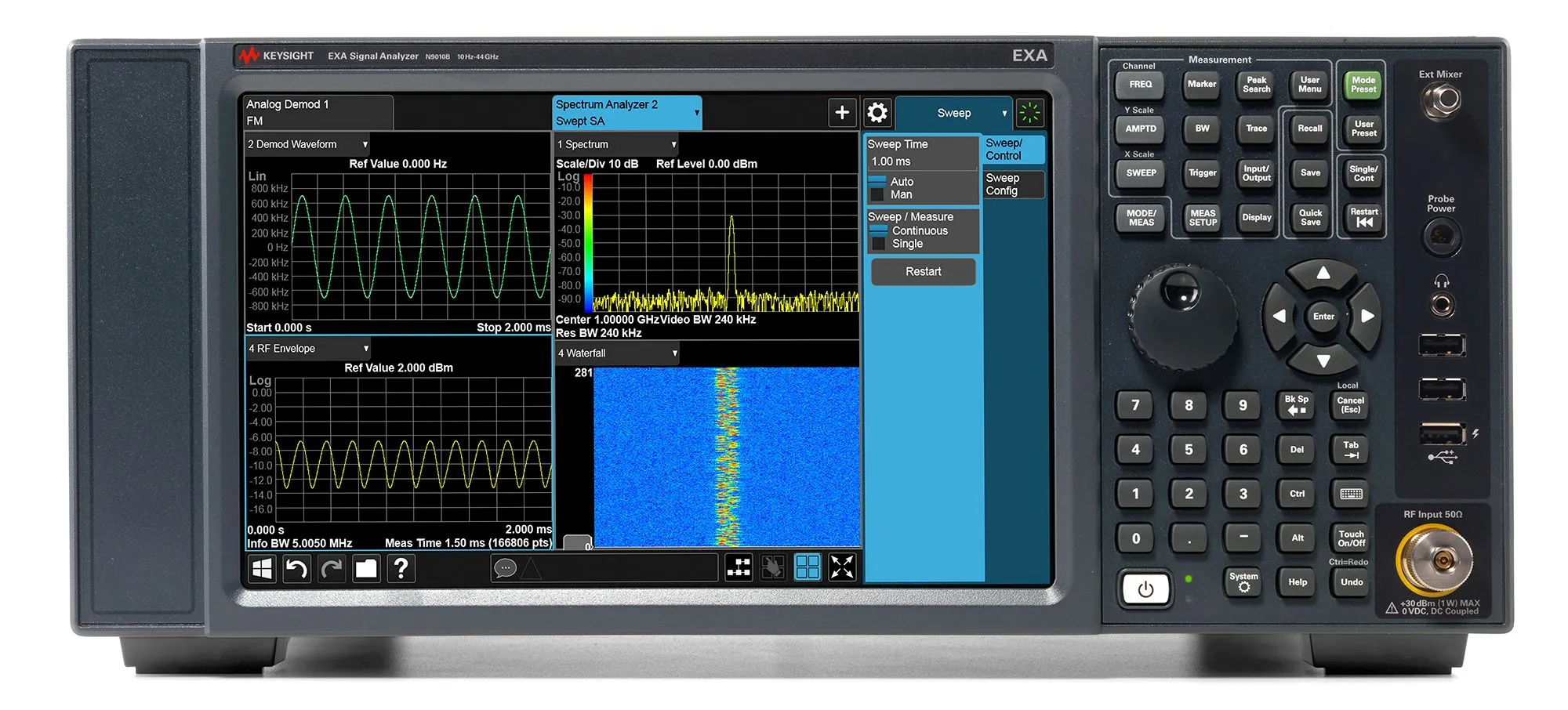

Keysight N9010B Signal Analyzer
Keysight N9010B EXA signal analyzer with RF to millimeter-wave coverage to 44 GHz, 40 MHz analysis bandwidth, and -172 dBm DANL.
Product details
| Model | N9010B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9010B is an EXA X-Series signal analyzer designed for RF, microwave, and millimeter-wave frequency measurements. It combines flexible frequency coverage up to 44 GHz with exceptional measurement performance, including best-in-class level accuracy, displayed average noise level (DANL), and third-order intermodulation distortion (TOI) specifications.
Optional measurement applications provide preconfigured test routines for GSM/EDGE, 802.16e Mobile WiMAX, W-CDMA, HSDPA/HSUPA, and phase-noise measurements. The 89600 VSA software application enables advanced signal demodulation and analysis of over 50 demodulation formats including 2G, 3G, WiMAX, WLAN, and Private Mobile Radio.
Key Features
- Frequency coverage from 3.6 to 44 GHz with external mixer options available up to 1.1 THz
- 40 MHz maximum internal analysis bandwidth
- Displayed Average Noise Level (DANL) of -172 dBm at 1 GHz
- Phase noise performance of -109 dBc/Hz at 1 GHz (10 kHz offset)
- List-sweep mode for fast power measurements at discrete frequency points
- X-Series measurement applications for simplified testing across technologies
Applications
- Cellular network testing (GSM/EDGE, LTE/LTE-Advanced, W-CDMA, HSPA, NB-IoT)
- 89600 VSA software demodulation analysis with 50+ formats
- Analog demodulation and vector modulation analysis
- Noise figure and phase noise measurements
- EMI and pulse analysis
- MATLAB integration for custom analysis
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 10GHz <= 20GHz |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
| Form Factor | Benchtop |
