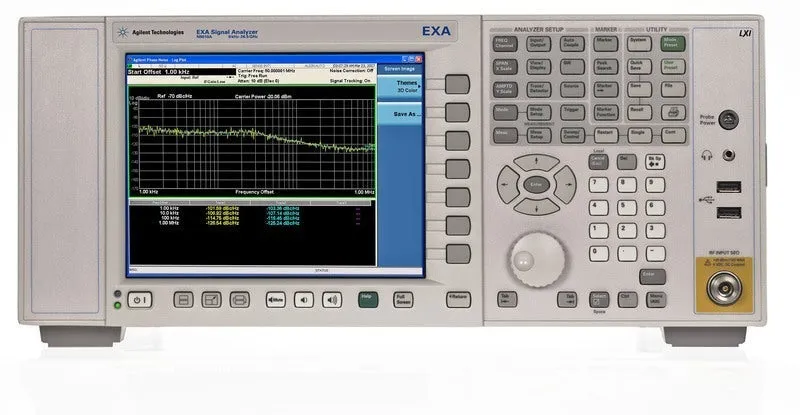

Keysight N9010A EXA Signal Analyzer
Request a quote
Keysight N9010A is a versatile EXA signal analyzer, 300% faster than economy analyzers, with -170 dBm DANL and frequency coverage from DC to 44 GHz.
Product details
| Model | N9010A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9010A EXA is a general-purpose signal analyzer designed for diverse measurement needs with unprecedented speed and performance. The analyzer provides flexible signal analysis capabilities for development, manufacturing, and compliance testing across cellular, wireless, and general-purpose applications. Multiple frequency options enable analysis from DC to millimeter-wave bands.
Key Features
- Fast measurement speeds: 4 ms marker peak search, 30-75 ms mode switching, 11.4 ms remote sweep (GPIB)
- DANL (Displayed Average Noise Level): -170 dBm at 1 GHz
- Third Order Intercept (TOI): +9 dBm
- Resolution Bandwidth: 1 Hz to 3 MHz in 10% steps, plus 4, 5, 6, 8 MHz
- Phase Noise: -99 dBc/Hz at 10 kHz offset, -130 dBc/Hz at 1 MHz offset (at 1 GHz center frequency)
- RF input: Type N (f), 50 ohm
- Connectivity: USB 2.0, GPIB, and LAN (100BaseT), LXI class-C compliant
- Optional 89600 VSA software for advanced demodulation analysis of 50+ formats
Applications
- Cellular: 1xEV-DO, cdma2000, GSM/EDGE, TD-SCDMA, LTE, W-CDMA, HSDPA/HSUPA
- Wireless: 802.16e Mobile WiMAX, WLAN, Private Mobile Radio
- General measurements: EMI precompliance, analog demodulation, phase noise analysis, noise figure, pulse analysis
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 10GHz <= 20GHz |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
