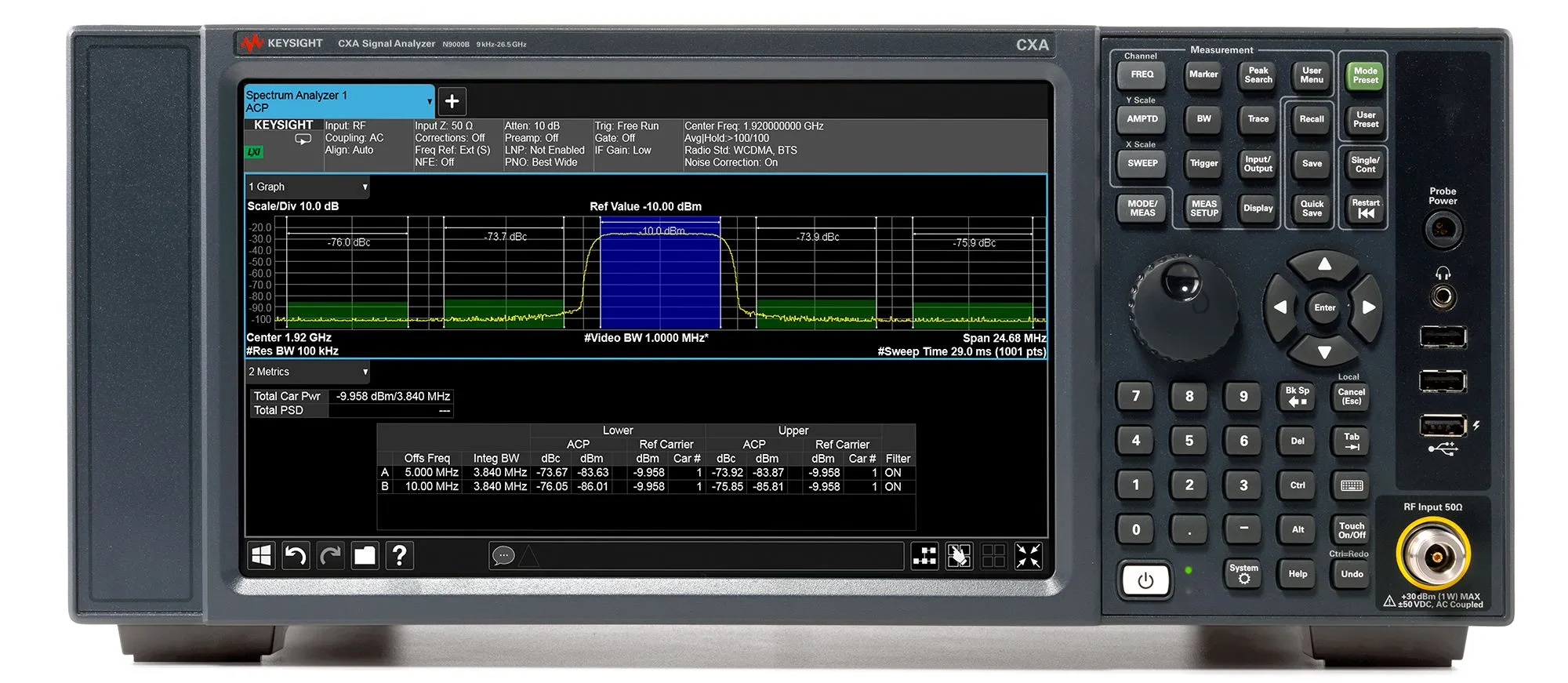

Keysight N9000B Spectrum Analyzer
Request a quote
Keysight N9000B spectrum analyzer offers 9 kHz to 26.5 GHz frequency coverage with up to 25 MHz analysis bandwidth and optional tracking generator for RF signal analysis.
Product details
| Model | N9000B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000B is a CXA signal analyzer that provides versatile, low-cost signal characterization for accelerating product testing and development. With a frequency range from 9 kHz to 26.5 GHz and analysis bandwidth up to 25 MHz, the N9000B helps reduce cost, improve throughput, and enhance design quality. The instrument integrates essential signal analysis capability with X-Series expandability for future measurement needs.
Key Features
- Frequency range: 9 kHz to 26.5 GHz
- Maximum analysis bandwidth: 25 MHz
- Standard attenuator range: 50 dB
- Displayed average noise level (DANL) at 1 GHz: –163 dBm
- Phase noise at 1 GHz (1 MHz offset): –130 dBc/Hz
- PowerSuite one-button power measurements
- Optional built-in tracking generator for stimulus-response measurements
- Advanced measurement applications for cellular, wireless, and general purpose analysis
- Supported technologies: GSM/EDGE, LTE, W-CDMA, NB-IoT, Bluetooth, WLAN 802.11 variants
- Analysis software: 89600 VSA, analog demodulation, noise figure, phase noise, EMI
Applications
- Cellular signal analysis (GSM, LTE, W-CDMA, NB-IoT)
- Wireless connectivity testing (Bluetooth, WLAN, ZigBee, Z-Wave)
- RF and microwave education and training
- Manufacturing test and quality assurance
- Distortion and spur analysis
- Phase noise and EMI measurements
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
