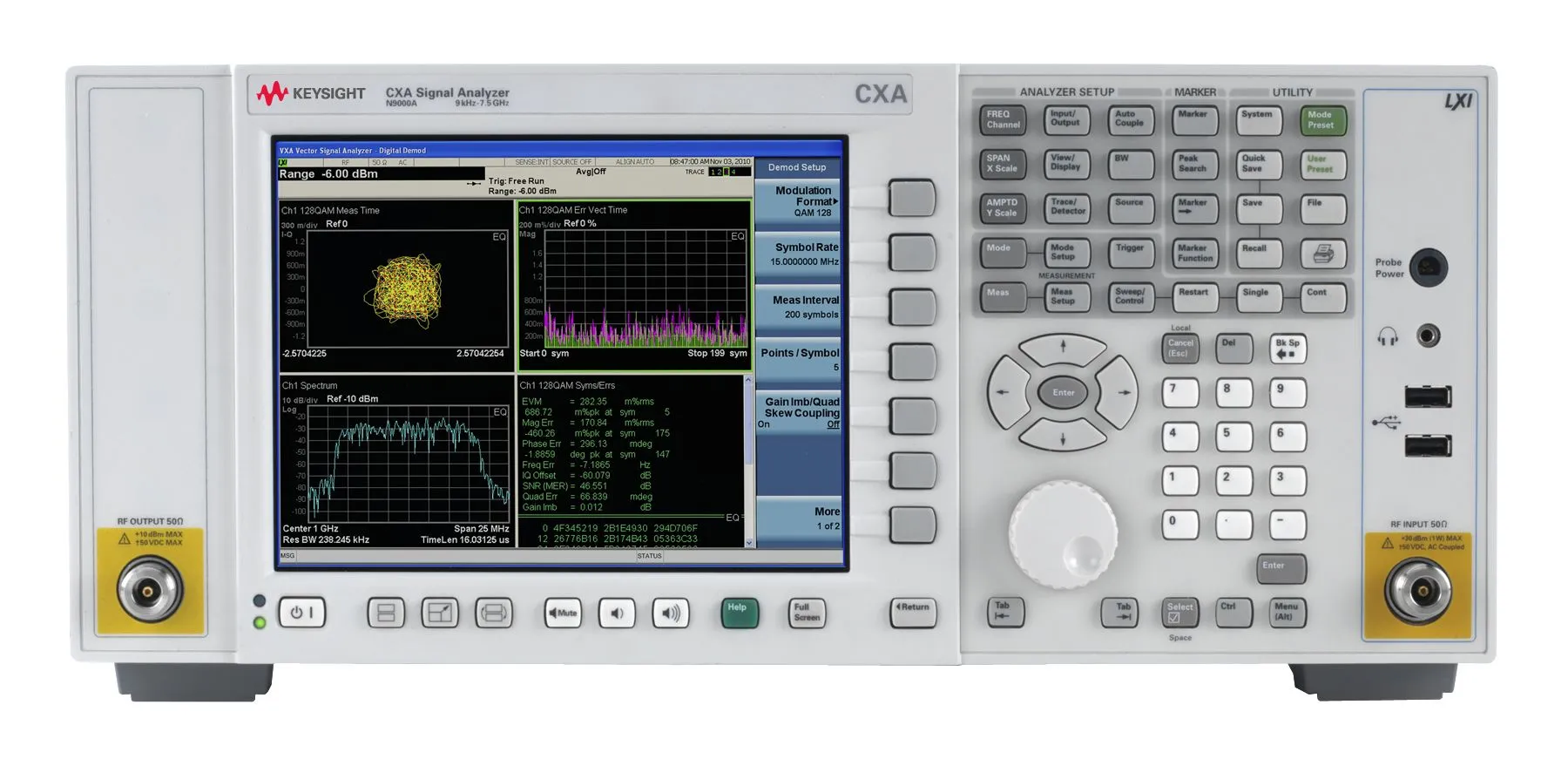

Keysight N9000A CXA Spectrum Analyzer
Request a quote
Keysight N9000A is a low-cost CXA spectrum analyzer with 9 kHz to 26.5 GHz range, optional tracking generator, and X-Series measurement applications.
Product details
| Model | N9000A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000A is a versatile, low-cost spectrum analyzer that provides essential signal characterization capabilities. As part of the CXA signal analyzer family, it helps accelerate product testing and development through cost reduction and improved throughput. The instrument is also an excellent teaching tool for RF technology and signal analysis education.
Key Features
- Frequency range: 9 kHz to 26.5 GHz
- Leading low-cost tool for essential signal characterization
- Optional built-in tracking generator for cost-effective stimulus-response measurements
- Support for X-Series measurement applications
- Measurement capabilities: analog demodulation, noise figure, phase noise, vector signal analysis, EMI precompliance
- Standard attenuator range: 50 dB with 10 dB steps
- Maximum analysis bandwidth: 25 MHz
- DANL at 1 GHz: -163 dBm
Applications
- Cellular signal testing (LTE, GSM, W-CDMA, TD-SCDMA)
- Wireless connectivity evaluation (802.11, Bluetooth)
- Digital video signal analysis (DVB-T/H/T2, ISDB-T)
- General purpose RF signal characterization
- Educational training for RF and microwave technology
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Form Factor | Benchtop |
