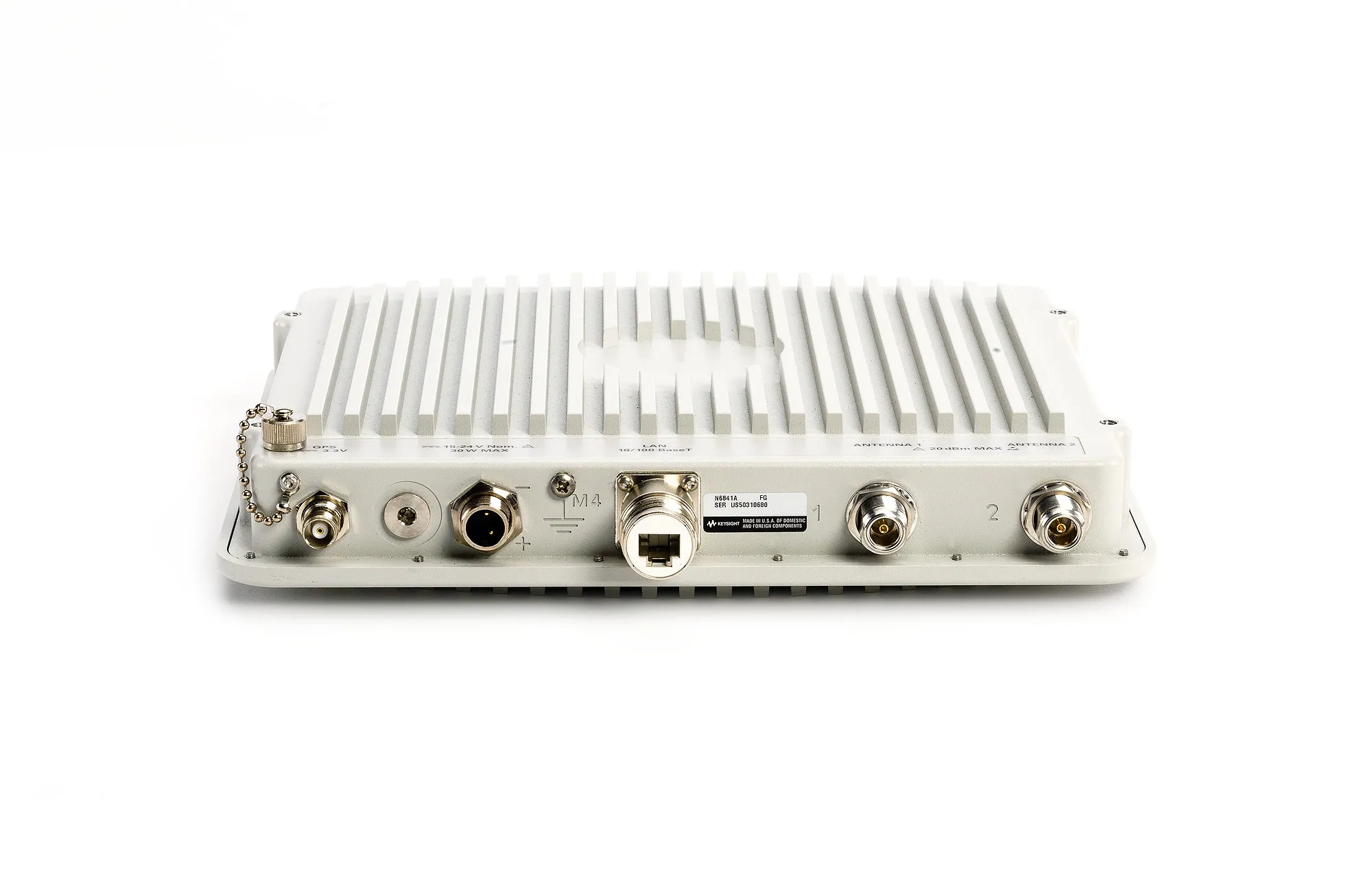

Keysight N6841A RF Sensor
Keysight N6841A is a compact RF sensor for real-time spectrum monitoring from 20MHz to 6GHz, featuring 62dB attenuator range, -150.8dBm DANL, and 20MHz analysis bandwidth.
Product details
| Model | N6841A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N6841A RF Sensor represents a modern approach to spectrum monitoring and signal detection across the 20MHz to 6GHz frequency range. It is designed to handle modern communication signals characterized by wide bandwidth, complex modulation, and time-varying properties with improved sensitivity and dynamic range compared to traditional handheld analyzers.
This sensor delivers real-time monitoring capabilities with geolocation functionality, making it suitable for field deployment, interference identification, and regulatory monitoring applications.
Key Features
- Frequency coverage: 20MHz to 6GHz
- 62dB standard attenuator range with 1dB steps
- DANL at 1GHz: -150.8 dBm
- Maximum analysis bandwidth: 20MHz
- Spur-free dynamic range: 75 dBc
- Third-order intercept (TOI) at 1GHz: greater than 8.5 dBm
- Overall amplitude accuracy: ±2.0 dB
- Real-time signal capture with 1μs minimum pulse detection
- Supports remote monitoring via Signal Surveyor 4D software
- Optional GPS geolocation capability
Applications
- 24/7 real-time spectrum monitoring and surveillance
- Intermittent and transient signal capture and analysis
- RF interference identification and localization
- TDOA geolocation measurements
- Analog signal demodulation and field strength measurement
- Regulatory and compliance monitoring
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 10MHz <= 100MHz |
