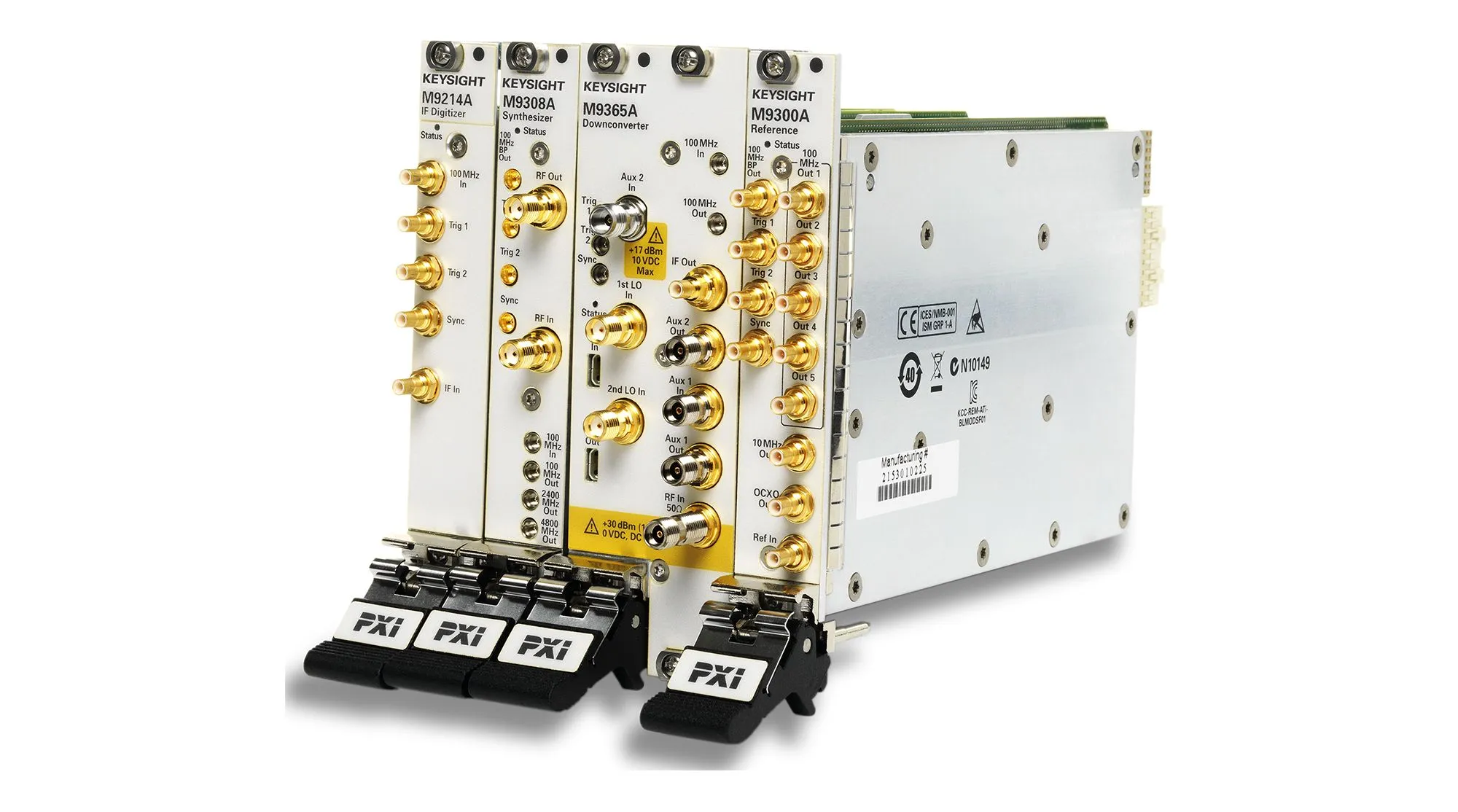

Keysight M9393A PXIe Vector Signal Analyzer
Request a quote
Keysight M9393A is a microwave PXIe vector signal analyzer covering 9 kHz to 8.4, 14, 18, or 27 GHz with ±0.13 dB amplitude accuracy and -168 dBm/Hz DANL for advanced RF measurement.
Product details
| Model | M9393A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight M9393A is a high-performance PXIe vector signal analyzer designed for demanding microwave and RF measurements. Covering frequencies from 9 kHz to 8.4, 14, 18, or 27 GHz (with frequency extension to 50 GHz via Option FRX), it integrates core signal-analysis capabilities with exceptional hardware speed and measurement accuracy. Supporting up to 4 time-synchronous channels, the M9393A adapts to diverse measurement requirements from legacy systems to cutting-edge platforms.
Key Features
- Frequency range: 9 kHz to 8.4, 14, 18, or 27 GHz (up to 50 GHz with Option FRX)
- Analysis bandwidth: 40 MHz standard, with 100 MHz or 160 MHz options
- Optional wideband IF output with Option WB1
- Up to 4 time-synchronous channels
- Absolute amplitude accuracy: ±0.13 dB
- DANL: -168 dBm/Hz with preamplifier and noise corrections
- Third-order intercept (TOI): +31 dBm
- Frequency tuning speed: < 135 μs
Applications
- Microwave and RF component characterization
- Spur and harmonic analysis with hardware optimization
- Multi-channel phase-coherent measurements
- Advanced signal analysis in PXI modular systems
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
