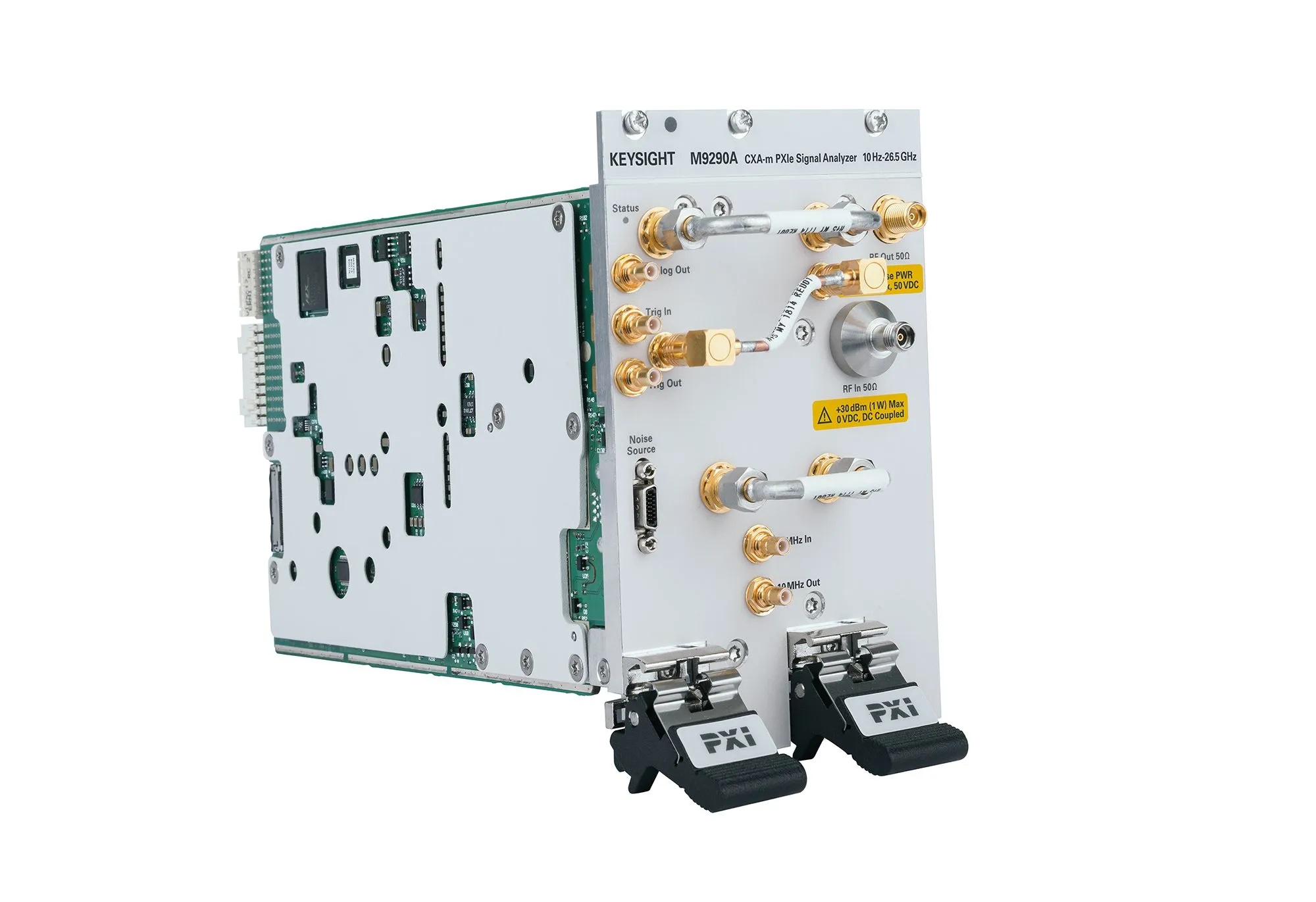

Keysight M9290A PXIe Signal Analyzer
Request a quote
Keysight M9290A is a PXIe signal analyzer offering fully specified performance up to 26.5 GHz with swept and FFT modes for signal analysis and testing.
Product details
| Model | M9290A |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight M9290A CXA-m is a PXIe signal analyzer that brings microwave measurement capabilities into a compact form factor. It delivers fully specified performance up to 26.5 GHz, offering both swept and FFT measurement modes in a single instrument. The analyzer is code-compatible with Keysight's benchtop X-Series signal analyzers and ESA spectrum analyzers, ensuring seamless transitions between R&D, manufacturing, and maintenance environments.
Key Features
- Frequency range options: 3, 7.5, 13.6, or 26.5 GHz
- Swept and FFT measurement modes for flexible signal analysis
- DANL of -163 dBm at 1 GHz
- Fully specified performance up to 26.5 GHz in 4 PXIe slots
- Full-band tracking generator for calibrated stimulus-response measurement
- Code compatible with X-Series and ESA spectrum analyzers
- Ready-to-use drivers and SCPI commands for simplified programming
- Multiple trigger options: RF Burst, Line, External, Periodic, Video
Applications
- Cellular signal analysis (GSM/EDGE, LTE/LTE-Advanced, W-CDMA/HSPA)
- Wireless connectivity testing (Bluetooth)
- General purpose signal analysis and demodulation
- Phase noise and noise figure measurements
- Automated test system integration
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
