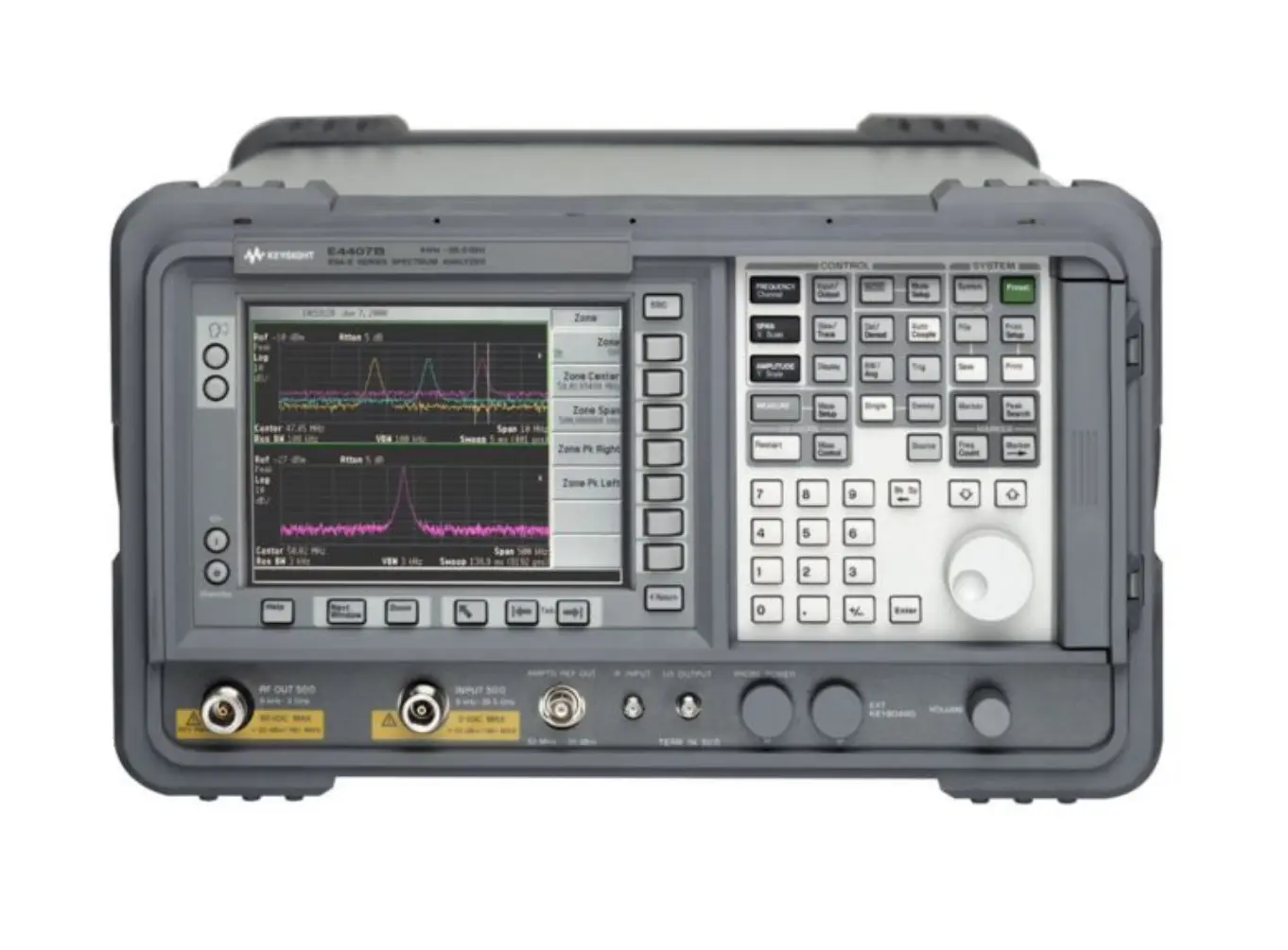

Keysight E4407B Spectrum Analyzer
Request a quote
Keysight E4407B is a general-purpose ESA spectrum analyzer with 9 kHz to 26.5 GHz frequency range, 0.4 dB amplitude accuracy, and 10 MHz analysis bandwidth.
Product details
| Model | E4407B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E4407B ESA spectrum analyzer is a general-purpose instrument designed for applications spanning aerospace and defense to manufacturing. It offers laboratory-grade performance with portability, making it suitable for both bench and field measurements.
Key Features
- 0.4 dB overall amplitude accuracy
- -167 dBm DANL (with internal preamp)
- 10 MHz analysis bandwidth
- Frequency range: 9 kHz to 26.5 GHz
- Segmented sweep for up to 32 discontinuous spans in one sweep
- Rugged and portable design for field-grade performance
- 5 minute warm-up to guaranteed measurement accuracy
Applications
- Aerospace and defense signal analysis
- Manufacturing line quality control
- General-purpose RF and microwave measurements
- Field portable lab-grade measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
