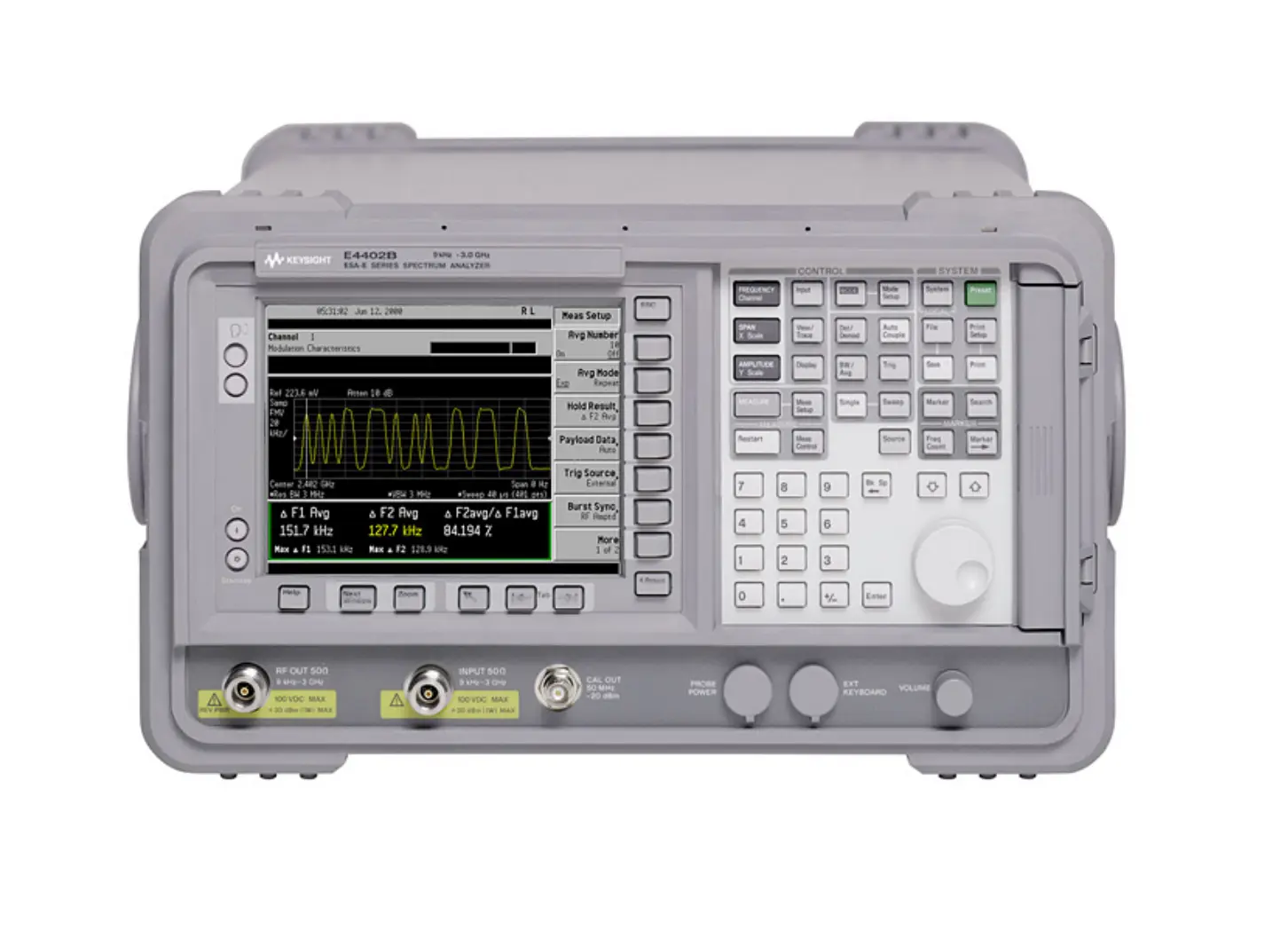

Keysight E4402B Spectrum Analyzer
Request a quote
Keysight E4402B is a general-purpose spectrum analyzer with 9 kHz to 3.0 GHz frequency range, 0.4 dB amplitude accuracy, and -166 dBm DANL.
Product details
| Model | E4402B |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E4402B is a general-purpose spectrum analyzer designed for a wide range of applications from aerospace and defense to manufacturing and research. Built on the ESA-E platform, it provides rugged, portable performance with lab-grade accuracy in field deployments.
Key Features
- Frequency range: 9 kHz to 3.0 GHz
- 10 MHz analysis bandwidth
- Segmented sweep for up to 32 discontinuous frequency spans in a single sweep
- 0.4 dB overall amplitude accuracy
- +16 dBm third-order intercept point (TOI)
- -166 dBm DANL with internal preamp
- Optional 1 Hz narrow resolution bandwidth
- 5 minute warm-up to guaranteed measurement accuracy
- Rugged and portable design for field use
Applications
- Phase noise and noise figure measurements
- GSM/EDGE signal analysis
- CDMA signal analysis
- Power measurements with built-in PowerSuite
- General RF and microwave testing
Configuration Options
- Standard express analyzer (STD) with options AYX, BAA for faster delivery
- Standard express analyzer with tracking generator (STG) including options 1DN, AYX, BAA
- Communications test analyzer (COM) with options 1D5, 1DR, B7D, B7E, BAA
- Custom configurations available for specialized requirements
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Noise Floor | -166 dBm |
| Product Type | Benchtop |
| Series | ESA-E Series |
| Input Connector | Type N (f), BNC (f), 5-pin mini D-SUB |
| Minimum Frequency | 9 kHz |
