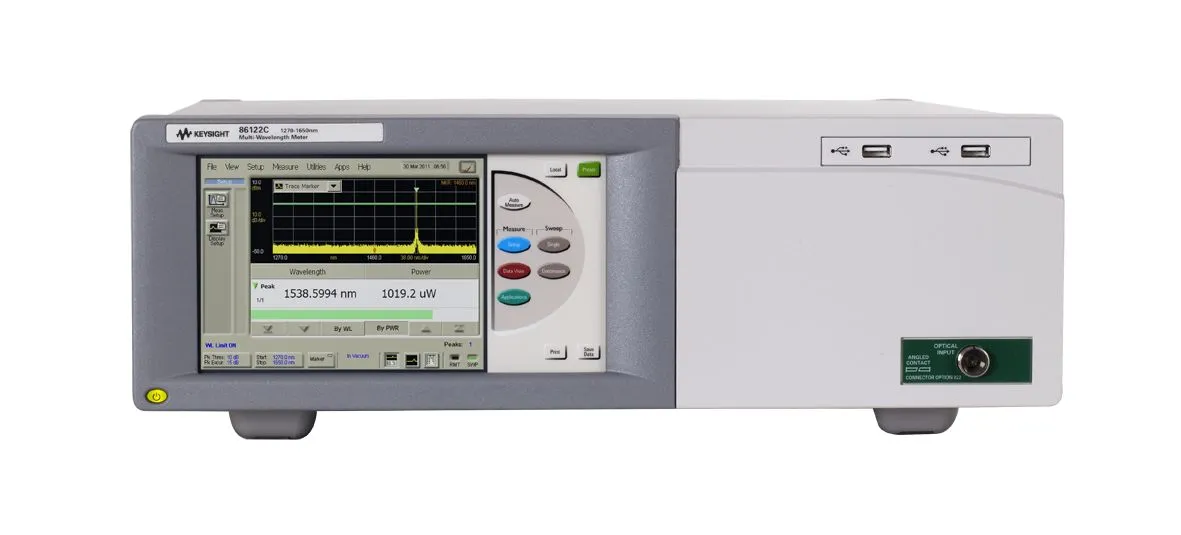

Keysight 86122C Multi-Wavelength Meter

Overview

The Keysight 86122C is a precision multi-wavelength meter designed for developing, manufacturing, and verifying tunable transmitter lasers and optical subsystems in high-speed communication applications. With absolute wavelength accuracy of ±0.2 ppm and differential accuracy of ±0.15 ppm, it operates across the fiber-to-the-home, metro, and long-haul transmission spectrum. The instrument can measure up to 1,000 laser lines simultaneously, supporting fully populated dense-wavelength-division multiplexed (DWDM) systems.

Key Features

• Absolute wavelength accuracy: ±0.2 ppm (±0.3 pm)
• Differential wavelength accuracy: ±0.15 ppm
• Wavelength range: 1270–1650 nm
• Fast wavelength scan in less than 0.3 seconds
• Measurement of up to 1,000 laser lines simultaneously
• Enhanced, stabilized HeNe reference laser with double lifetime
• High input power level: +10 dBm (+18 dBm safe)
• 15 minutes warm-up time for specified accuracy
• Built-in applications for optical signal-to-noise ratio and power drift analysis
• Five-year warranty covering entire instrument and all parts
• Windows 7-based operating system
• Front and rear USB ports for data exchange and peripherals

Applications

• Tunable transmitter laser development and testing
• Optical subsystem verification in high-speed communication systems
• DWDM system channel characterization and quality assurance
• Wavelength and power drift monitoring in manufacturing
• Optical signal-to-noise ratio measurement and analysis
