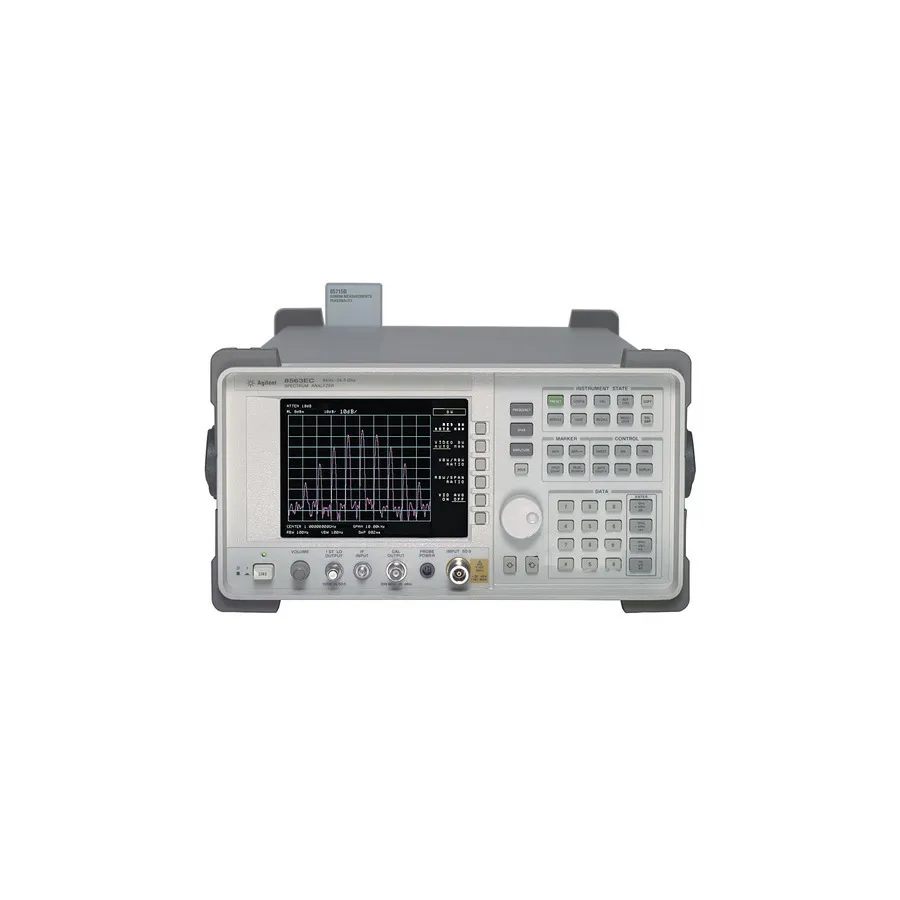

Keysight 8564EC Spectrum Analyzer
Request a quote
Keysight 8564EC is a millimeter-wave spectrum analyzer from 9 kHz to 40 GHz with color display, -130 dBm DANL, and MIL-PRF-28800 class 3 ruggedness.
Product details
| Model | 8564EC |
| Manufacturer | Keysight |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 8564EC is a portable millimeter-wave spectrum analyzer that combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning, and wide dynamic range in a rugged package built to withstand demanding environmental conditions. The 8560EC Series offers measurement capabilities previously found only in larger, more expensive benchtop systems.
Key Features
- Frequency range: 9 kHz to 40 GHz
- Color display for improved visibility
- Fast digital resolution bandwidths: 1, 3, 10, 30, and 100 Hz
- Sensitivity: -130 dBm DANL
- Adjacent channel power, channel power, and carrier power measurements
- Occupied bandwidth percentage and time-gated measurements
- 1 Hz counter resolution and precision timebase
- MIL-PRF-28800, class 3 rugged construction
- Measurement personalities for digital radio and phase noise analysis
Applications
- Adjacent-channel power (ACP) testing of burst carrier signals
- Digital modulation analysis
- Time-gated signal analysis for pulsed RF, TDMA, and burst-modulated signals
- Phase noise measurements
- Millimeter-wave applications with harmonic mixers
Specifications
| Frequency Range | 30.0 - 60.0 GHz |
| Maximum Frequency | 40 GHz |
| Tracking Generator | No |
| Noise Floor | -130 dBm |
| Product Type | Benchtop |
| Series | 8560 EC Series |
| Minimum Frequency | 30 Hz |
