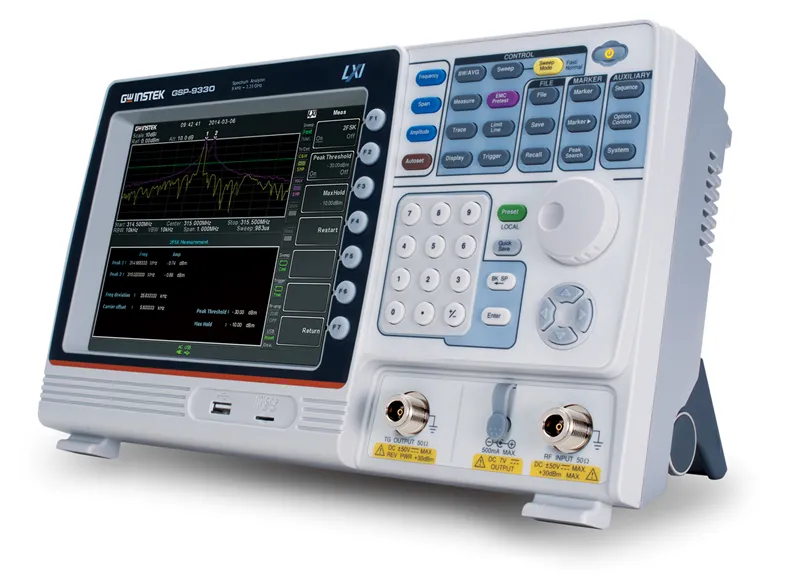

GW Instek GSP-9330TG Spectrum Analyzer with Tracking Generator
Request a quote
GW Instek GSP-9330TG is a high-speed 9kHz–3.25GHz spectrum analyzer with integrated tracking generator, 204 microsecond sweep speed, and EMC pretest capability.
Product details
| Model | GSP-9330TG |
| Manufacturer | GW Instek |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The GW Instek GSP-9330TG is a high-speed 9kHz–3.25GHz spectrum analyzer with integrated tracking generator, designed for advanced RF measurement and EMC testing. It delivers the fastest sweep speed in its class at 204 microseconds, enabling easy capture and analysis of modulated signals including TPMS, frequency hopping, and ISM band signals. With built-in EMC pretest functionality and comprehensive modulation analysis capabilities, the GSP-9330TG accelerates product development and verification timelines.
Key Features
- Frequency Range: 9kHz – 3.25GHz with Integrated Tracking Generator
- Fastest Sweep Speed: 204 microseconds
- Frequency Stability: 0.025ppm; Aging Rate: 1ppm/year
- Resolution Bandwidth (RBW): 1Hz – 1MHz with EMI filters at 200Hz, 9kHz, 120kHz, 1MHz
- Sensitivity: -149dBm/Hz (with preamplifier enabled)
- Built-in Preamplifier, 50dB Attenuator, and Sequence Function
- EMC Pretest Function with Quasi-Peak and Average EMI detection modes
- Modulation Analysis: 2FSK, AM/FM, ASK/FSK Demodulation and Analysis
- Advanced Measurements: P1dB point, Harmonic, Channel Power, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
- Display Modes: Spectrogram, Topographic, and Split-Window
- Remote Control Interfaces: LAN, USB, RS-232
- Optional: GPIB Interface
Applications
- EMC/EMI pretest and certification testing
- Modulated signal capture and analysis (TPMS, Bluetooth frequency hopping, ISM band)
- Transient signal measurement
- RF and microwave signal analysis
- Product development and verification
Included Accessories
- Power Cord
- Certificate of Calibration
- CD-ROM with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide, and IVI Driver
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3.25 GHz |
| Tracking Generator | Yes |
| Noise Floor | -60 dBm |
| Product Type | Benchtop |
| Series | GSP-9300 Series |
| Battery Type | Li-Ion |
| Display Type | 8.4" LCD |
| Includes | Power Cord, Certificate of Calibration, CD-ROM (with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver) |
| Input Connector | N-type female, SMB male, USB A plug ver 2.0, RJ-45, 3.5mm stereo jack, D-sub 9-pin female |
| Interface | GPIB, LAN / Ethernet, RS-232, USB |
| Minimum Frequency | 9 kHz |
| Warranty | 2 Years |
