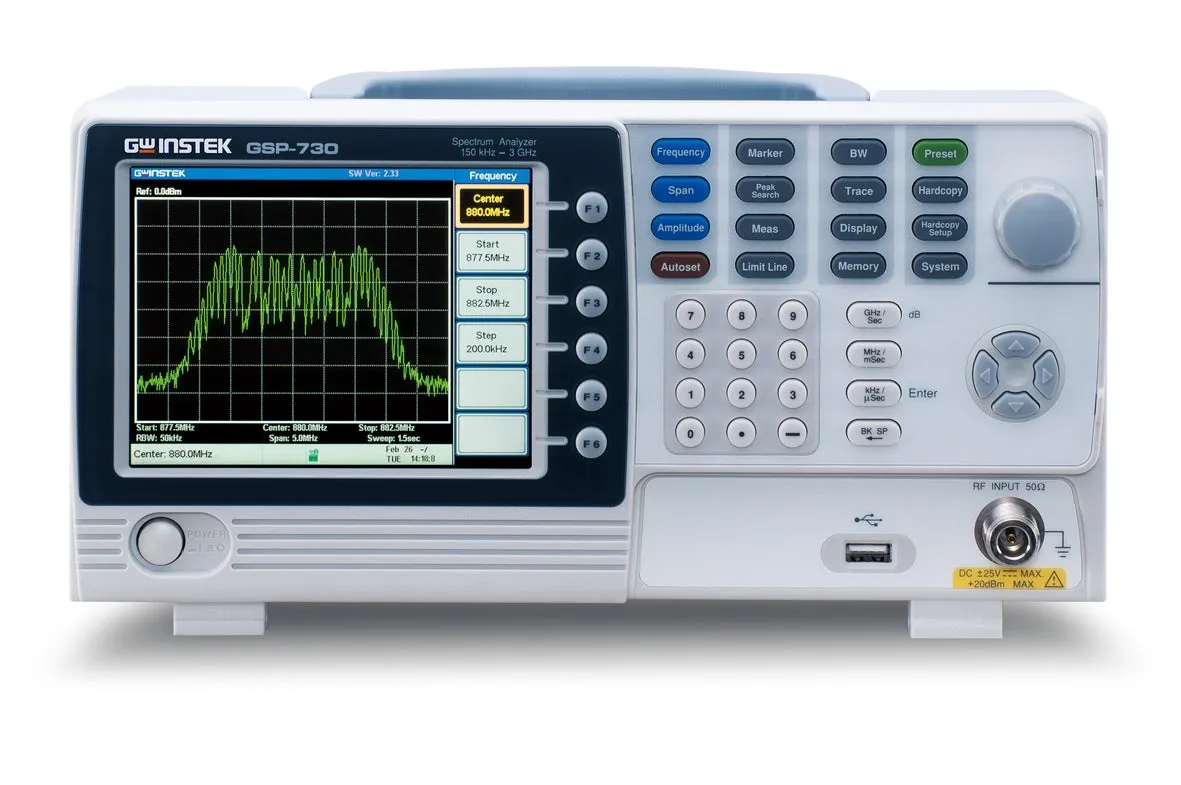

GW Instek GSP-730 Spectrum Analyzer
Request a quote
GW Instek GSP-730 is a 3GHz spectrum analyzer for RF communication education with 150kHz to 3GHz frequency range, remote control, and training system integration.
Product details
| Model | GSP-730 |
| Manufacturer | GW Instek |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The GW Instek GSP-730 is a 3GHz spectrum analyzer designed specifically for RF communication education. It provides full spectrum analysis functionality in a compact, budget-friendly package, making it an economical solution for universities, colleges, vocational schools, and training centers requiring hands-on RF and telecommunication instruction.
Key Features
- Frequency range 150kHz to 3GHz
- Noise floor ≤ -100dBm
- Resolution bandwidth (RBW) options: 30kHz, 100kHz, 300kHz, 1MHz
- Autoset function for quick parameter optimization
- Advanced measurements: ACPR, CHPW, OCBW
- 3 color-coded traces for simultaneous signal monitoring
- Split window display function
- Limit line function for pass/fail testing
- Remote control software for PC integration
- USB Device/Host and RS-232C connectivity
Applications
- RF communication education and training
- Telecommunication system courses
- Integration with RF trainer systems (GRF-1300 / GRF-1300A)
- Signal analysis and characterization
Included Accessories
- Quick start manual
- User manual (on CD)
- Power cord
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Form Factor | Benchtop |
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Noise Floor | -100 dBm |
| Product Type | Benchtop |
| Series | GSP Series |
| Display Type | 5.6” TFT LCD |
| Includes | Quick Start manual *1, User Manual CD *1, Power Cord *1 |
| Interface | USB Device/Host, RS-232C |
| Minimum Frequency | 150 kHz |
