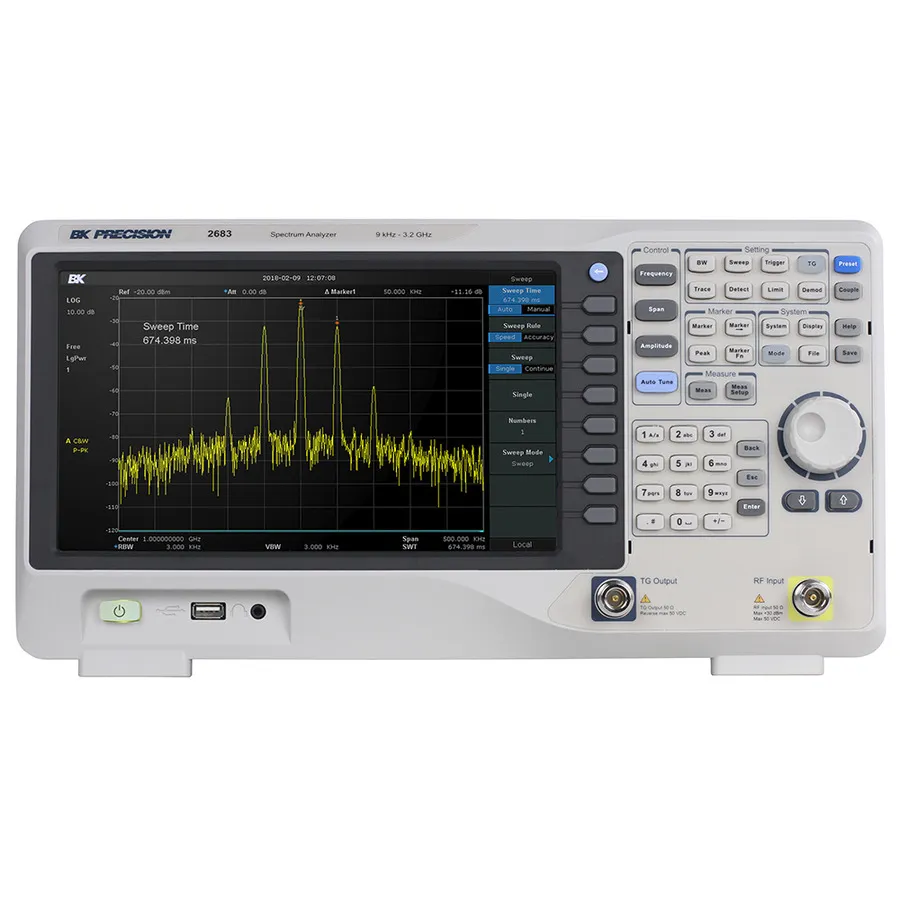

B&K Precision 2683 Spectrum Analyzer
Request a quote
B&K Precision 2683 spectrum analyzer with 9 kHz to 3.2 GHz range, tracking generator, and 10.1-inch color display.
Product details
| Model | 2683 |
| Manufacturer | B&K Precision |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The B&K Precision 2683 is a high-performance spectrum analyzer covering 9 kHz to 3.2 GHz with integrated tracking generator. It is designed for RF characterization, site surveying, EMI pre-compliance testing, and 2-way radio applications.
Key Features
- Frequency range: 9 kHz to 3.2 GHz
- High sensitivity: -161 dBm/Hz displayed average noise level (DANL)
- Low phase noise: -98 dBc/Hz at 10 kHz offset
- 1 Hz minimum resolution bandwidth (RBW)
- Integrated tracking generator and preamplifier
- 10.1-inch wide-screen color display (1024 x 600)
- Level uncertainty: ±0.7 dB
- LAN and USBTMC connectivity for remote control
- USB host port for data storage and waveform capture
Applications
- RF device characterization and frequency response measurement
- EMI pre-compliance testing
- 2-way radio site surveying
- General spectrum analysis and signal monitoring
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3.2 GHz |
| Tracking Generator | Yes |
| Noise Floor | -161 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | 2680 Series |
| Display Type | 10.1" LCD TFT Color |
| Includes | Power Cord, Certificate of Calibration |
| Input Connector | N (f) |
| Interface | LAN, USB (USBTMC) |
| Minimum Frequency | 9 kHz |
| Resolution | 1 Hz to 1 MHz |
| Warranty | 3 Years |
