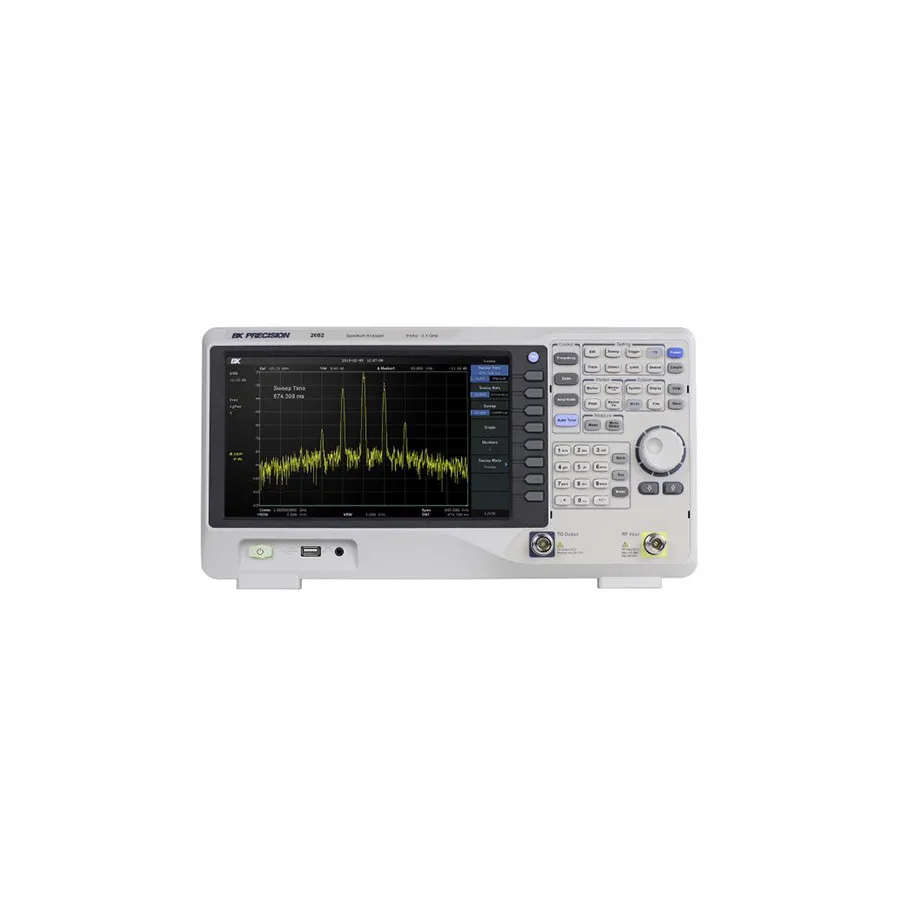

B&K Precision 2682 Spectrum Analyzer
Request a quote
B&K Precision 2682 is a spectrum analyzer covering 9 kHz to 2.1 GHz with tracking generator, -161 dBm sensitivity, and 1 Hz minimum resolution bandwidth.
Product details
| Model | 2682 |
| Manufacturer | B&K Precision |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
B&K Precision 2682 is a spectrum analyzer covering 9 kHz to 2.1 GHz, ideal for characterizing RF devices, performing EMI pre-compliance testing, and troubleshooting radio frequency systems. The instrument combines high sensitivity and low phase noise with a comprehensive feature set for professional frequency domain analysis.
Key Features
- Frequency range: 9 kHz to 2.1 GHz
- High sensitivity: -161 dBm/Hz displayed average noise level
- Low phase noise: -98 dBc/Hz at 10 kHz offset
- 1 Hz minimum resolution bandwidth
- Preamplifier and tracking generator included standard
- 10.1-inch widescreen color display (1024 x 600)
- LAN and USBTMC connectivity for remote control
- USB host port for waveform and setup storage
- Optional reflection measurement capability (VSWR, return loss)
- Optional EMI pre-compliance mode with quasi-peak detection
Applications
- Two-way radio testing and characterization
- Site surveying and RF coverage analysis
- EMI pre-compliance testing
- RF device frequency response characterization
- Spectrum monitoring and analysis
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 2.1 GHz |
| Tracking Generator | Yes |
| Noise Floor | -161 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | 2680 Series |
| Display Type | 10.1" LCD TFT Color |
| Includes | Power Cord, Certificate of Calibration |
| Input Connector | N (f) |
| Interface | LAN, USB (USBTMC) |
| Minimum Frequency | 9 kHz |
| Number of Ports | 1 |
| Resolution | 1 Hz to 1 MHz |
| Warranty | 3 Years |
