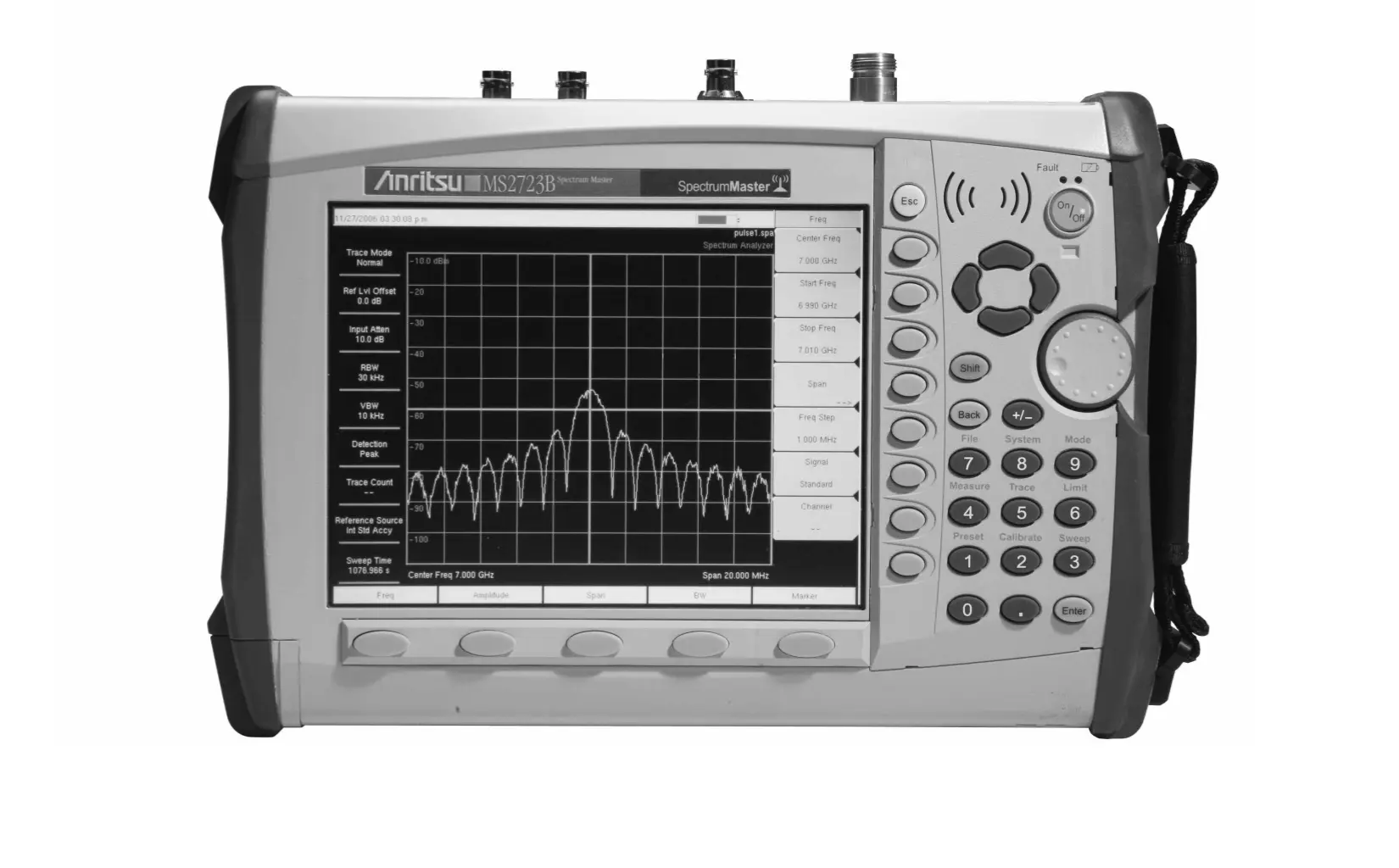

Anritsu MS2723B Spectrum Master Analyzer
Request a quote
Anritsu MS2723B Spectrum Master offers 9 kHz to 13 GHz coverage with 1 Hz to 3 MHz RBW, built-in AM/FM/SSB demodulator, and low phase noise for wireless testing.
Product details
| Model | MS2723B |
| Manufacturer | Anritsu |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2723B Spectrum Master is a handheld spectrum analyzer providing continuous frequency coverage from 9 kHz to 13 GHz for demanding RF and microwave measurements. Designed for wireless professionals, the MS2723B delivers the performance needed for spectrum monitoring, WiFi installation and testing, RF and microwave signal measurements, and cellular signal analysis in harsh RF and physical environments.
Key Features
- Continuous frequency coverage from 9 kHz to 13 GHz
- Very low phase noise: -104 dBc/Hz typical at 10 kHz offset at 2 GHz
- Built-in AM/FM/SSB demodulator and preamplifier
- 65 dB step attenuator for flexible signal measurement
- True RMS detection capability
- Portable design with 2+ hours of battery life (3.4 kg / 7.5 lb)
- 3G modulation analysis and optional GPS receiver
- Quasi-peak detector and CISPR bandwidths for compliance testing
Applications
- Spectrum monitoring and regulatory compliance testing
- WiFi and WiFi5 installation and performance testing
- RF and microwave signal measurement and analysis
- Cellular base station and mobile signal verification
- Field measurements in harsh RF and physical environments
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
