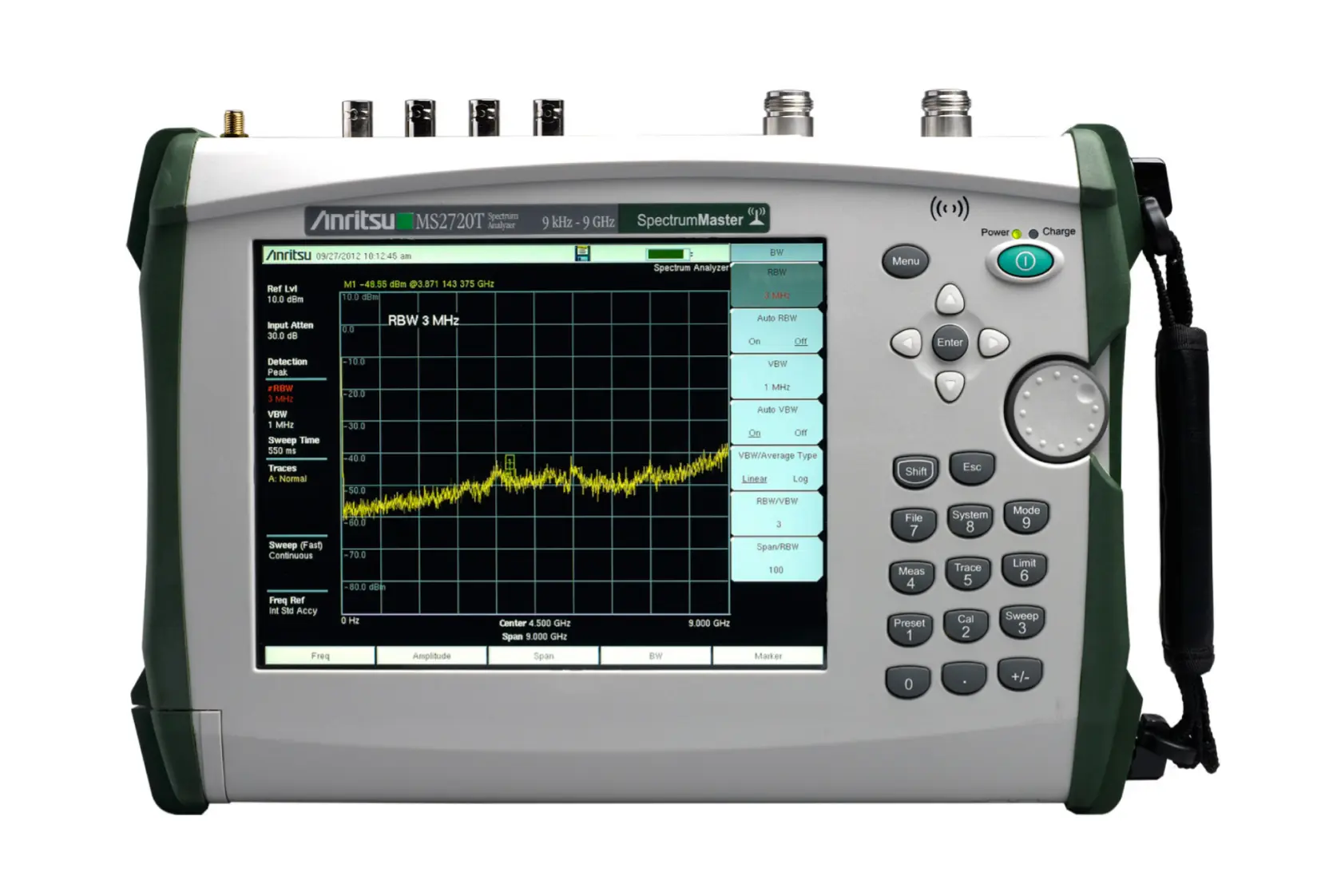

Anritsu MS2720T Spectrum Analyzer

Overview

The Anritsu MS2720T Spectrum Master is Anritsu's highest-performing handheld spectrum analyzer, representing the seventh generation of the Spectrum Master series. This advanced instrument combines over 30 analyzers in one platform, making it ideal for professionals who require the best performance in dynamic range, sensitivity, phase noise, and sweep speed for comprehensive RF and wireless signal analysis.

Available in multiple frequency ranges up to 43 GHz, the MS2720T features a touchscreen interface, full-band tracking generators to 20 GHz, broadband preamplifiers, and enhanced measurement capabilities for the most demanding field applications.

Key Features

• Frequency options: 9 kHz to 9 GHz, 13 GHz, 20 GHz, 32 GHz, or 43 GHz
• Dynamic range exceeding 106 dB in 1 Hz RBW @ 2.4 GHz
• High sensitivity: -164 dBm DANL in 1 Hz RBW @ 1 GHz with preamp
• Improved phase noise: -112 dBc/Hz @ 10 kHz offset at 1 GHz
• Broadband preamplifiers providing approximately 17 dB increased sensitivity
• Tracking generators from 100 kHz to 20 GHz (depending on model)
• Burst Detect™ captures signals as short as 200 μs
• Multiple signal analyzers for LTE, CDMA, W-CDMA, WiMAX, GSM, and TD-SCDMA
• Interference Analyzer with on-screen mapping
• Touchscreen interface operable with heavy gloves
• GPS receiver with improved time base accuracy better than 25 ppb
• Extended battery life with multiple display options

Applications

• Spectrum monitoring and interference analysis
• Mobile and cellular network installation and troubleshooting
• RF and microwave component testing
• Passive intermodulation (PIM) detection and hunting
• Broadband signal capture and waveform analysis
• Coverage mapping and field strength measurements
• Broadcast and digital television signal analysis
• Wireless device certification and verification
