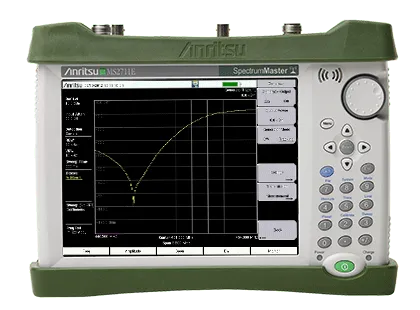

Anritsu MS2711E Spectrum Master
Request a quote
Anritsu MS2711E is a rugged handheld spectrum analyzer with 9 kHz to 3 GHz coverage, DANL of −142 dBm, interference mapping, and integrated power meter and GPS options.
Product details
| Model | MS2711E |
| Manufacturer | Anritsu |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2711E Spectrum Master is a field-proven handheld analyzer designed for complex interference analysis and signal quality assessment in wireless systems. It provides measurements for AMPS, TDMA, CDMA, and GSM transmitters, identifying out-of-band spurious signals and enabling field strength measurements for propagation analysis and electromagnetic leakage detection.
Key Features
- Frequency range: 9 kHz to 3 GHz
- Dynamic range greater than 85 dB in 100 Hz RBW
- DANL: −142 dBm in 100 Hz RBW with preamplifier option
- Phase noise: −90 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency accuracy: less than ±50 ppb with GPS
- Touchscreen interface with intuitive menu navigation
- Three-hour battery life, rugged and compact design
- Six markers with limit lines
- Automatic, manual, and dynamic attenuator control
- Standard three-year warranty
Applications
- Signal strength monitoring and RSSI measurements
- Channel power and adjacent channel power ratio analysis
- Out-of-band spurious signal detection
- Field strength and propagation coverage measurements
- Electromagnetic leakage identification
- Carrier to interference ratio measurements
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
