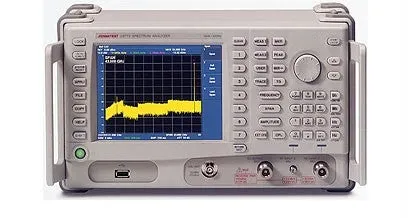

Advantest U3772 Portable Spectrum Analyzer
Request a quote
Advantest U3772 — 43 GHz portable microwave spectrum analyzer with battery operation, 100 Hz RBW, 3-way power supply for field and lab use.
Product details
| Model | U3772 |
| Manufacturer | Advantest |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Advantest U3772 is a portable 43 GHz spectrum analyzer designed for microwave production lines, field installation and maintenance of links, satellite transmission work, and laboratory applications. It is smaller and lighter than competing microwave models, with battery operation capability for true portable field measurements.
Key Features
- 43 GHz frequency range (9 kHz to 43 GHz)
- 3-way power supply: 220 V AC, 11–17 V DC, or battery operation
- Preamp to 8 GHz with 100 Hz resolution bandwidth
- 6.5-inch TFT display
- Modern interfaces: LAN, USB, GPIB
- Multiple automatic pushbutton measurements
- Compact and lightweight design (308 × 175 × 209 mm, 5.6 kg)
Applications
- Microwave production line testing
- Field installation and maintenance of microwave links
- Satellite transmission system verification
- In-house laboratory measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
