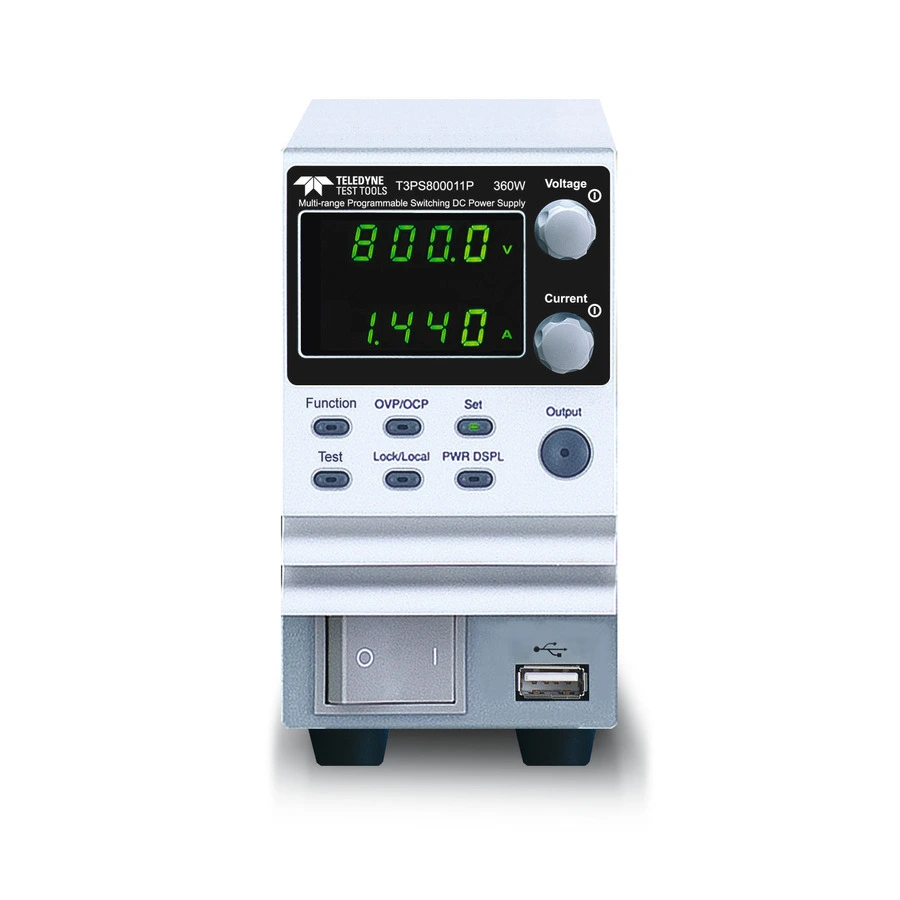

Teledyne LeCroy T3PS800011P Single Output DC Power Supply

Overview

The Teledyne LeCroy T3PS800011P is a single-output high-voltage DC programmable power supply designed for demanding applications requiring extended voltage range and efficient power delivery. With a maximum output of 800V at 1.44A (360W total), the multi-range operation feature provides unprecedented flexibility in voltage and current configuration within the rated power envelope. Series and parallel operation modes enable integration into larger system architectures.

Key Features

• Single output: 0-800V, 0-1.44A, 360W maximum power
• Multi-range operation extending voltage and current limits up to 3× compared to conventional supplies
• Adjustable slew rates for smooth voltage and current level transitions
• Constant voltage and constant current operation
• Fully programmable via LAN and USB interface
• Overvoltage protection (OVP) and overcurrent protection (OCP)
• Rear panel external control for power on/off and voltage/current monitoring
• Series operation (up to 2 units) for 1600V capability
• Parallel operation (up to 3 units) for higher current delivery
• High efficiency and high power density 1/6 rack mount design

Applications

• High-voltage component and module testing
• HV semiconductor characterization and screening
• Power supply design validation and efficiency testing
• Extended-range voltage system integration

Included Accessories

• Air filter
• Analog control protection dummy
• Analog control lock level
