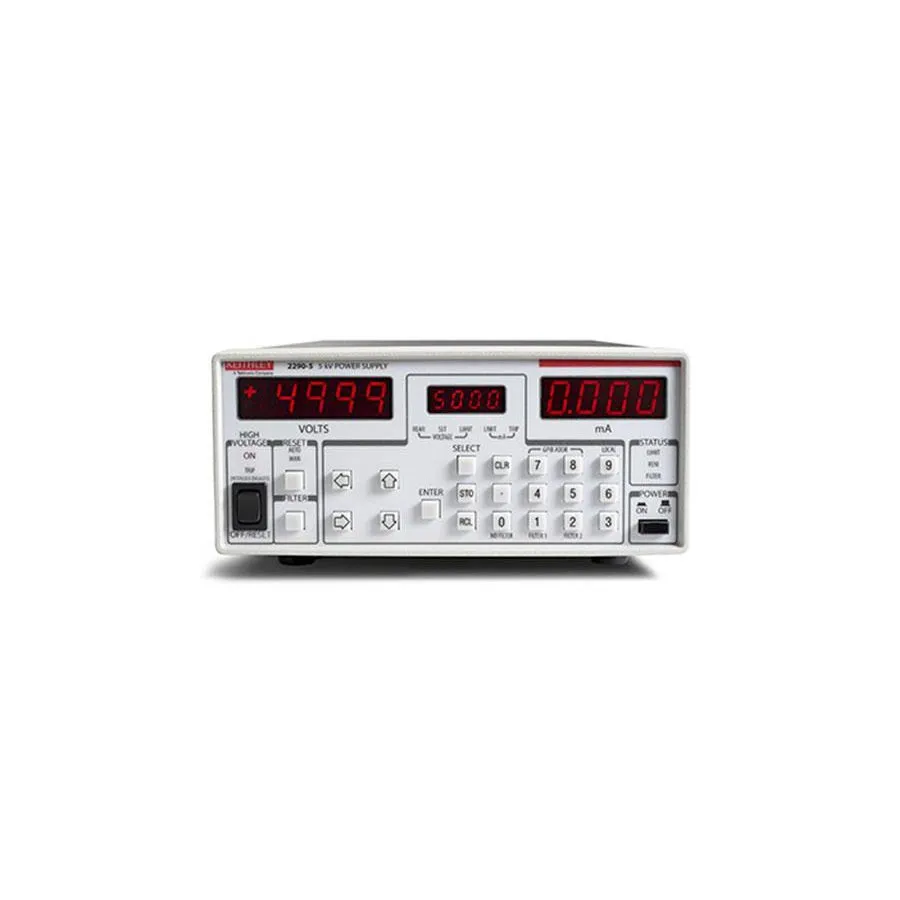

Keithley 2290-5 High-Voltage Power Supply
Request a quote
Keithley 2290-5 is a 5 kV high-voltage power supply with 5 mA output, 1 V voltage resolution, and IEEE-488 programmability for precision device testing.
Product details
| Model | 2290-5 |
| Manufacturer | Keithley |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keithley 2290-5 is a precision high-voltage power supply designed for non-destructive testing, material characterization, and high energy physics applications. It delivers output voltages up to 5,000 V with 5 mA maximum current capacity, making it suitable for testing semiconductors, insulators, and other components at elevated voltages.
Key Features
- Output voltage up to 5,000 V with 1 V resolution
- Output current up to 5 mA with 1 µA resolution
- Low output noise with selectable filters (less than 3 mV RMS)
- Safety interlock for test fixture protection
- IEEE-488 programmable interface for automated test systems
- Front panel keypad control for voltage, limits, and trip settings
- Analog control voltage input for remote programming
- Optional protection module to safeguard low-voltage measurement instruments
Applications
- High voltage device and component testing
- Material characterization and breakdown analysis
- Insulation resistance measurement
- High energy physics experiments
- Dielectric strength testing
Specifications
| Voltage Range Selector | 2000-10,000 |
| Output Voltage | 5 kV |
| Current Range Selector | 0-2.49 |
| Output Current | 0.005 A |
| Power Range Selector | 1-199 |
| Power Rating | 55 W |
| Mounting Type | Bench Top |
| Input Voltage | 120 VAC |
| Series | 2290 Series |
| Display | Digital |
| Interface | GPIB |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Low Noise |
