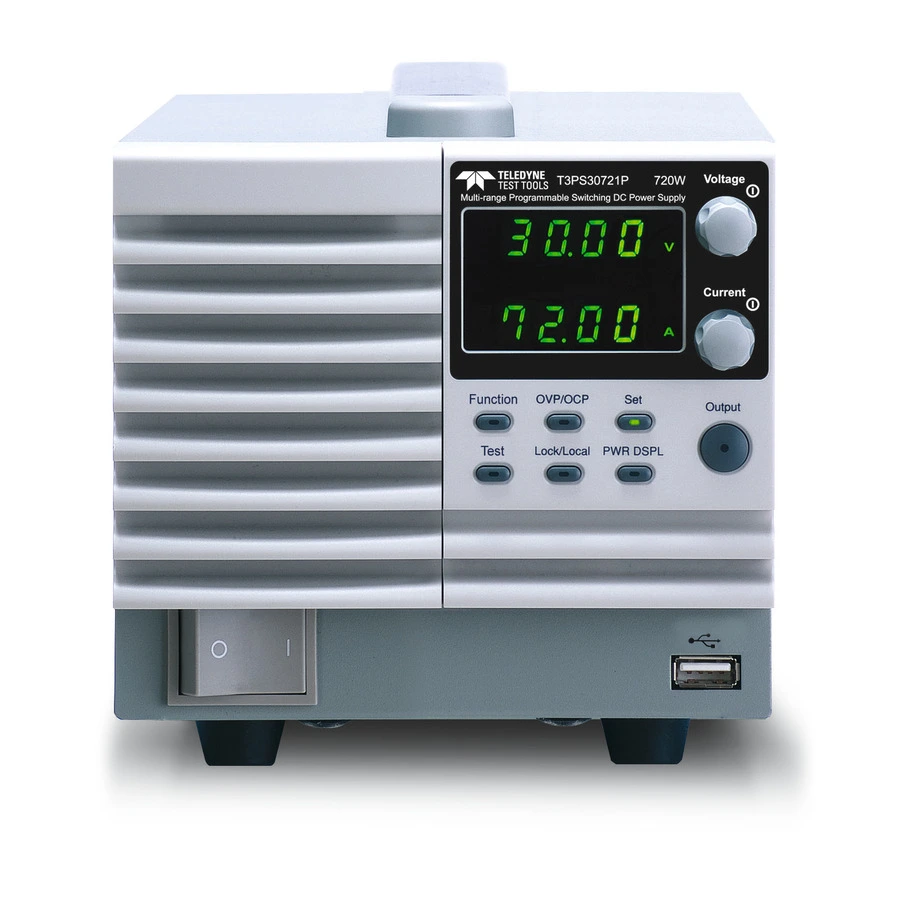

Teledyne LeCroy T3PS30721P Single Output DC Power Supply
Request a quote
Teledyne LeCroy T3PS30721P is a 720W single-output programmable DC supply with multi-range operation (0–30V/0–72A), adjustable slew rates, and series/parallel capability.
Product details
| Model | T3PS30721P |
| Manufacturer | Teledyne LeCroy |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3PS30721P is a single-output multi-range programmable switching DC power supply with a maximum power output of 720W and output range of 0–30V/0–72A. Its multi-range feature allows flexible configuration of voltage and current within the rated power range. Series and parallel operation of up to two and three units respectively enables voltage and current configurations beyond standard specifications.
Key Features
- Multi-range operation extends voltage and current capability up to 3 times compared to conventional supplies
- Adjustable slew rates for smooth voltage and current transitions
- Constant voltage and constant current operation modes
- Fully programmable via LAN and USB interface
- Overvoltage and overcurrent protection (OVP/OCP)
- External control and monitoring via rear panel connectors
- Series operation (up to 2 units) and parallel operation (up to 3 units)
- High efficiency with 1/6 or 1/3 rack mount form factor
Applications
- High-current testing and development
- Production testing and quality assurance
- Research and laboratory testing
Included Accessories
- M4 terminal screws and washers (2 sets)
- M8 terminal bolts, nuts, and washers (2 sets)
- Air filter
- Analog control protection dummy
- Analog control lock level
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 50-99.9 |
| Output Current | 72 A |
| Power Range Selector | 500-999 |
| Power Rating | 720 W |
| Mounting Type | Bench Top |
| Input Voltage | 265 VAC |
| Series | T3PS Series |
| Display | Digital |
| Interface | USB,LAN,Analog |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Multi Ranging, Switching |
