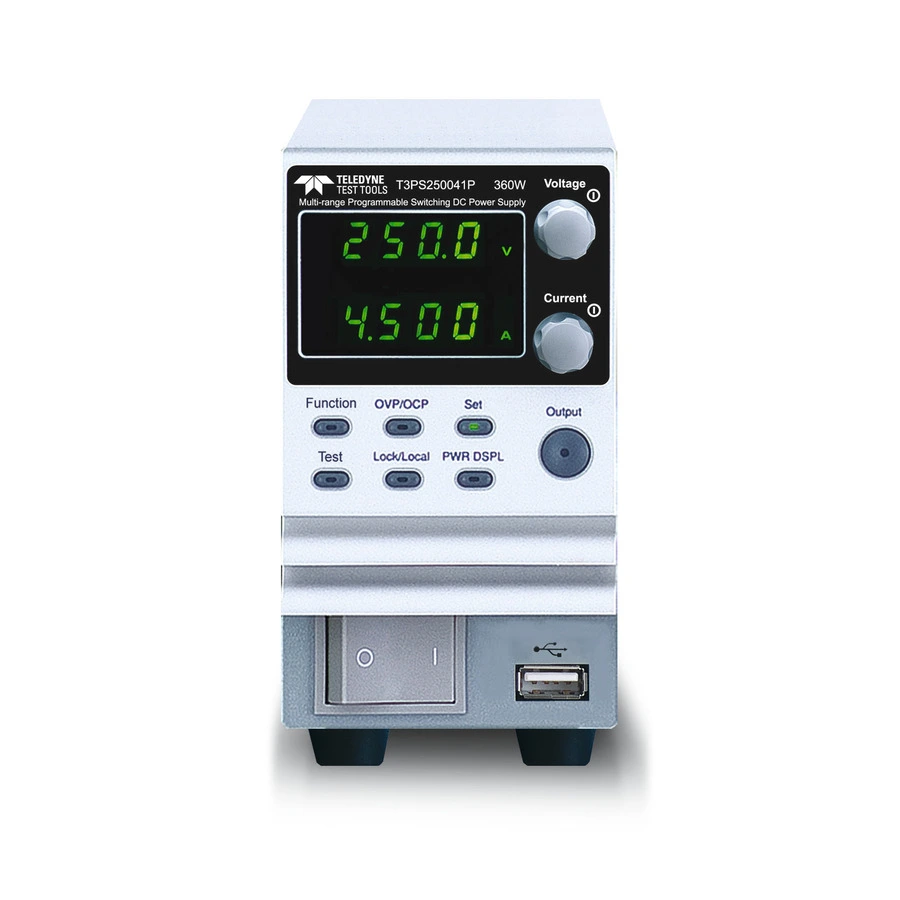

Teledyne LeCroy T3PS250041P Single Output DC Power Supply
Request a quote
Teledyne LeCroy T3PS250041P is a 360W single-output programmable DC power supply with 0–250V/0–4.5A multi-range operation and series/parallel capability.
Product details
| Model | T3PS250041P |
| Manufacturer | Teledyne LeCroy |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3PS250041P is a single-output multi-range programmable switching DC power supply with a maximum power output of 360W. It provides flexible configuration of voltage and current within the rated power range, with support for series and parallel operation to extend voltage and current beyond standard specifications.
Key Features
- Multi-range operation extends voltage and current capability up to 3 times compared to conventional supplies
- Adjustable slew rates for smooth voltage and current transitions
- Constant voltage and constant current operation modes
- Fully programmable via LAN and USB interface
- Overvoltage and overcurrent protection (OVP/OCP)
- External control and monitoring via rear panel
- Series operation (up to 2 units) and parallel operation (up to 3 units)
- High efficiency with compact 1/6 or 1/3 rack mount form factor
Applications
- Laboratory testing and development
- Production testing and quality assurance
- Research and educational use
Included Accessories
- Air filter
- Analog control protection dummy
- Analog control lock level
Specifications
| Voltage Range Selector | 200-299 |
| Output Voltage | 250 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 4.5 A |
| Power Range Selector | 200-499 |
| Power Rating | 360 W |
| Mounting Type | Bench Top |
| Input Voltage | 265 VAC |
| Series | T3PS Series |
| Display | Digital |
| Interface | USB,LAN,Analog |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Multi Ranging, Switching |
