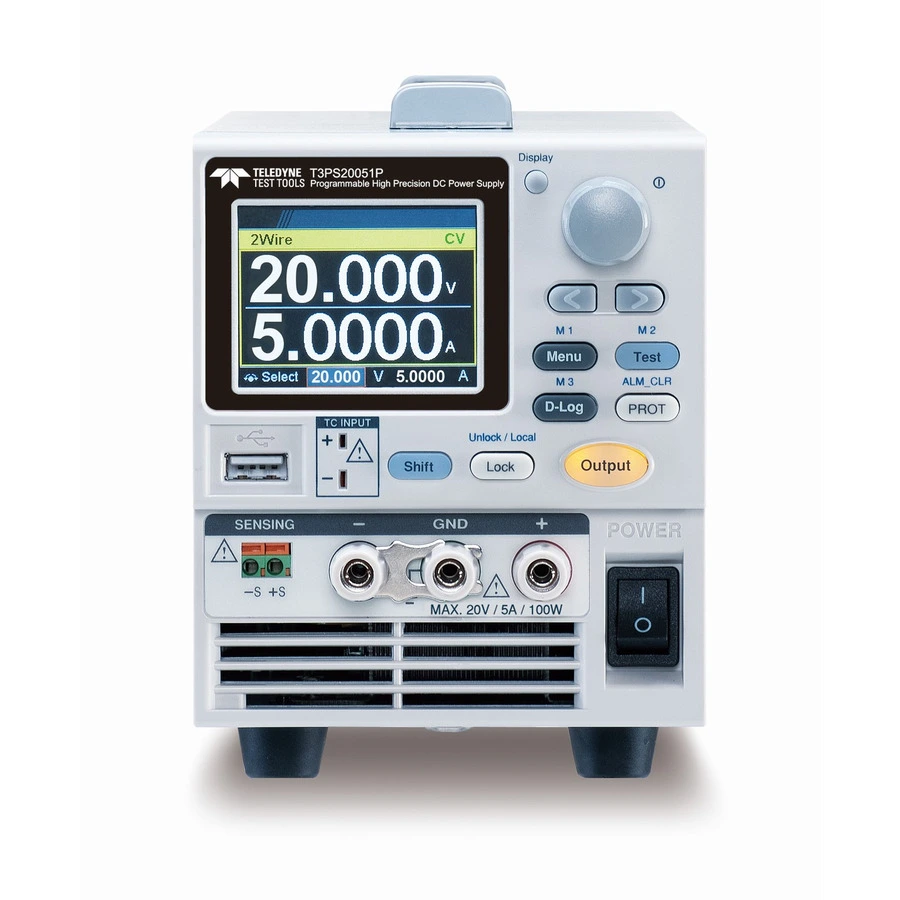

Teledyne LeCroy T3PS20051P High-Precision DC Power Supply

Overview

The Teledyne LeCroy T3PS20051P is a high-precision 100W DC power supply designed for low-power measurement applications including IoT devices, portable electronics, and wearable devices. It features four configurable current measurement ranges (0.1 µA to 0.1 mA), data logging capability, and integrated temperature measurement for comprehensive device characterization.

Key Features

• Four current measurement levels (0.1 µA, 1 µA, 10 µA, 0.1 mA) with high-precision voltage measurements (0.1 mV, 1 mV)
• Data logging function with USB storage for long-term measurement recording
• K-type thermocouple temperature measurement (-200°C to +1,372°C)
• Test Sequence function for custom output waveforms with adjustable rise/fall times
• Adjustable OCP (overcurrent protection) delay for flexible load protection
• Preset memory function for quick configuration recall
• Output ON/OFF delay function
• Constant voltage (CV) and constant current (CC) operation with priority start
• Adjustable voltage and current slew rates
• Overvoltage (OVP), overcurrent (OCP), AC alarm, and overtemperature (OTP) protection
• Selectable bleeder circuit to prevent over-discharging of batteries
• Web server monitoring and control via LAN
• Remote sensing for voltage drop compensation
• External analog control input
• Multiple communication interfaces: USB, RS-232, RS-485, and LAN

Applications

• IoT device power supply and characterization
• Portable and mobile device testing
• Wearable device measurement and validation
• Sensor component evaluation
• Low-power circuit research and development

Included Accessories

• Test leads for T3PS20051P (Binding Posts), 1 m, 10 A
• Short bar (Binding Posts)
• Test leads for T3PS20051P (European Type Jack), 1 m, 10 A
• Test leads for T3PS100011P (European Type Jack), 1 m, 3 A
• Ground lead (European Type Jack)
• Power cord (qty. 3)
