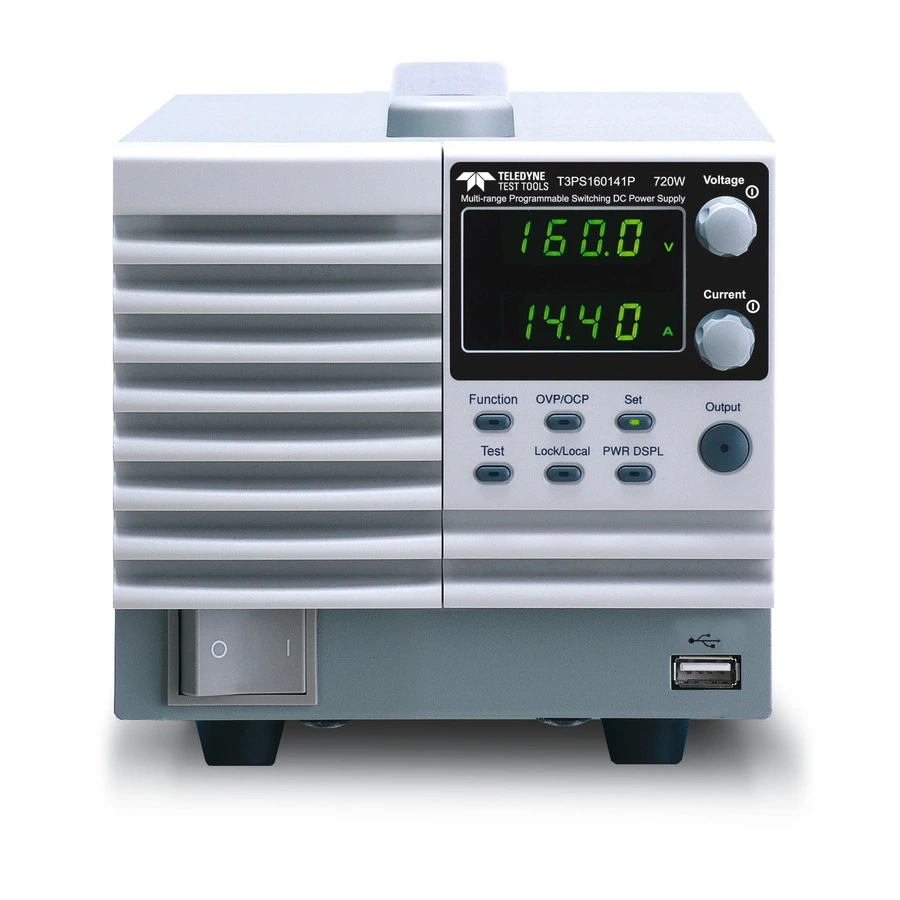

Teledyne LeCroy T3PS160141P DC Power Supply

Overview

The Teledyne LeCroy T3PS160141P is a 720W single-output multi-range programmable DC power supply in the T3PS series. It provides 0–160V and 0–14.4A output with high programming resolution (1 mV/0.1 mA), low output ripple noise, and fast transient recovery for demanding laboratory and industrial applications.

Key Features

• Multi-range operation extends voltage and current limits up to 3× compared to conventional supplies
• Adjustable slew rates for both voltage and current level transitions
• Constant voltage (CV) and constant current (CC) operation modes
• Fully programmable via LAN and USB interfaces
• Overvoltage protection (OVP) and overcurrent protection (OCP)
• Rear-panel external control and voltage/current monitoring
• Series/parallel operation support (up to 2 in series, 3 in parallel)
• High efficiency and power density design
• 1/6 and 1/3 rack mount size options (EIA/JIS standard)
• Low output ripple noise: ≤ 350 μVrms / ≤ 2 mArms
• Fast transient recovery: ≤ 50 μS

Applications

• Laboratory testing and measurement
• Product development and prototyping
• Component burn-in and stress testing
• Industrial and field applications

Included Accessories

• M4 terminal screws and washers (pair)
• M8 terminal bolts, nuts, and washers (pair)
• Air filter
• Analog control protection dummy plug
• Analog control lock level
